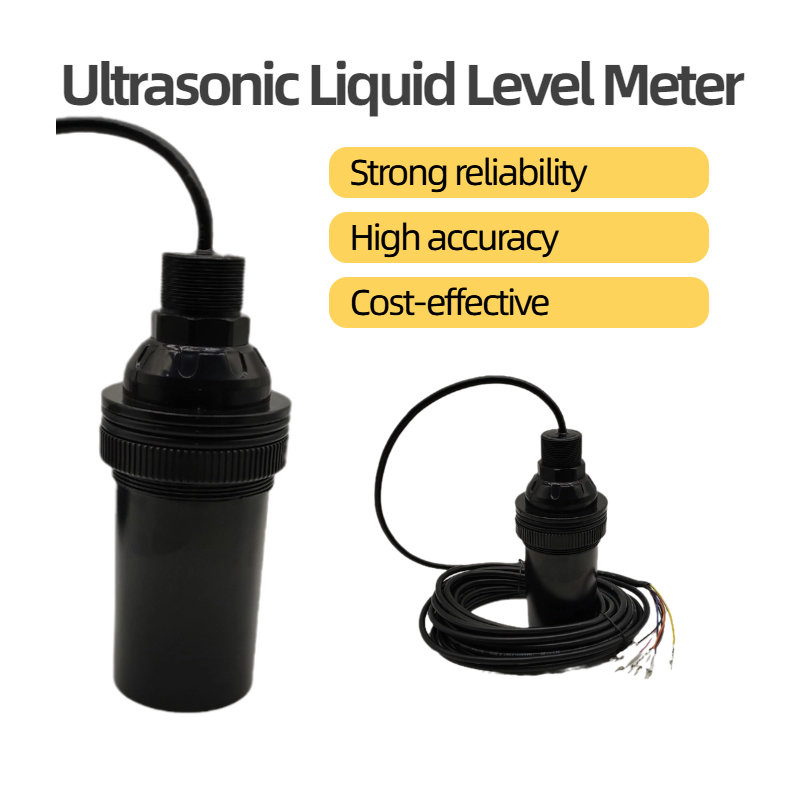

BOY-WR06-S ultrasonic liquid level meter

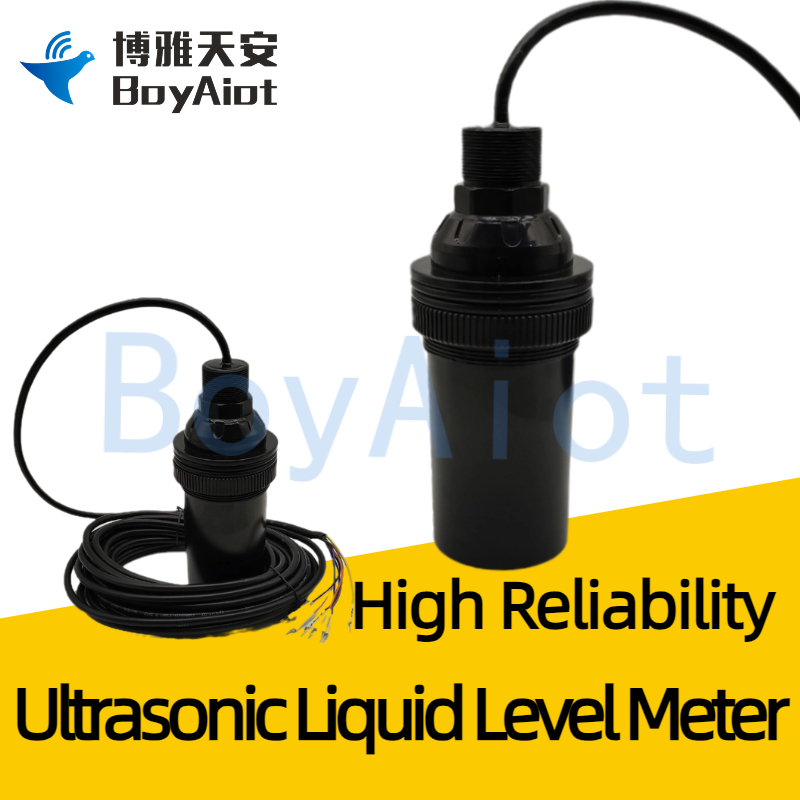

BOY-WR06-S ultrasonic liquid level meter

Level/water level sensor, non-contact measurement, high cost performance, high precision, easy to install
Product features:

1.Strong reliability, IP68 protection grade, high temperature resistance, corrosion resistance

2.High accuracy, non-contact measurement, built-in automatic calibration function

3.Cost-effective, up to 50 meters range, can meet a variety of installation conditions

Cellphone(Whatsapp/Wechat):
Mr. Lin: +86 13960777235
 technical consultation

▋ Video Description






▋ Product Description

        BOY-WR06-S ultrasonic liquid level meter adopts the principle of ultrasonic pulse for non-contact measurement. It is a non-contact liquid level measuring instrument with high reliability, high cost performance and easy installation and maintenance. It can meet the requirements of level measurement without touching the medium, integrates the functions of liquid level measurement, display, transmission and other functions, and the measured medium is almost unlimited. It can be widely used in urban inspection Wells, reservoirs and lakes, municipal engineering, metallurgy and chemical industry and other scenes to measure the height of various liquid and solid materials.



▋ Main Function


Function

Description

Water level collection

The water level is automatically collected based on the set collection period

Communication mode

RS485 communication mode is supported

Communication protocol

Supports Modbus communication protocol

Low-power operation

Supports low-power sleep mode

Class of protection

IP68 protection class


▋ Product Characteristics

       BOY-WR06-S ultrasonic level meter is a non-contact measuring equipment based on the principle of ultrasonic pulse. It has the characteristics of simple installation, high measurement accuracy, stability and reliability, and wide applicability.

azfb

kkx

xjbg

Easy to install

Strong reliability

High cost performance

Simple structure, small size, light weight, easy to install and maintain

IP68 protection grade, high temperature resistance, corrosion resistance

With a range of up to 50 meters, it can basically meet various installation conditions

kglxq

gwdx

syxg2

Strong anti-interference

High stability

Wide applicability

Built-in interference echo suppression function, stable operation in strong magnetic field environment

Not in contact with the measured liquid, low failure rate

It has nothing to do with the pressure, temperature, density, viscosity and corrosiveness of the measured medium


▋  Product Parameter

Water level parameter

Water level range

0 ~ 7/15/20 m or customized

Resolution

1cm

Measurement accuracy

±(1+S x 0.5%) cm

Measurement blind area

< 25 cm

Response time

≤ 5S

Interface type

Power interface

Industrial grade terminal interface with built-in power reverse protection and overcurrent/overvoltage protection

Serial port

1 group of RS485 ports

Data bits: 5, 6, 7, 8 bits

Stop bits: 1, 1.5, and 2

Check: none check, odd check, even check

Serial port rate: 1200-115200 BPS

Mains supply

Standard power supply

DC 12V

Power supply range

DC9-16V

Power dissipation

＜1W

Physical characteristics

Shell

Class IP68, enclosure and system securely isolated

Sensor size

φ54 mm, height 200 mm(excluding cables and mounting parts)

Sensor weight

About 650g(without mounting)

Environmental parameter

Storage temperature

-40 ° C to +80 ° C

Relative humidity

95%RH (no condensation)


▋ Product Size

1608175131140075

▋ Measurement Method

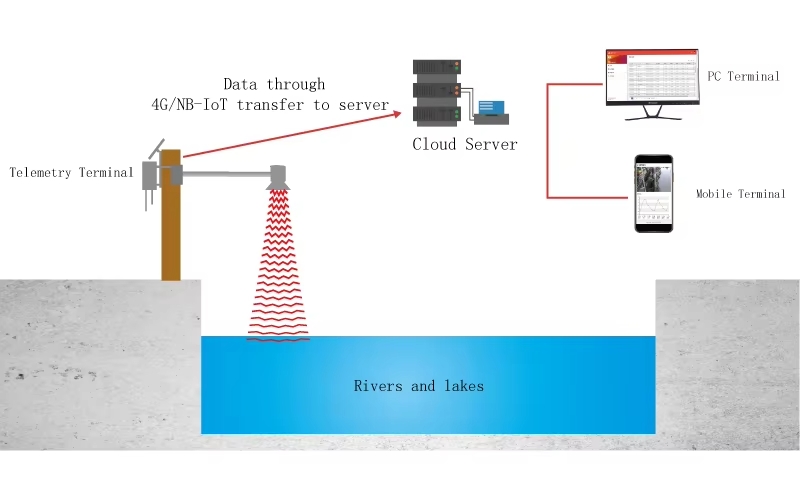

      BOY-WR06-S ultrasonic liquid level meter monitors the liquid level height in real time through the ultrasonic sensor, displays it locally in real time, and reports it to the cloud server through 4G/NB-IoT and other communication methods, providing data support for industry users' early warning scheduling and improving the remote monitoring capability of liquid level.

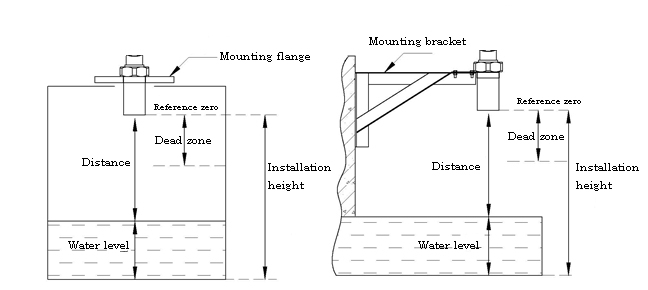

▋ Installation Method




▋ Application

        BOY-WR06-S ultrasonic level meter is a non-contact measuring equipment based on the principle of ultrasonic pulse. It is easy to install, high measuring precision, stable and reliable, and has wide applicability. Real-time monitoring of liquid level can be realized by fixing the bracket, built-in data transmission unit and lithium battery, which solves the cumbersome problem of on-site observation of liquid level. It is suitable for urban manhole, reservoir and lake, municipal engineering, metallurgy and chemical industry, etc., to realize the online measurement of the height of various liquid and solid materials.



▋ FAQ

1, equipment measurement principle?

A: The transducer (probe) emits a high-frequency ultrasonic pulse, which is reflected back to the surface of the measured medium, and part of the reflected echo is received by the same transducer and converted into an electrical signal.

2. What is the measuring accuracy of the equipment?

A: The measurement accuracy is not higher than 0.5%, such as 10 meters range, the accuracy is 5cm.

3. Can the equipment be waterproof? Will water flooding damage the equipment?

A: Can be waterproof, equipment IP68 protection level.

4. Device communication method? What communication protocols are supported?

A: Supports RS485 communication and Modbus communication.

5, equipment sampling frequency?

A: The device collects data every 15 seconds by default.

6. Does the device have cables?

A: Factory supporting 2 meters of cable.
