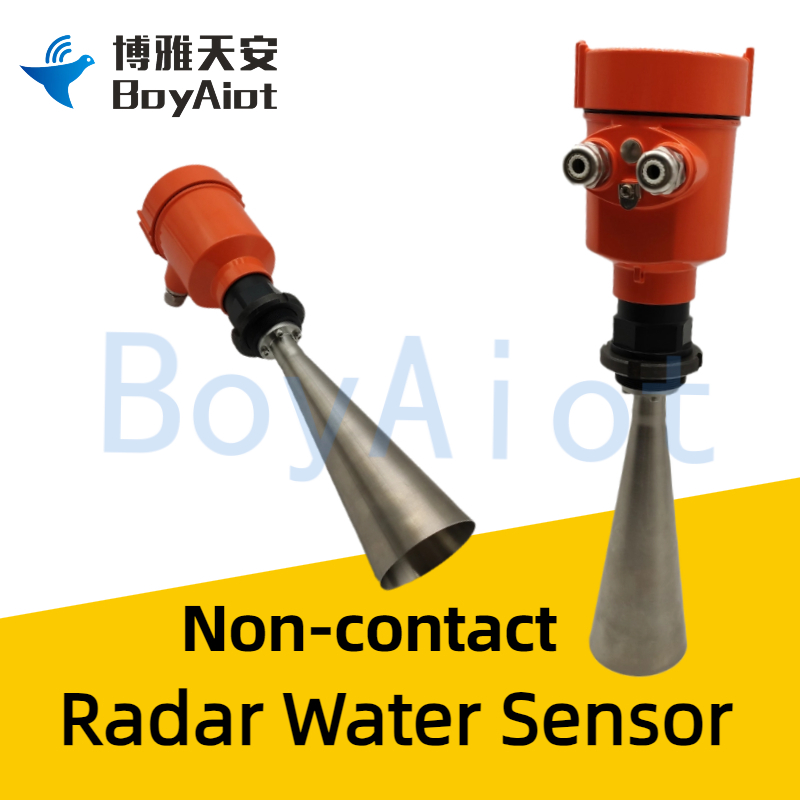

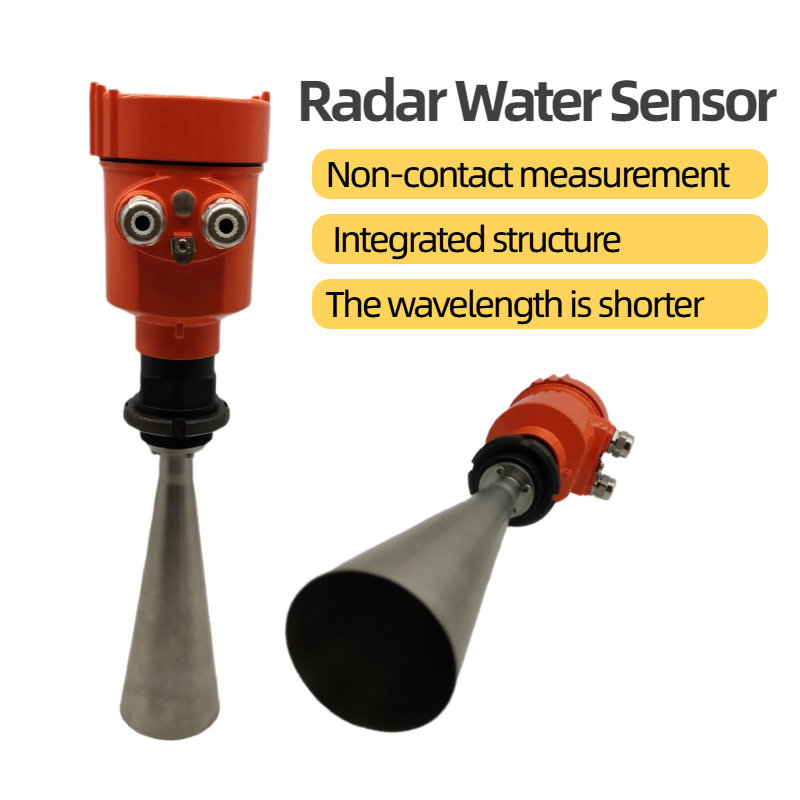

BOY-SW08-PU High frequency Radar Water Level meter

BOY-SW08-PU High frequency Radar Water Level meter

High precision, high range, high reliability, anti-interference, easy to install
Product features:

1.Non-contact measurement, no wear, no pollution

2.Integrated structure, small antenna size, easy to install

3.The wavelength is shorter, and it has a better effect on tilted solid surfaces

Cellphone(Whatsapp/Wechat):
Mr. Lin: +86 13960777235
 technical consultation

▋ Product Introduction

      The BOY-SW08-PU continuous and accurate water level monitoring can be achieved, especially the most ideal water level monitoring instrument for non-contact measurement. It has the advantages of easy installation and maintenance, high reliability, non-contact measurement and high compatibility.



▋ Main Function

       The BOY-SW08-PU high frequency radar water level meter uses microwave pulses to achieve continuous water level measurement. Water level meter adopts high frequency radar wave measurement technology, built-in temperature compensation, integrated serial communication channel and other functions. To provide customers with high-precision and reliable liquid level measurement solutions.


Function

Description

Water level collection

The water level is collected periodically based on the specified collection period

Communication mode

RS485 data transmission

Communication protocol

Supports Modbus communication protocol

Local configuration

Parameters such as basic device information and collection frequency are configured on the LCD

Class of protection

IP67, aluminum alloy housing


▋ Product Characteristics

        BOY-SW08-PU high frequency radar water level meter has the characteristics of high precision, high reliability, high stability, easy installation and wide applicability.


yjld

ythcx

fgfwg

Non-contact measurement

Integrated structure

Shorter wavelength

No wear, no pollution

The antenna is small in size and easy to install

Better effect on tilted solid surfaces

kglxq

gkkx2

gjd

Small beam Angle

IP67 protection rating

Millimeter measurement accuracy

Energy concentration helps to avoid distractions

Strong environmental adaptability, not affected by corrosion and foam

Unaffected by changes in water vapor, temperature and pressure

1609922973848114

1609923000931396

1610000595495056

High frequency

High signal-to-noise ratio

Strong penetration

Suitable for low dielectric constant material measurement

Fluctuating environments also provide better performance

Strong reliability, small measurement blind area


▋ Product Parameter


Transmitting frequency

26.3GHz

Measuring range

10 meters /30 meters /70 meters

Measurement resolution

1mm

Measurement accuracy

±10mm

Emission Angle

10°

Product size

97.5mm x 97.5mm x 497mm(excluding flanges)

Product connection

M45*2

Install

Francois

Antenna type

megaphone

Communication type

RS485

Relative humidity

Less than 95%RH

Storage temperature

-40~85℃

Power supply

16-36VDC (24VDC recommended)

Adjustment mode

128x64 dot array LCD, 4 keys

Electronic bin housing material

Aluminium alloy

Class of protection

IP67

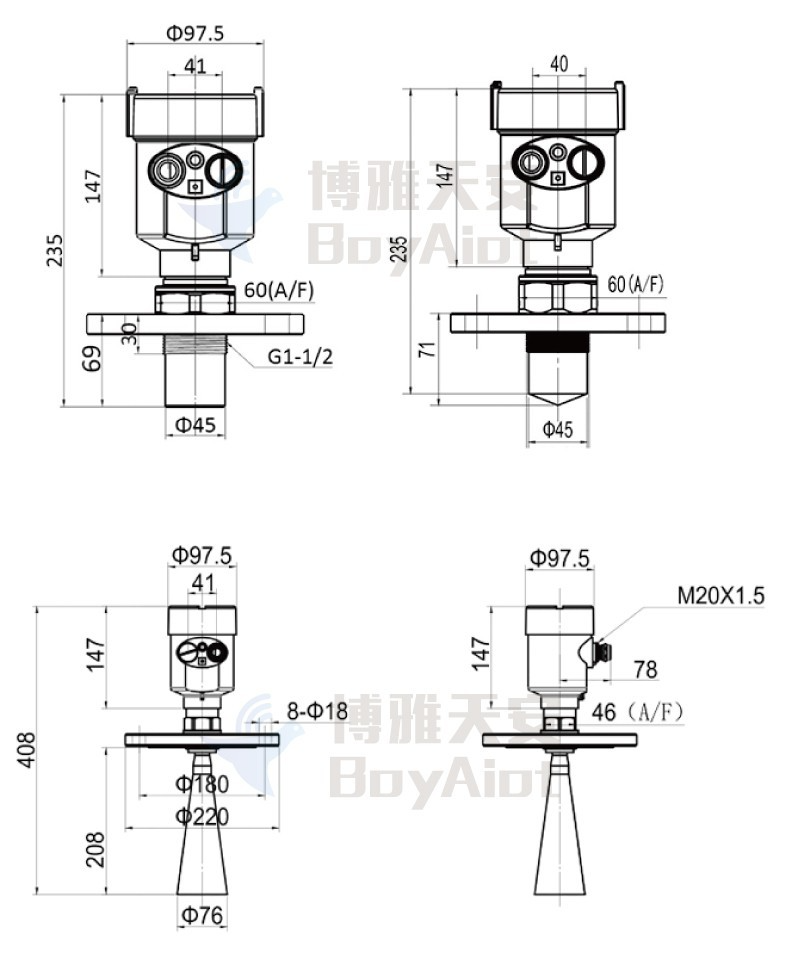

▋ Product Size


1608174901239868


▋ Measurement Method

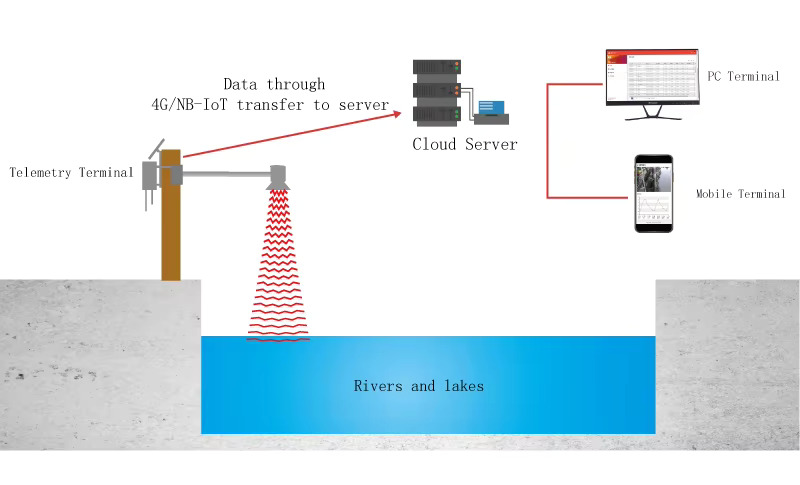

       BOY-SW08-PU high frequency radar water level meter is a kind of equipment that uses microwave pulse to measure water level. A measuring device that transmits and receives radar waves at the speed of light through an antenna and converts running time into water level signals. Mainly used for water level measurement in reservoirs, rivers, chemical industry, etc., the equipment is simple to install, high precision, and can well meet the needs of users for high precision and high stability of products.

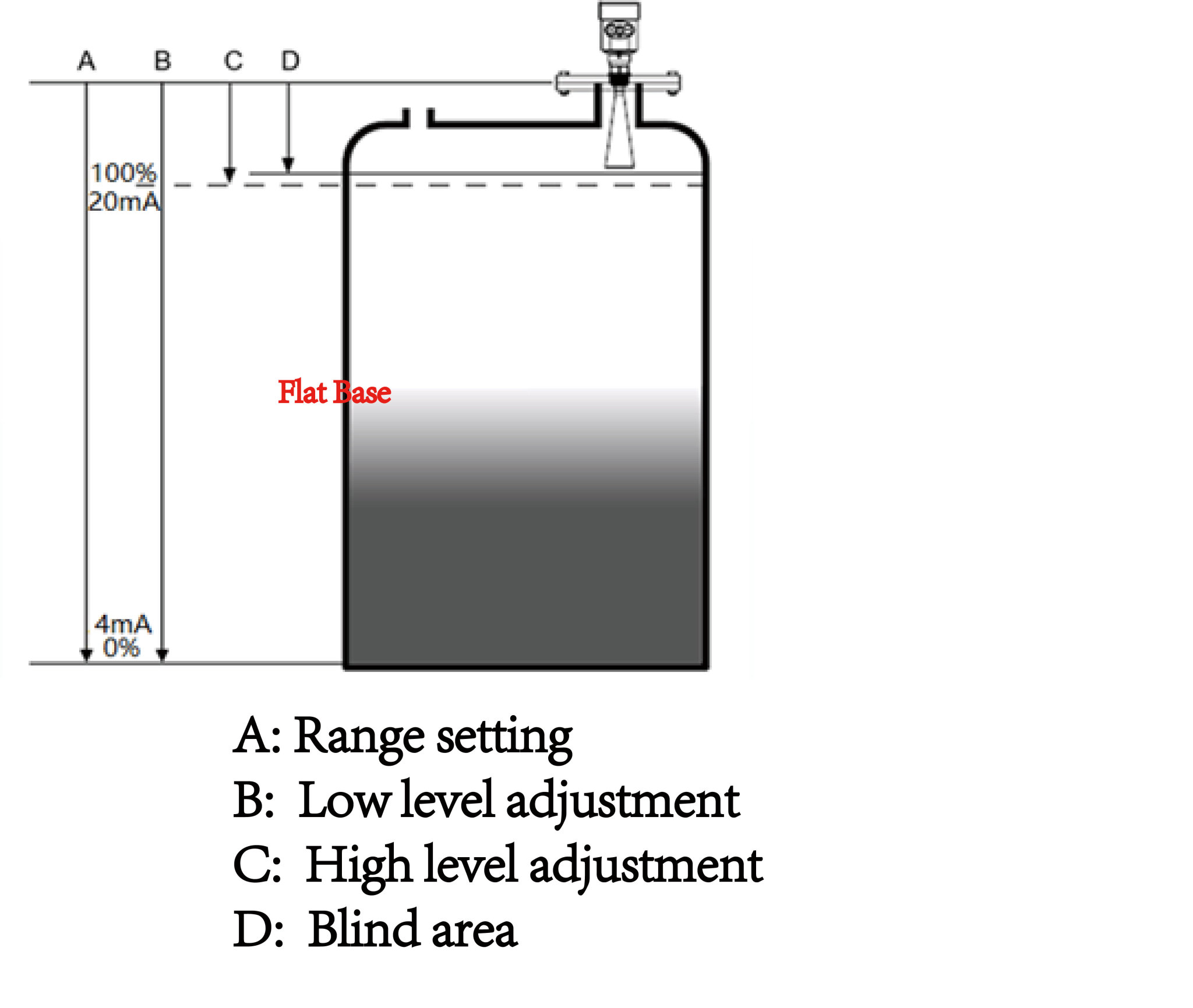

▋ Installation Method

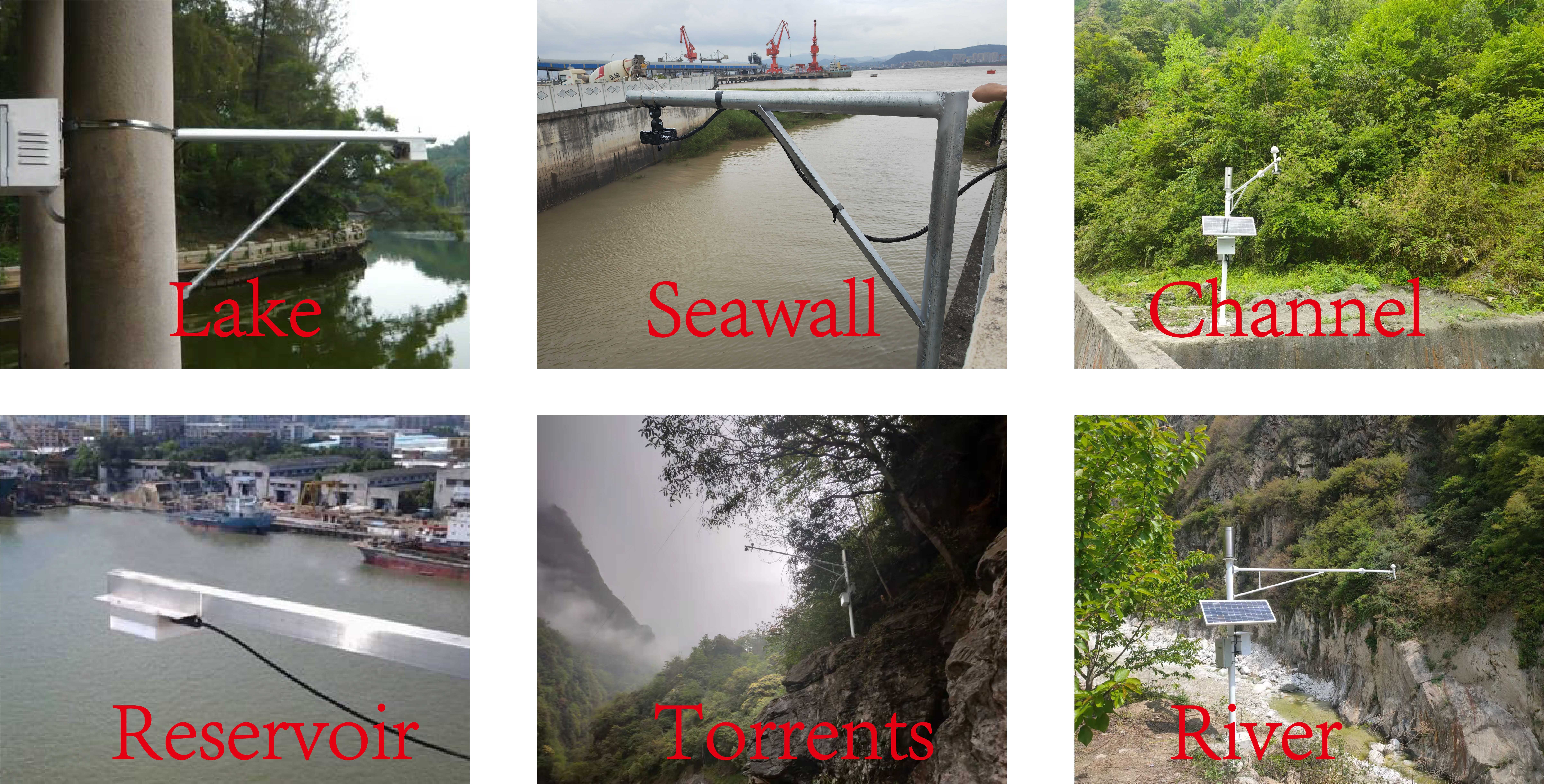

▋ Application

    BOY-SW08-PU high frequency radar water level meter meets the continuous accurate measurement of water level (level), especially suitable for mobile water bodies, small and medium-sized rivers, reservoirs and corrosive chemical industry, metallurgy and other industrial water level measurement occasions.



▋ FAQ


1. Can the equipment be waterproof? Will water flooding damage the equipment?

A: Can be waterproof, equipment IP68 protection level.

2. How to install the equipment?

A: The device is installed 40cm away from the support surface through the support bracket to ensure that the device is installed horizontally and the antenna is 10 degrees down.

3. the measured value is obviously distorted?

A: It may be because the antenna is scarred, and the thick and wet condensate strongly reflects the microwave, and the attachment of the antenna attachment needs to be cleaned.

4. Fluctuations in measured values?

A: It may be caused by the drastic fluctuation of the surface of the measured medium. In addition to improving the application parameters, the installation position of the equipment should also be checked, or larger specifications of the antenna should be considered.

5.Is there a measurement error in the radar level meter of the bypass tube?

A: Because there are burrs, welding slag and attached impurities on the wall of the bypass pipe, there is a false echo signal that can be detected, causing the radar level meter to show false level. The bypass pipe can be cleaned and frosted.

6.winter radar level meter antenna condensate or ice how to do?

A: In addition to regular inspection and cleaning, it is recommended to install insulation and heat tracing devices on the outside of the radar level gauge to keep the temperature near the tank mouth basically constant.
