BOY-SW08-FM02 Radar Water Level Gauge

BOY-SW08-FM02 Radar Water Level Gauge

High precision, high range and easy to install
Product features:

1.Non-contact measurement, no wear, no pollution

2.Integrated structure, small antenna size, easy to install

Cellphone(Whatsapp/Wechat):
Mr. Lin: +86 13960777235
 technical consultation

▋ Video Description




▋ Product Description

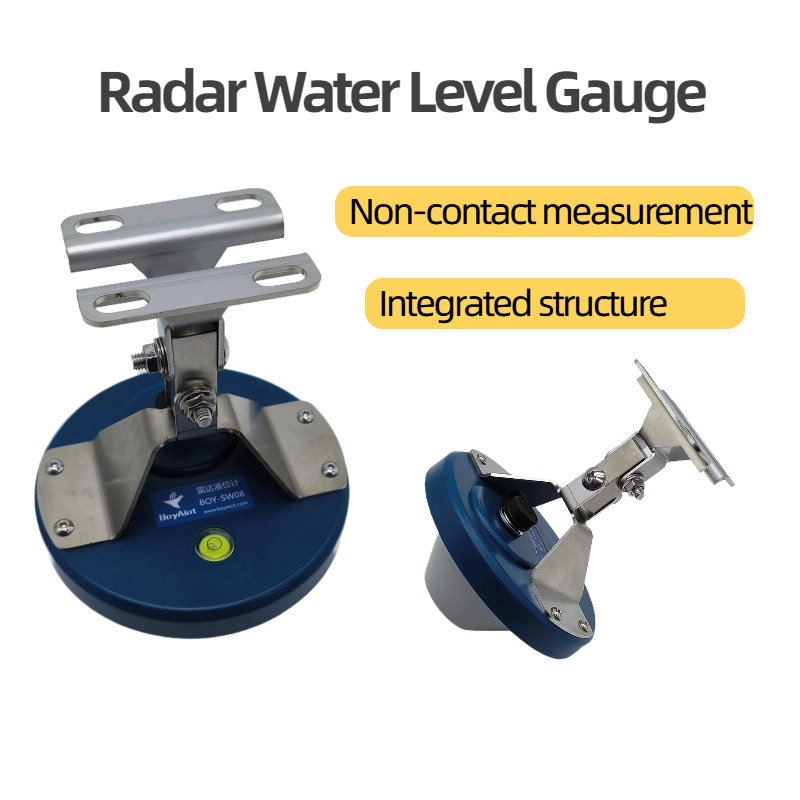

       The BOY-SW08-FM02 radar level sensor using radar wave to measure water level, it is a non-contact measuring equipment. A measuring device that transmits and receives radar waves at the speed of light through an antenna and converts running time into water level signals. It is mainly used to measure the water level of open channels such as reservoirs, cisterns and sewage ponds, and provide real-time water level data for relevant units.




▋ Main Function

        BOY-SW08-FM02 Radar water level meter adopts 60GHz high frequency radar wave measurement technology, built-in temperature compensation, integrated serial communication and other functions.


 Function

Description

Water level collection

The water level is collected periodically at the specified period

Communication mode

RS485

Communication protocol

Modbus RTU

Local configuration

Support through the wechat mini program, Bluetooth connection to the device parameter Settings

Class of protection

IP68


▋ Product Characteristics

        BOY-SW08-FM02 radar water level gauge has the characteristics of high precision, high reliability, high stability, easy installation and wide applicability.


0a5c5874-ed4d-402b-912b-668042a0bfb4

2

31

Non-contact measurement

Integrated structure

Shorter wavelength

No wear, no pollution

The antenna is small in size and easy to install

Better effect on tilted solid surfaces

4

5

61

Small beam Angle

IP68 protection class

Millimeter measurement accuracy

Energy concentration helps to avoid distractions

Strong environmental adaptability, not affected by corrosion and foam

Unaffected by changes in water vapor, temperature and pressure

7

8

9

High frequency

High signal-to-noise ratio

Large range small blind area

Suitable for low dielectric constant material measurement

Fluctuating environments also provide better performance

Strong reliability, small measurement blind area


▋     Product Parameter


Transmitting frequency

60GHz

Measuring range

0.02m-50m

Measurement resolution

1mm

Measurement accuracy

±3mm

Antenna pattern

Lens antenna

Communication type

RS485

Process temperature

-40 ~85℃

Power dissipation

Average ≤8mA@DC12V

Housing material

Engineering plastics

Class of protection

IP68

Operating voltage range

5V - 28V DC

Dead zone

0.02m


▋     Measurement Method

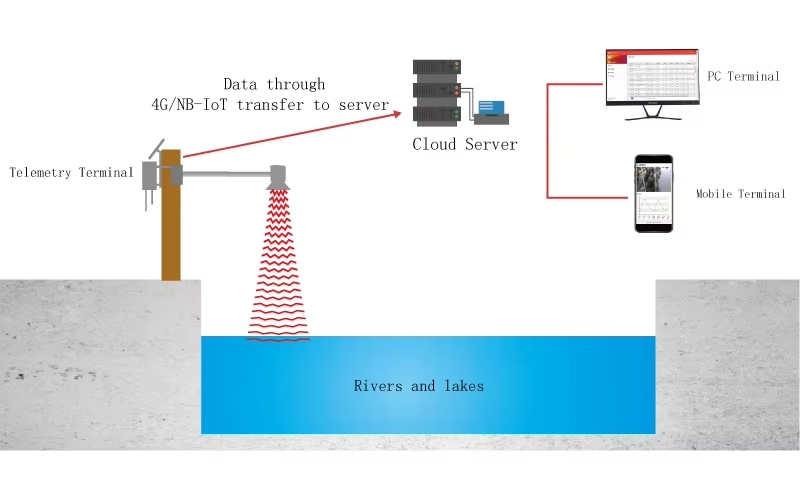

       The BOY-SW08-FM05 radar water level meter is a measuring device that transmits and receives radar waves through the speed of light and converts the running time into the water level signal. The device is connected to the host through RS485, and provides wireless signals such as 4G to send measurement data to the server, providing data support for background decision-making.


▋    Installation Method

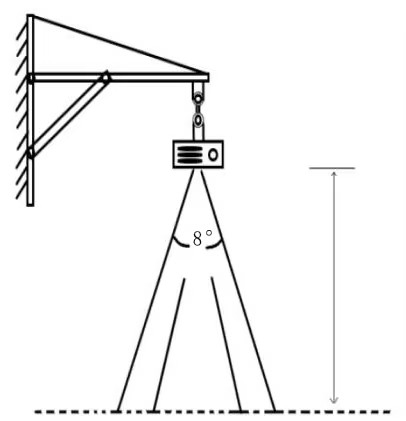

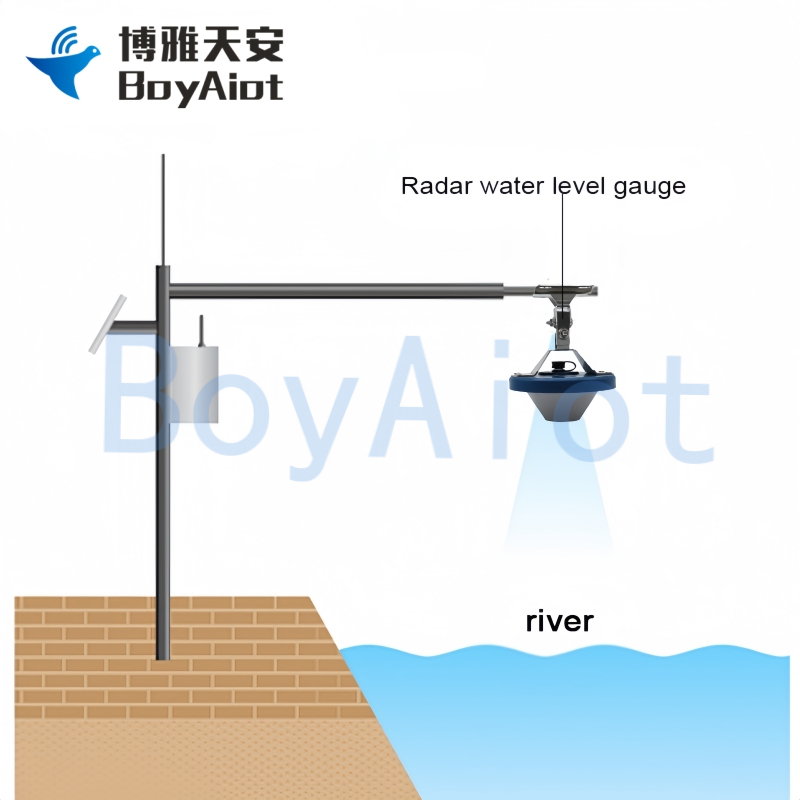

    The device is mounted with a bracket and adjusted horizontally according to the horizontal bubbles on the device. Universal joint support is povided with the product


▋ Application

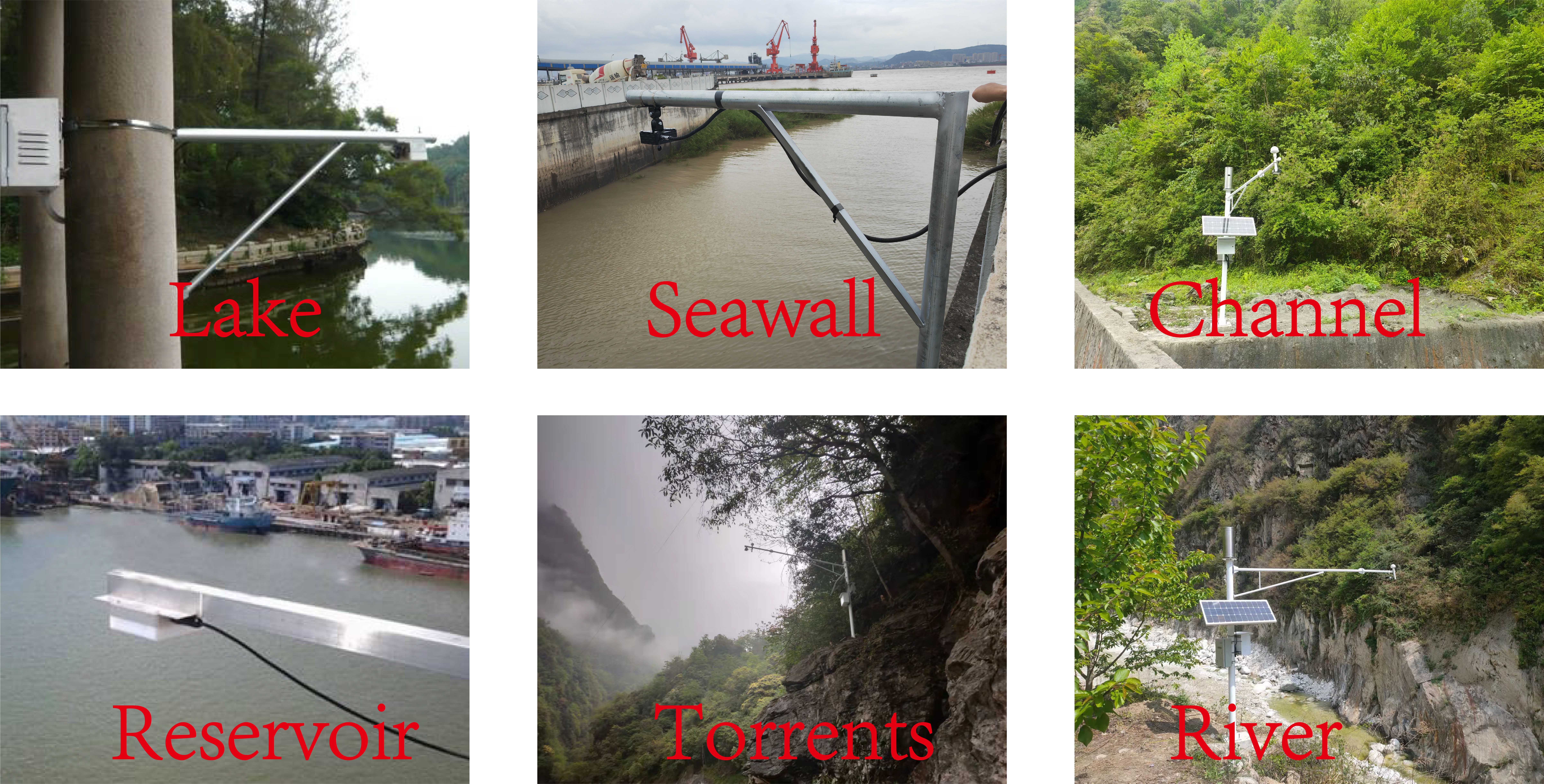

       BOY-SW08-FM02 radar type water level meter meets the continuous accurate measurement of water level (level), especially suitable for mobile water bodies, small and medium-sized rivers, reservoirs and corrosive chemical industry, metallurgy and other industrial water level measurement occasions.



▋ FAQ


1. Can the equipment be waterproof? Will water flooding damage the equipment?

A: Can be waterproof, equipment IP68 protection level.

2. How to install the equipment?

A: The device is installed 40cm away from the support surface through the support bracket to ensure that the device is installed horizontally and the antenna is 10 degrees down.

3. the measured value is obviously distorted?

A: It may be because the antenna is scarred, and the thick and wet condensate strongly reflects the microwave, and the attachment of the antenna attachment needs to be cleaned.

4. Fluctuations in measured values?

A: It may be caused by the drastic fluctuation of the surface of the measured medium. In addition to improving the application parameters, the installation position of the equipment should also be checked, or larger specifications of the antenna should be considered.

5.Is there a measurement error in the radar level meter of the bypass tube?

A: Because there are burrs, welding slag and attached impurities on the wall of the bypass pipe, there is a false echo signal that can be detected, causing the radar level meter to show false level. The bypass pipe can be cleaned and frosted.

6.winter radar level meter antenna condensate or ice how to do?

A: In addition to regular inspection and cleaning, it is recommended to install insulation and heat tracing devices on the outside of the radar level gauge to keep the temperature near the tank mouth basically constant.
