BOY-WR03 Buried Level Monitor

BOY-WR03 Buried Level Monitor

High precision, high reliability, low power consumption, anti-interference, easy to install
Product features:

1.Not limited by the field terrain space, the equipment can be installed in the appropriate water points, collect the most effective point data

2.The detection end adopts buried installation, without the construction of vertical bars, wall and other projects, to reduce construction costs

3. Integrated multi-sensor, collecting liquid level data is free from external interference such as vehicles, silt and waves

Cellphone(Whatsapp/Wechat):
Mr. Lin: +86 13960777235
 technical consultation

▋ Product Description

      Buried liquid level monitor, using buried installation, not limited by terrain; It is mainly used in the field of urban waterlogging water monitoring, which can real-time monitor the water situation of low-lying sections, and realize cloud platform monitoring and early warning through Internet of Things technology.




▋ Main Function


Function

Description

Water detection

Intelligent sensors detect the status of water, no water collection

Water level collection

Collection period Periodic collection of water level, water level measuring range of 2 meter

Intelligent acquisition

Automatic control of multiple collection frequency, the higher the water level, the more frequent the collection

Data storage

store the accumulated water data for more than 5 years, power failure data is not lost

LED linkage

Can control the field LED induction screen warning indication

Image capture

Can control the scene camera to take pictures and report

Data transmission

Data transmission via LoRa/NB-IoT/4G

Data feed automatically

Water level data changes, automatically report

Data is automatically reissued

Ensure data integrity

Remote parameter control

Supports local and remote parameter setting, data extraction, upgrade, and Bluetooth wireless configuration

Bluetooth communication

Built-in Bluetooth Bluetooth communication, can achieve on-site Bluetooth debugging

Low-power operation

Supports the low-power hibernation mode, and the default standby mode is 3 to 5 years


▋ Product Characteristics


        BOY-WR03 buried liquid level monitor is developed for urban waterlogging problem, combined with many years of urban disaster prevention and mitigation experience and urban water characteristics. It has the characteristics of small size, water monitoring when buried in the road surface, small construction scale, small impact on the urban landscape and high measurement accuracy.


Integrated molding

Intelligent acquisition

Flexible networking

The 304 stainless steel housing is rugged and takes only half an hour to install

Multiple acquisition frequency intelligent control, the higher the water level, the more frequent the collection

Data communication via 4G/NB-LOT/LoRa is supported

Big data storage

Long standby

Remote controlRemote control

The 304 stainless steel housing is rugged and takes only half an hour to install

Built-in large capacity lithium battery, standby for 5 years

Remote parameter setting, data extraction and remote upgrade

▋ Product Parameter


Hardware system

Processor

32-bit ARM Cortex-M4 processor core

Data storage

16MB

Wireless parameter

Wireless module

Industrial grade wireless module

Standards and frequency bands

Support: FDD-LTE, TDD-LTE, CDMA2000/EVDO, WCDMA, TD-SCDMA, GPRS/EDGE

Optional single mode, multi-mode or full network communication

Theoretical bandwidth

FDD-LTE: downstream speed 150Mbps, upstream speed 50Mbps

TDD-LTE: 61Mbps downstream and 18Mbps upstream

WCDMA: downstream rate 42Mbps, upstream rate 5.76Mbps

TD-SCDMA: downstream rate is 2.8Mbps, upstream rate is 2.2Mbps

CDMA2000/EVDO: downstream rate is 3.1Mbps, upstream rate is 1.8Mbps

GPRS/EDGE: 171.2kbps/384kbps

Transmitting power

≤24dBm

Receiving sensitivity

≤109dBm

LoRa parameter

Standards and frequency bands

438MHz

Underwater communication distance

100 m

Open communication distance

3.5km

Transmitting power

+20dBm

Receiving sensitivity

-139dBm@LoRaTM and 62.5

-136dBm@LoRaTM and 125Khz&SF=12&293bps

-118dBm@LoRaTM and 125Khz&SF=6&9380bps

-123dBm@FSK&5Khz and 1.2Kbps

-117dBm@FSK&5Khz and 4.8Kbps

-110dBm@FSK&20Khz and 38.4Kbps

Data rate

1.2K ~ 300Kbps@FSK

0.018K ~ 37.5 kbp@lorATM

Water level parameter

Water level range

2m

Resolution

1mm

Measurement accuracy

0.5%

Interface type

Power interface

Industrial grade terminal interface with built-in power reverse protection and overcurrent/overvoltage protection

Serial port

1 Group of RS232 ports

1 group of RS485 ports

Data bits: 5, 6, 7, 8 bits

Stop bits: 1, 1.5, and 2

Check: none check, odd check, even check

Serial port rate: 1200-11520 BPS

Application interface

1 set of analog input interfaces

12-bit AD, supports 4-20mA current signal and 0-5V voltage signal

LoRa communication

Built-in Lora communication module

LED control interface

1 set of LED control interface

Camera interface

1 set of image camera data interface

Network interface

1 set of RJ45 Ethernet ports (optional)

Bluetooth interface

Bluetooth communication: Built-in Bluetooth communication module

USIM Card interface

Standard self-propelled Micro Sim card holder with 1.8V/3V USIM card and built-in 15KV ESD protection

Antenna interface

2 standard SMA negative antenna interfaces, characteristic impedance 50 Ohm

Mains supply

Standard power supply

DC3.6V

Battery

Built-in DC3.6V/52000mAh lithium battery

Charge management

Built-in charging module, support solar panel floating charge power supply

Power supply range

DC3.3.-5V

Physical characteristics

Shell

Detector: Stainless steel, protection class IP68, housing and system safety isolation Monitoring host: Aluminum alloy, protection class IP65, housing and system safety isolation

Overall dimension

Detector: Φ164mm, height 134mm (not including antenna and mounting parts)

Monitoring host: 206 × 174 × 66 mm (excluding antenna and mounting parts)

Weight

Detector: Approx. 1400g (not including antenna, mounting and packaging)

Monitor host: approx. 1250g (not including antenna, mounting parts and packaging)

Environmental parameter

Operating temperature

-25℃ ~ +60℃

Storage temperature

-35℃ to +70℃

Relative humidity

95%RH (no condensation)


▋ Product Size


1638926359375518


▋ Measurement Method

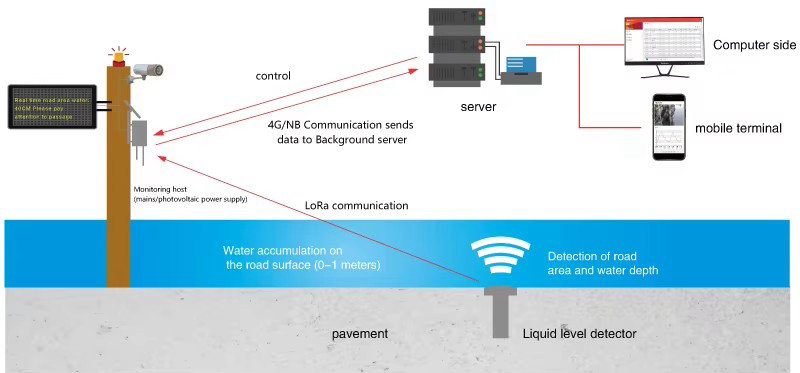

        BOY-WR03 buried level monitor monitors the depth of ground water through the water detector, and reports it to the cloud server through built-in GPRS/4G/NB-IoT communication methods, providing data support for industry users' command and decision-making, and improving urban hydrological monitoring capabilities. At the same time, it can be transmitted to the nearby monitoring host for on-site early warning instructions through LoRa communication.



▋ Installation Method


▋ Application

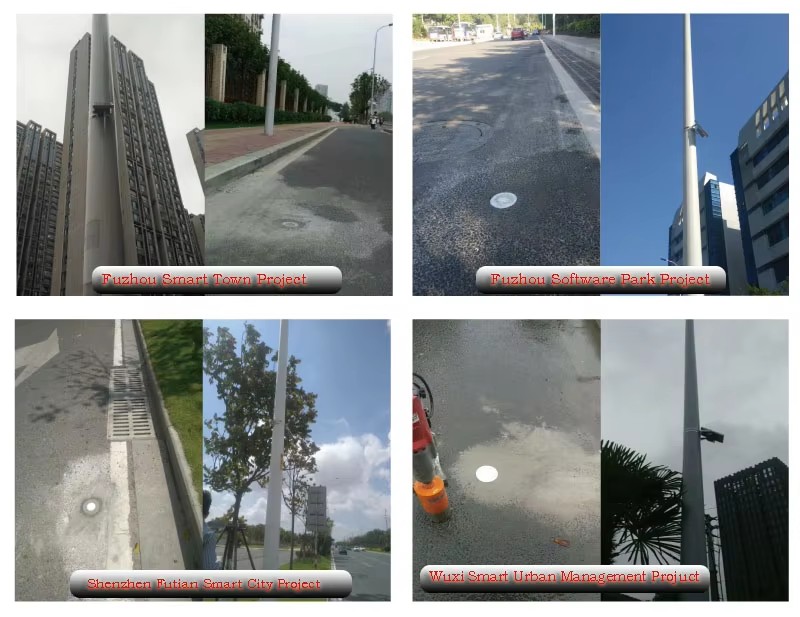

        BOY-WR03 buried liquid level monitor is small in size, embedded in the road surface can achieve water monitoring, solve the complicated problems of urban construction, can be integrated with roads, Bridges and other projects, especially suitable for urban road water monitoring, can obtain accurate waterlogging monitoring data in the first time. Suitable for: municipal drainage monitoring, highway traffic, meteorological observation, smart urban management, flood control and drainage and other real-time monitoring scenarios.

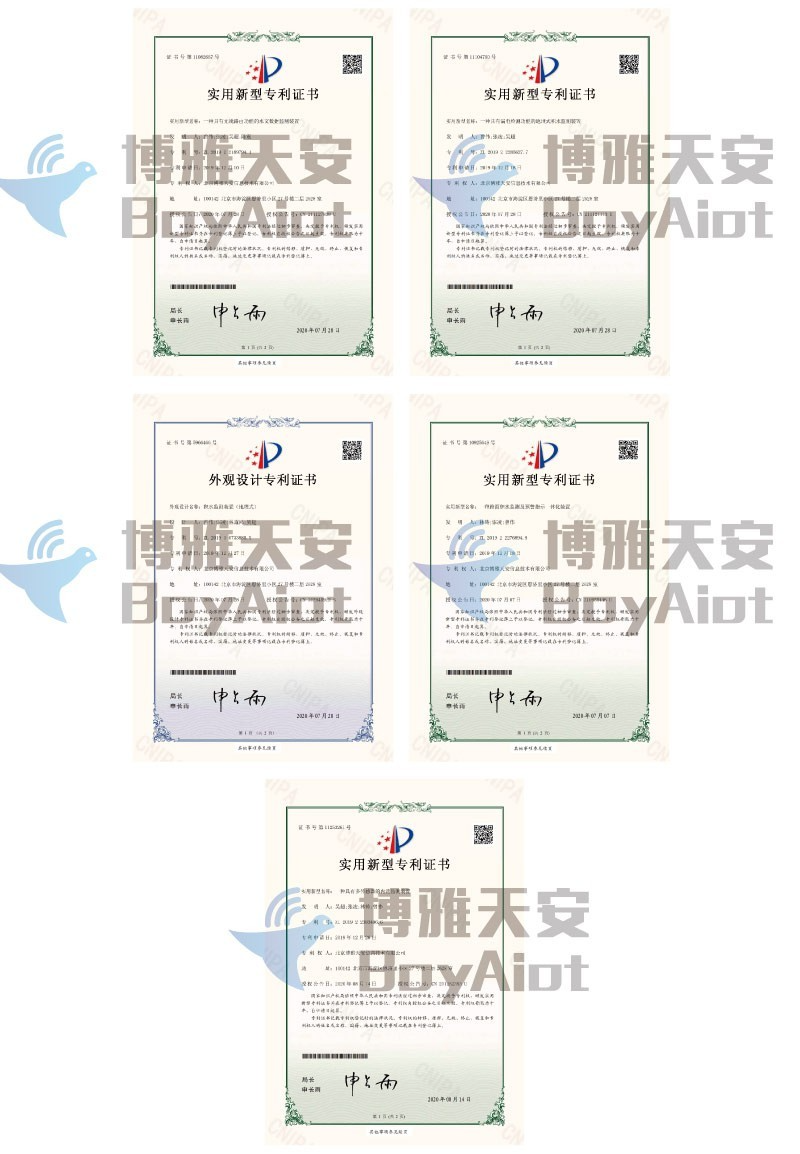

▋ Product Qualification


1598336257276672

▋ FAQ

1. How do devices communicate?

LoRa communication is adopted between the detection terminal and the monitoring host, and the monitoring host reports to the server through 4G.

2. How often does the device send data?

By default, the system collects data every 15 minutes when there is no water accumulation, reports one data every hour, and collects and reports one data every 5 minutes when there is water accumulation to the server. You can also flexibly set the sending interval based on actual requirements.

3. How to power the equipment? How long does it take to replace the battery?

Detection end built-in lithium battery 39000mAh, the default rule of continuous operation for 5 years to replace the battery; Monitoring host built-in 20000mAh battery, at the same time through the mains and solar panels (standard 3W solar panels) continuous charging, in rainy days solar charging conditions, can work for more than 15 days

4, the detector is covered by sand, will it affect the measurement?

Sediment less than 5mm can work normally.

5. How to install the equipment?

The installation is simple. Drill a 150mm hole into the ground with the hole punch used to install the air conditioner, bury the detection end, and fill it with cement. The monitoring host is fixed on the light pole within 100 meters of the attachment through the hoop, and install one point for about half an hour.

6. Will the detector be crushed by the vehicle?

No, the equipment uses an integrated stainless steel structure, fixed by cement, directly stressed on the ground, the equipment itself is not stressed.
