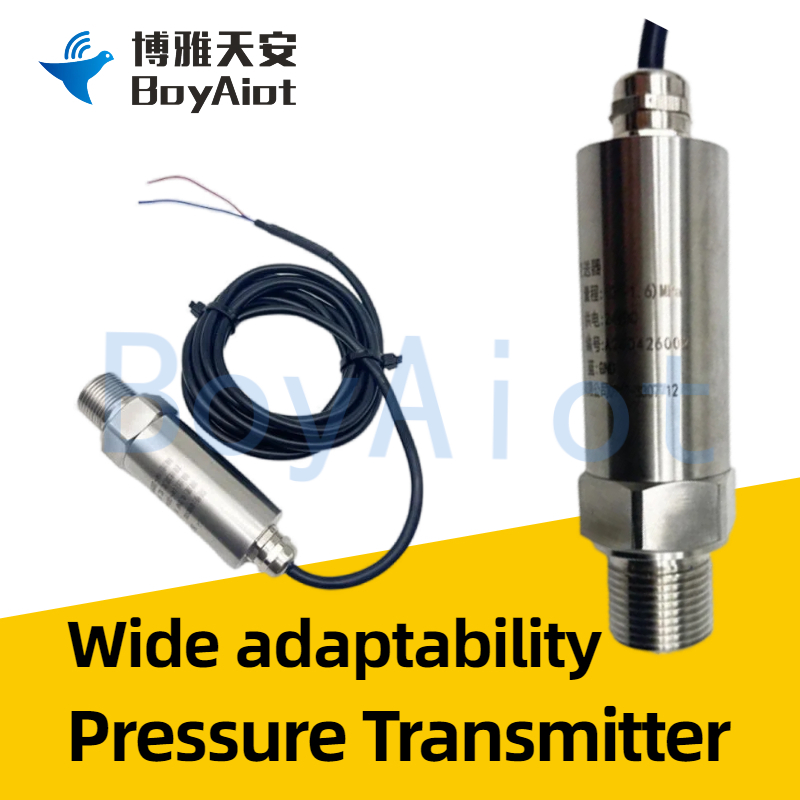

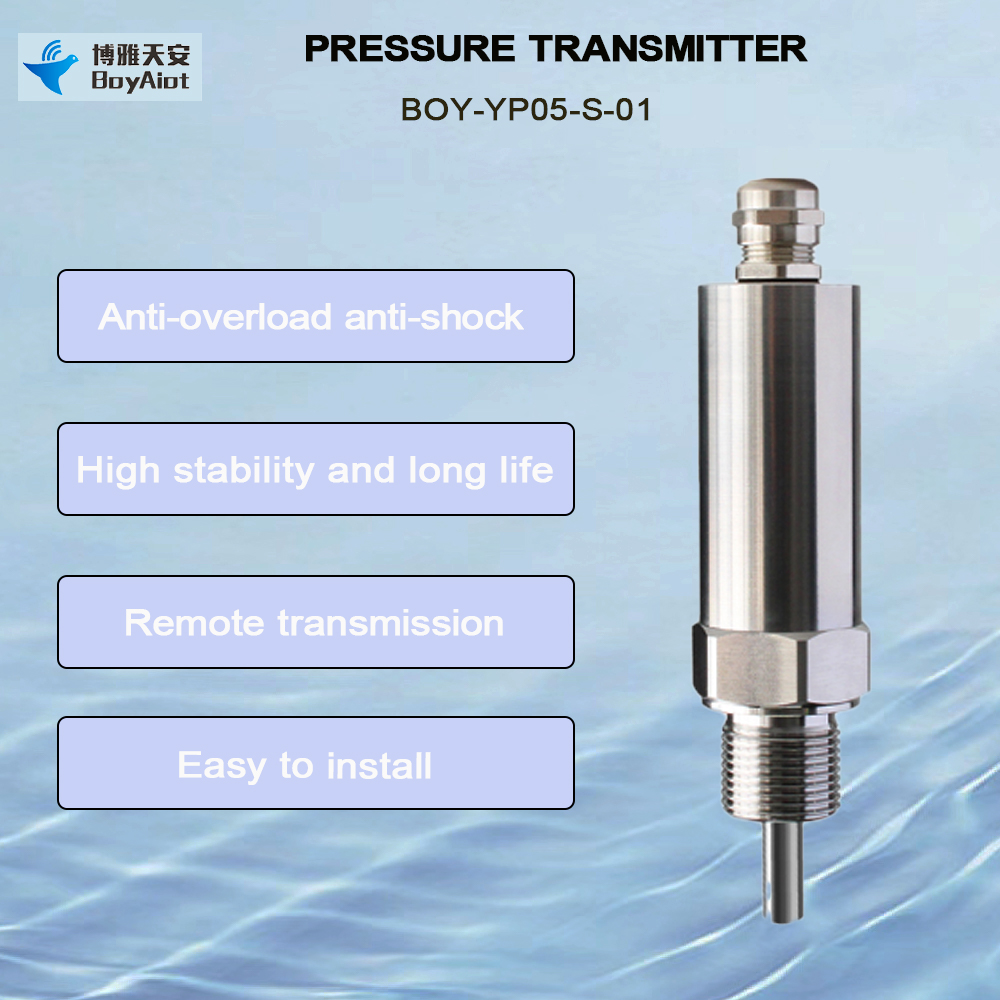

BOY-YP05-S-01 pressure transmitter

BOY-YP05-S-01 pressure transmitter

Product features:

1. Strong anti-interference, diaphragm isolation technology, intercept frequency design.

2. Wide adaptability, integrated chip, wide voltage power supply, current and voltage limiting protection.

3. Cost-effective, small structure, easy to install.

Cellphone(Whatsapp/Wechat):
Mr. Lin: +86 13960777235
 technical consultation

▋ Product Description

         BOY-YP05-S-01 pressure transmitter adopts the diffused silicon pressure core as the sensitive element, chooses the all-digital circuit, the overall performance is stable and reliable, and can carry out long-distance signal transmission. Products can be widely used in gas, hydraulic, environmental protection, medical and other industries.

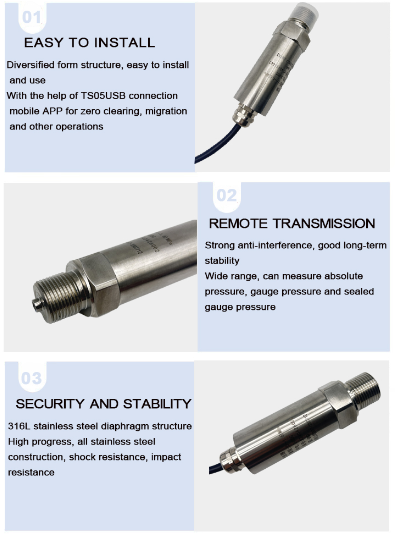

▋ Product Characteristics



▋ Product Parameter



Parameter
Description
Measuring medium
Liquid or gas (compatible with contact materials)
Measuring range
-0.1 ~ 0~100MPa
Accuracy class
≤±0.25%FS
Storage temperature -40 ~ 85℃
Ambient temperature
-10℃ ~ 80℃
Stability
±0.2% FS/ year
Overload capacity
150%
Temperature drift
±0.02%FS/ C
Power range
24V±20%
Protection level
 IP65
Relative humidity
≤80%

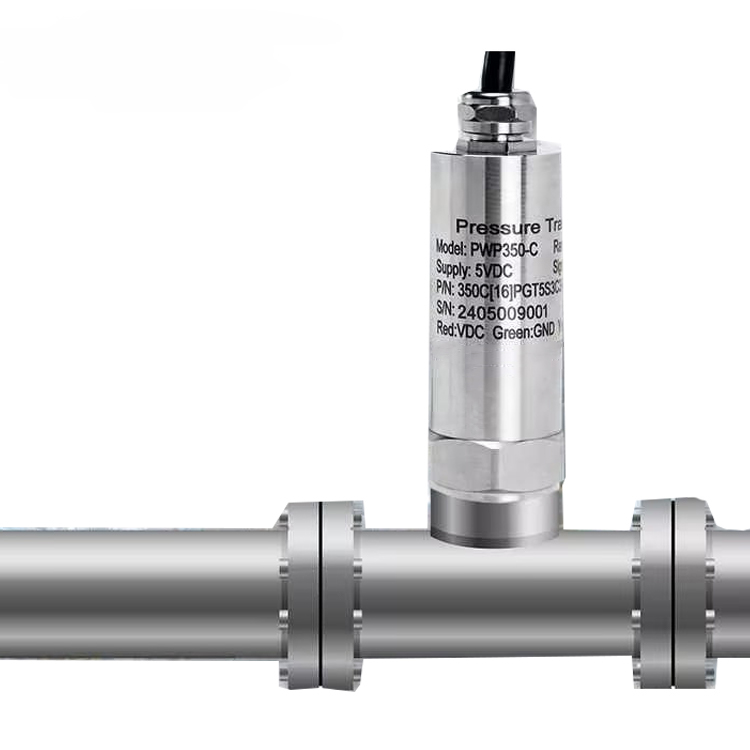

▋ Installation Method

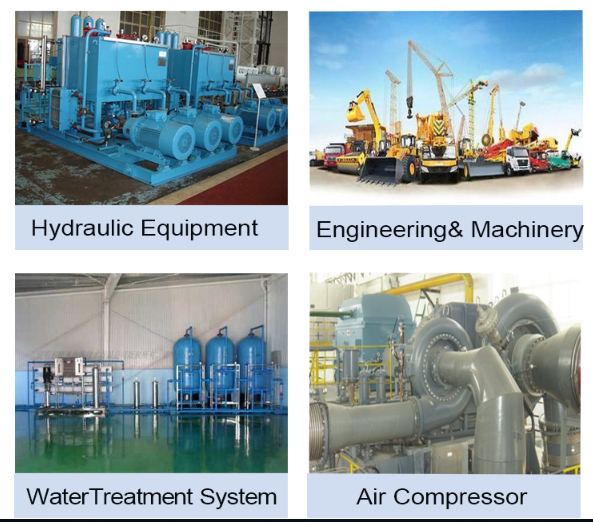

▋ Application


▋ FAQ

1. No output is displayed

First check whether the power supply is normal and whether the power cable is properly connected. If the power supply is normal, further check the measurement circuit and output signal to determine whether there is an open or short circuit. If there is no problem with the above checks, the pressure sensing element may be damaged and needs to be replaced.

2. The output is abnormal

It may be due to blockage or corrosion of the pressure sensing element. At this time, it is necessary to check the installation position of the transmitter and the measurement medium to ensure that no impurities and particles enter the measurement chamber. At the same time, check whether the temperature and viscosity of the measured medium are within the normal range.

3. Zero offset

Zero offset means that the output value of the pressure transmitter is not zero under no pressure. This may be due to improper adjustment of the measurement circuit or accumulation of errors in the sensing element. For this fault, it is necessary to readjust the zero position and range of the measuring circuit, and calibrate the sensing element.

4. Range drift

Range drift means that the output value of the pressure transmitter changes over time, which may be due to aging of the pressure sensing element and temperature drift. For this kind of failure, the transmitter needs to be calibrated and maintained regularly, and attention is paid to the temperature changes in the environment in which it is used.
