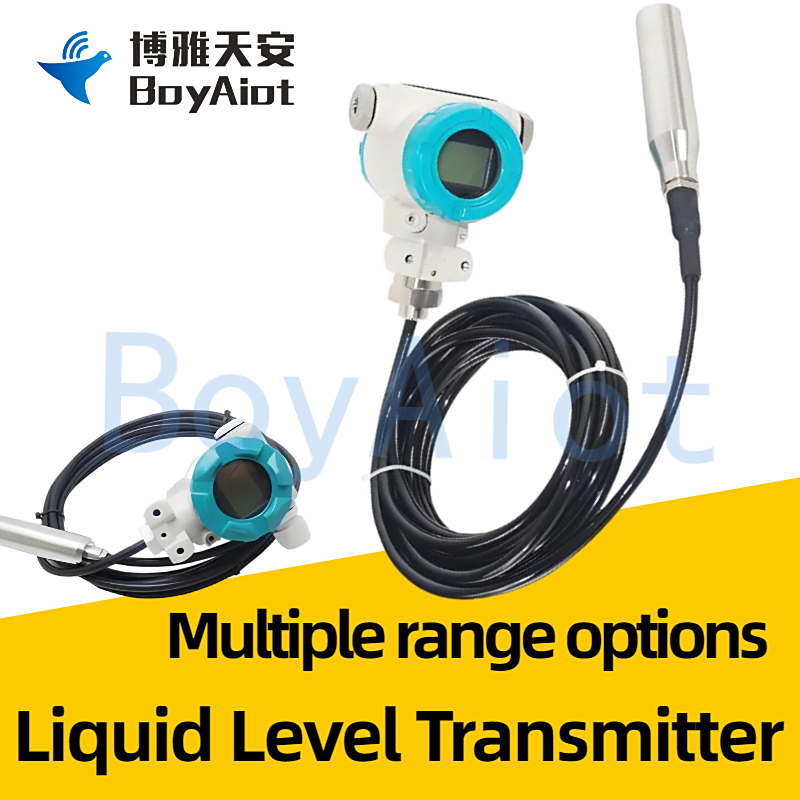

BOY-WR04-B3 Liquid Level Transmitter

BOY-WR04-B3 Liquid Level Transmitter

Product features:

1. Multiple range options; Digital pressure display;

2. Zero point and range debugging is convenient;

3. Reverse polarity protection and current limiting protection;

4. Anti-lightning, anti-impact; Intrinsically safe and explosion-proof;

Cellphone(Whatsapp/Wechat):
Mr. Lin: +86 13960777235
 technical consultation

▋ Product Description

      The liquid level transmitter adopts imported sensor pressure sensitive element, temperature compensation by computer laser resistance adjustment, and integrated junction box design. With special terminal and digital display, easy installation, calibration and maintenance. This series of products is suitable for petroleum, water conservancy, chemical industry, metallurgy, electric power, light industry, scientific research, environmental protection and other enterprises and institutions, to achieve the measurement of liquid level height and suitable for all kinds of occasions all-weather environment and various corrosive fluids.



▋ Product Parameter


ParameterFunction
Range of scaleCable type 0~100mH₂O Armor 0~3m H₂O
Accuracy class0~3m  H₂O
Overload0.5%F.S
Pressure type Gauge pressure Stability150%
Power supply voltage≤0.1%/year
Display mode24V DC/220VOAC
The value ranges from0.56 "digital tube
Response timefrom-1999 to 9999
Ambient temperature<30ms
Relative humidity-20~70℃
Interface material304 stainless steel

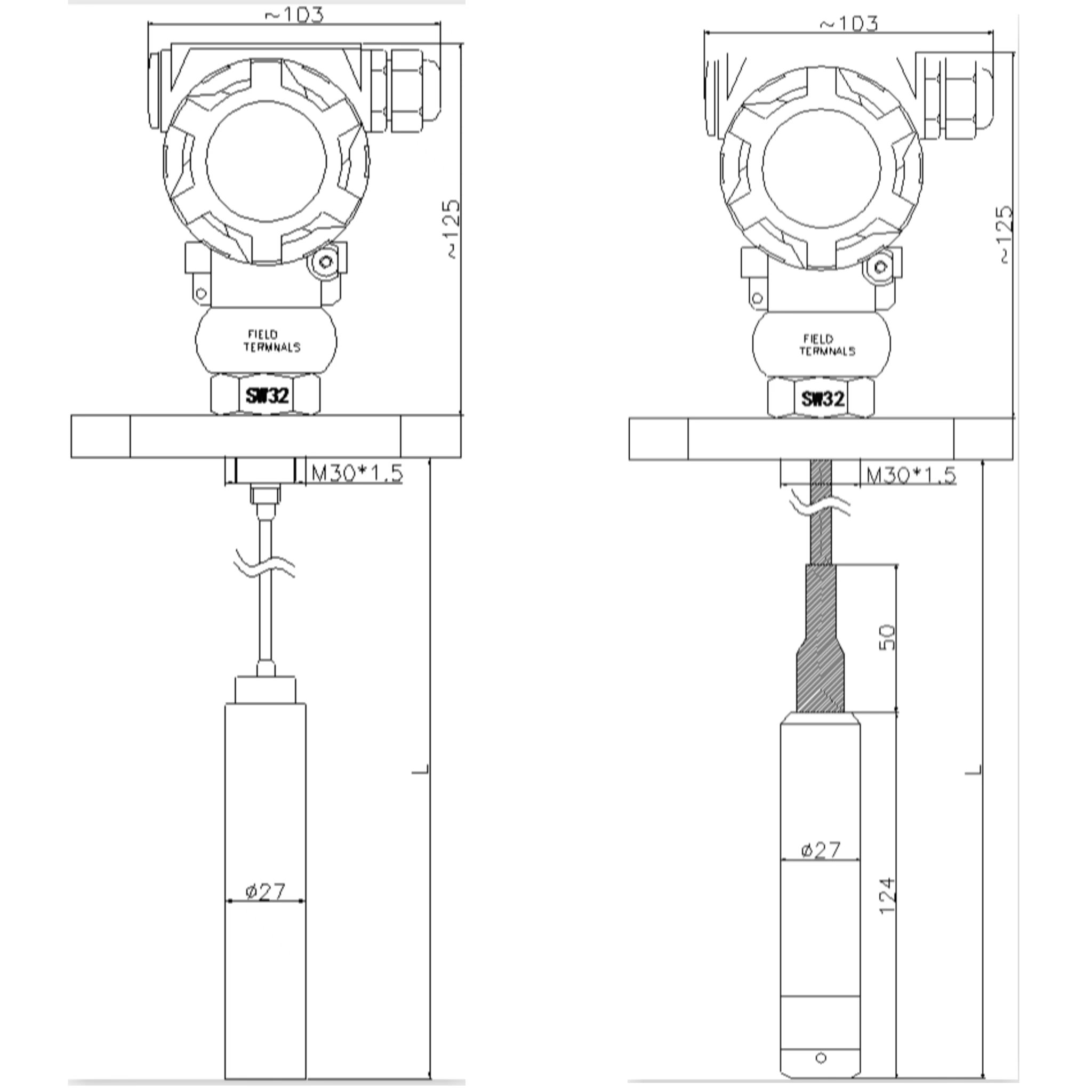

▋ Product Size


▋ Installation Method


1. Confirm the installation location to ensure that the transmitter can be installed stably and protected from vibration and shock.

2. Connect cables correctly according to the wiring diagram, and pay attention to the distinction between power cables and signal cables to avoid reverse connections.

3. Secure the transmitter to the installation position, ensuring that the seal is good to avoid liquid infiltration. 4. After 30 minutes of preheating, you can start measuring.


▋ Application


      Liquid level transmitter is suitable for petroleum, water conservancy, chemical industry, metallurgy, electric power, light industry, scientific research, environmental protection and other enterprises and institutions of liquid level measurement needs. Especially suitable for corrosive fluids, all-weather environments and applications requiring high precision measurement. Such as chemical storage tank level monitoring, hydropower station water level control, oil refining process in the level measurement.


▋ FAQ


Q:How to wire the transmitter correctly?

A:Follow the wiring diagram. Incorrect wiring will result in no signal output due to internal protection. Warm up for 30 minutes after powering on for stable signals.

Q:What media is it suitable for?

A:Use in media that doesn't corrode silicon or stainless steel (except special corrosion-resistant models).

QWhat are the pressure limitations?

A:Maximum pressure must not exceed rated overload. Avoid direct contact with conductive orcorrosive liquids/gases on the back pressure side. Keep air vents unblocked.

Q: Any precautions for the pressure output hole and diaphragm?

A:Avoid inserting sharp objects into the output hole. Do not touch the diaphragm.

Q:How to ensure its precision?

A:Handle with care, avoid dropping, clamping, dismantling, or poking with sharp metal objects.

Q:What to do if there's abnormal output?

A:Stop and check. If a product defect, return with the warranty card and manual for repair or replacement.

Q:Can I disassemble or modify it?

A:No, unless you are a professional.
