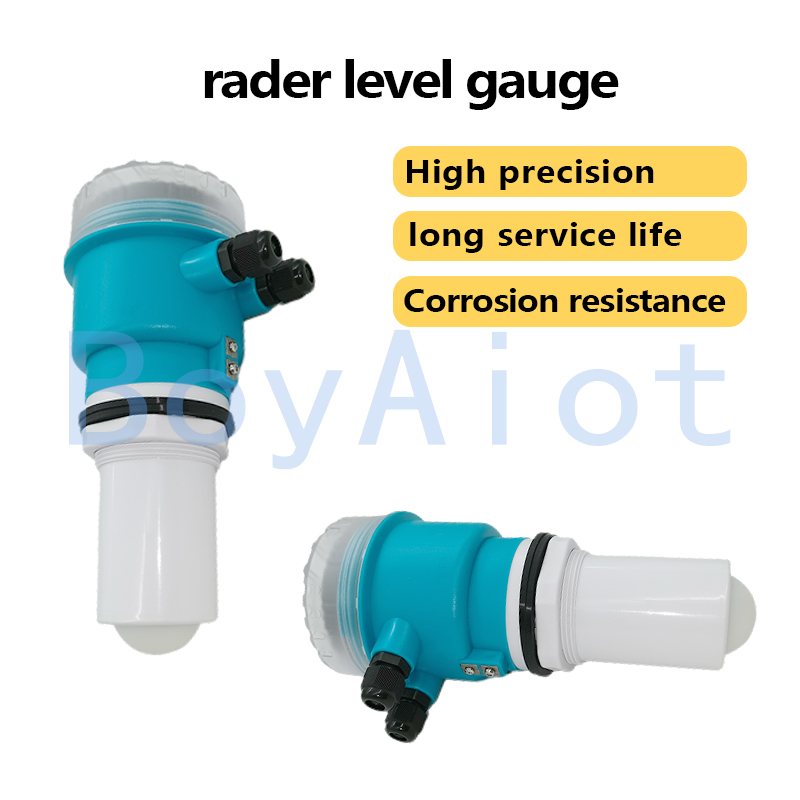

BOY-SW08-FH Integrated radar level gauge

BOY-SW08-FH Integrated radar level gauge

High precision, high range and easy to install
Product features:

1.Non-contact measurement, no wear, no pollution

2.Integrated structure, small antenna size, easy to install

Cellphone(Whatsapp/Wechat):
Mr. Lin: +86 13960777235
 technical consultation

▋ Product Description

BOY-SW08-FH Integrated radar level gauge is composed of millimeter-wave radar components, which are mainly composed of radio frequency units, processing units and printed board antennas. Millimeter-wave radar can penetrate obstacles such as light, rainfall, dust, fog, or frost to detect targets, and is a kind of level and liquid level measuring instrument that can work in real time around the clock.



▋ Product Characteristics

BOY-SW08-FH Integrated radar level gauge features a high-brightness LCD screen with integrated level and distance display, an 80G radar ranging module for various environments, 4-20mA current signal output, RS485 communication, optional two-way relay output, and low power consumption (≤ 2W).

Large Screen Display

High-frequency Radar Ranging

Wide applicability

High-brightness LCD screen with integrated level and distance display.

The radar ranging module adopts an 80G high-frequency chip

Adapt to various working environments such as solid and liquid.

Diverse Signal Transmission

Low Power Consumption

Multi-language Menus

4-20mA current signal, RS485 communication

Total power consumption ≤ 2W

Switchable Chinese and English menus for easy operation.

▋  Product Parameter

Measurement frequency

80GHz

Acquisition frequency

160ms/ available

Distance measurement accuracy

±2mm


Measuring range

0.4~80m

0.25~40m

0.25~20m

Antenna beamwidth

±3°

Operating humidity

0~60%

Supply voltage

DC9-36V wide power supply, AC100-265V

Operating temperature

-20~70℃

Current output

4-20mA current

Communication output

RS485 communication

Switching output
Upper and lower limit two-way relay (optional)
resolution
0.001m
Installation
G2 thread (customizable), flange, bracket
protection class
IP67
Electrical interfaces

M16*1.5

Instrument size (L * W)
120*210mm

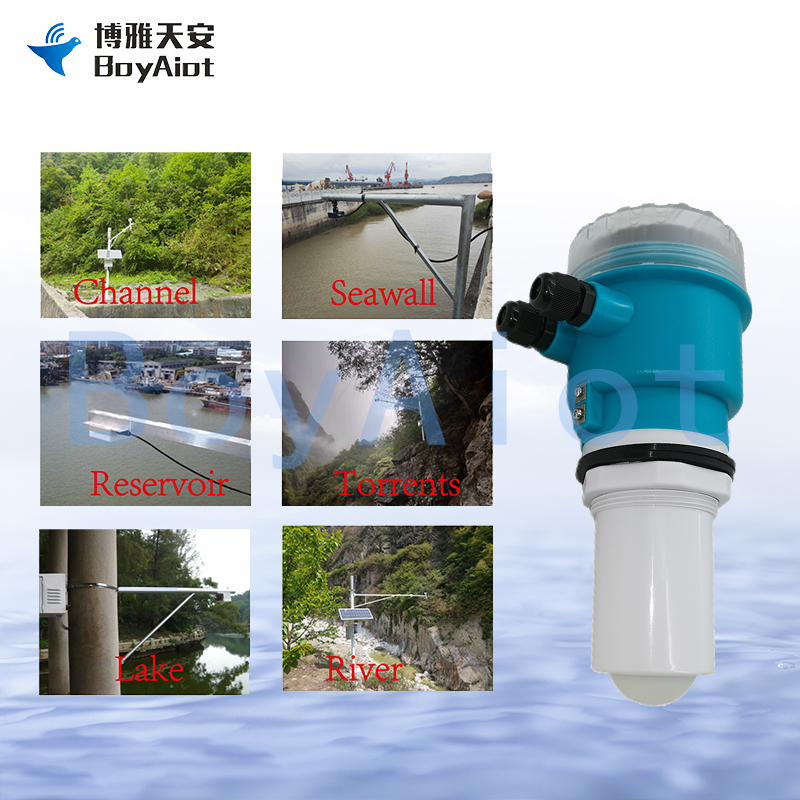

▋ Application

It can be widely used in petroleum, chemical industry, water treatment, water conservancy, steel, coal mining, electric power and food processing industries, and is suitable for acid, alkali, salt, anti-corrosion, high temperature, explosion-proof and other fields. It can be connected with various brands of PLC systems or secondary control systems through 4~20mA or RS485 (custom protocol or Modbus protocol) to provide real-time liquid level data for industrial automation operation.


▋ FAQ


1. Can the equipment be waterproof? Will water flooding damage the equipment?

A: Can be waterproof, equipment IP67 protection level.

2. How to install the equipment?

A: The device is installed 40cm away from the support surface through the support bracket to ensure that the device is installed horizontally and the antenna is 10 degrees down.

3. the measured value is obviously distorted?

A: It may be because the antenna is scarred, and the thick and wet condensate strongly reflects the microwave, and the attachment of the antenna attachment needs to be cleaned.

4. Fluctuations in measured values?

A: It may be caused by the drastic fluctuation of the surface of the measured medium. In addition to improving the application parameters, the installation position of the equipment should also be checked, or larger specifications of the antenna should be considered.
