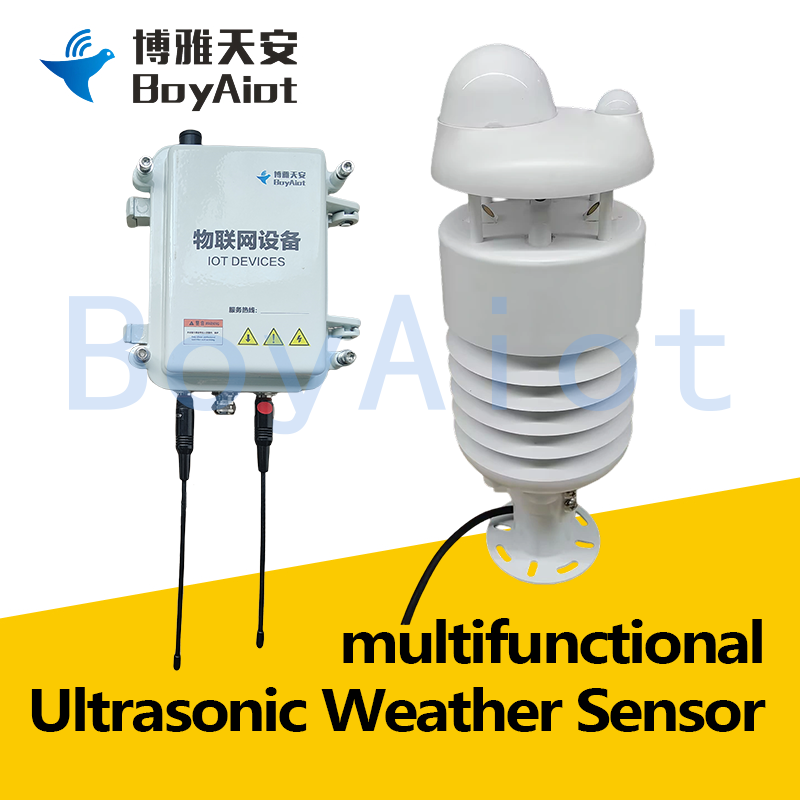

BOY-AWS-12 multifunctional Ultrasonic Weather Sensor

Product features:

1. Easy installation: beautiful appearance, integrated wiring.

2. Stable structure: integrated, works in harsh environments.

3. High stability: Anti-interference, stable output.

4. High integration: Monitors ten types of data.

Previous product: BOY-AWS-11 telemetry multifunctional Weather Sensor

Next product: BOY-AWS-02 Environmental weather station

Cellphone(Whatsapp/Wechat):

Mr. Lin: +86 13960777235

technical consultation

▋ Video Description

▋ Product Description

BOY-AWS-12 Environmental and weather data can be collected and monitored, measuring 10 parameters: air temperature, relative humidity, barometric pressure, light intensity, rainfall, wind speed, wind direction, PM2.5, PM10, and CO2. The equipment adopts the industrial grade design index, can work stably in the harsh outdoor environment of -40℃~+85℃, and supports Modbus-RTU and ASCII protocols based on RS485, as well as SDI-12 protocols.

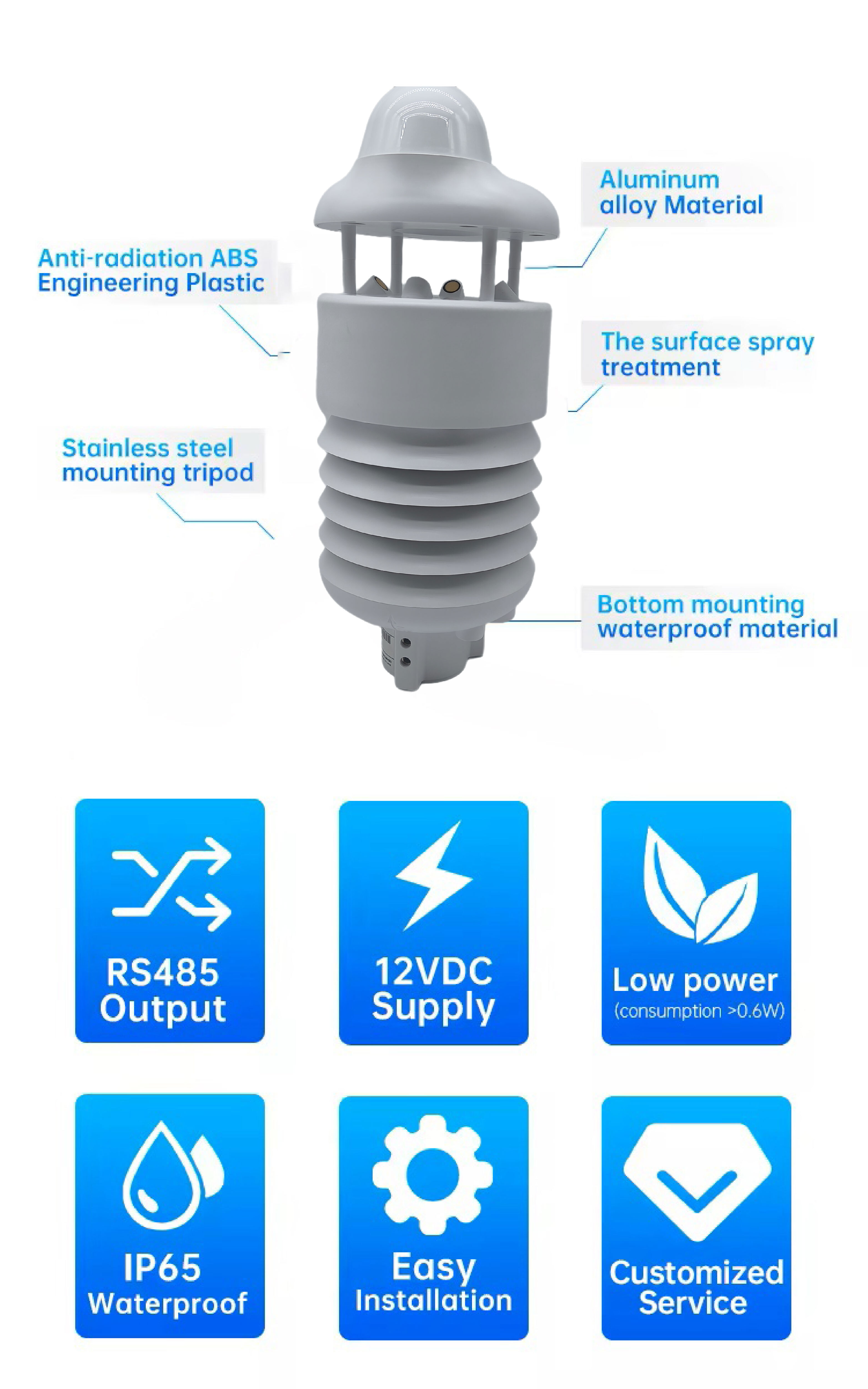

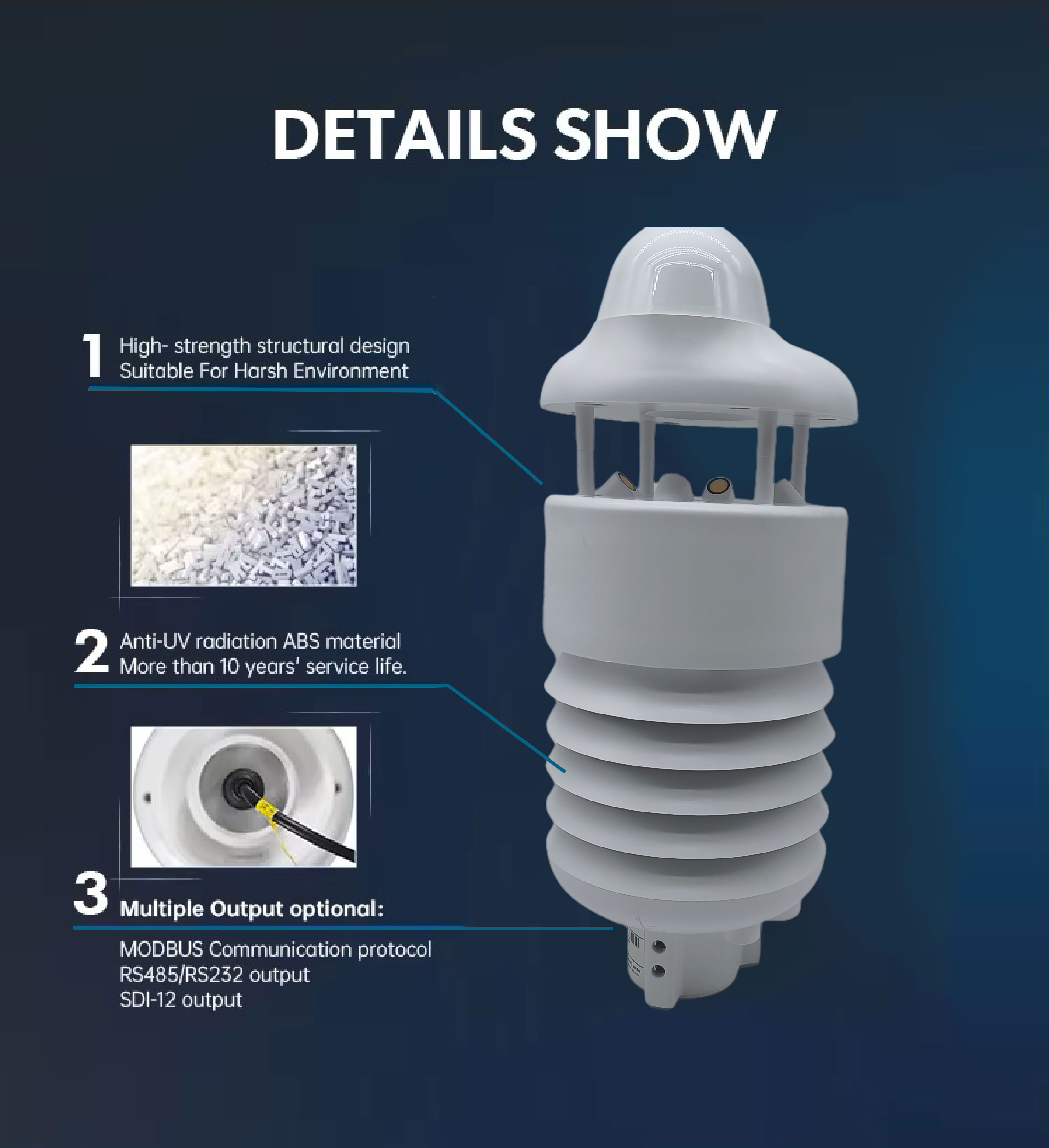

▋ Product Details

▋ Product Parameter

Parameter	Index
Humidity range	0%RH~100%RH
Temperature range	-40~85°C
Atmospheric pressure	300~1250hPa
Rainfall range	0~200mm/h
Wind speed range	0~60 m/s
Wind direction range	0°~360°
Light intensity	0~200,000Lux
PM	0~1000μg/m3
CO2	400~10000 ppm
Power supply	12VDC,AC220Vsolar power option
Class of protection	IP65

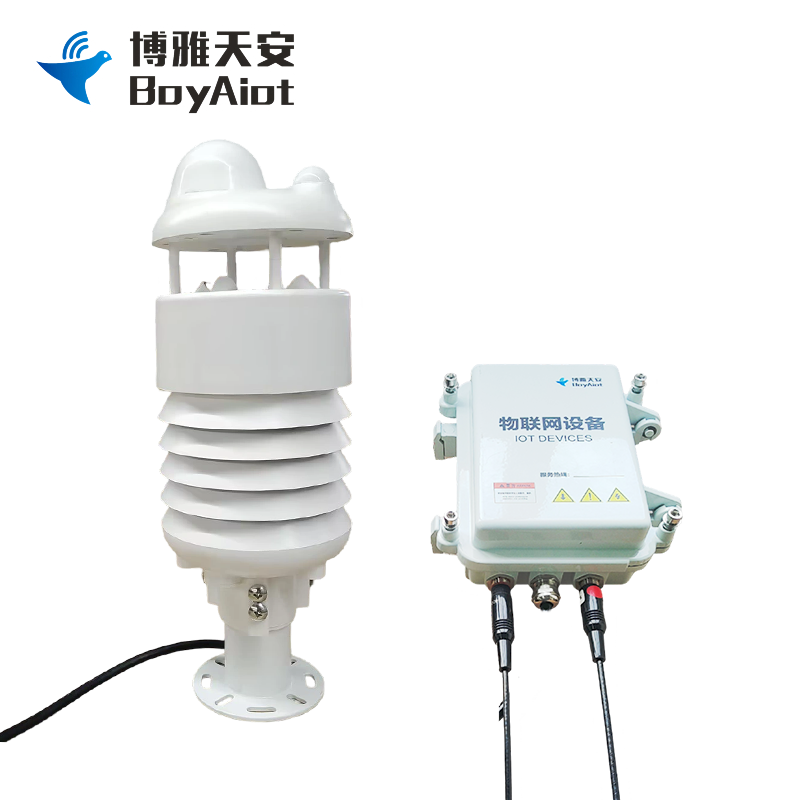

LoRa Telemetry terminal
Hardware system
Processor	32-bit ARM Cortex-M4 processor core
Data storage	16MB
LoRa parameter
Standards and frequency bands	475MHz
Urban communication distance	0.8km
Open communication distance	3.5km
Transmitting power	+20dBm
Receiving sensitivity	-139dBm@LoRaTM and 62.5 -136dBm@LoRaTM and 125Khz&SF=12&293bps -118dBm@LoRaTM and 125Khz&SF=6&9380bps -123dBm@FSK&5Khz and 1.2Kbps -117dBm@FSK&5Khz and 4.8Kbps -110dBm@FSK&20Khz and 38.4Kbps
Data rate	1.2K ~ 300Kbps@FSK 0.018K ~ 37.5Kbps@LoRaTM
Wireless parameter
Wireless module	Industrial grade wireless module
Standards and frequency bands	Support: FDD-LTE, TDD-LTE, CDMA2000/EVDO, WCDMA, TD-SCDMA, GPRS/EDGE Optional single mode, multi-mode or full Netcom
Theoretical bandwidth	FDD-LTE: downstream speed 150Mbps, upstream speed 50Mbps TDD-LTE: 61Mbps downstream and 18Mbps upstream WCDMA: downstream rate 42Mbps, upstream rate 5.76Mbps TD-SCDMA: downstream rate is 2.8Mbps, upstream rate is 2.2Mbps CDMA2000/EVDO: downstream rate is 3.1Mbps, upstream rate is 1.8Mbps GPRS/EDGE: 171.2kbps/384kbps
Transmitting power	≤24dBm
Receiving sensitivity	≤109dBm
Interface type
Power interface	Industrial grade terminal interface with built-in power reverse protection and overcurrent/overvoltage protection
Serial port	1 Group of RS232 ports 1 group of RS485 ports
Serial port	Data bits: 5, 6, 7, 8 bits Stop bits: 1, 1.5, and 2 Check: none check, odd check, even check Serial port rate: 1200-115200 BPS
Application interface	1 set of analog input interfaces 12-bit AD, supports 4-20mA current signal and 0-5V voltage signal
LoRa interface	Lora communication: Built-in Lora communication module
Network interface	1 set of RJ45 Ethernet ports (optional)
Bluetooth interface	Bluetooth communication: Built-in Bluetooth communication module
USIM Card interface	Standard self-propelled Micro Sim card holder with 1.8V/3V USIM card and built-in 15KV ESD protection
Antenna interface	2 standard SMA negative antenna interfaces, characteristic impedance 50 Ohm
Mains supply
Standard power supply	DC 12V
Built-in battery	20000mAh lithium battery
Charge management	Built-in charging module, support solar panel floating charge power supply
Power supply range	DC 5-16V
Physical characteristics
Shell	Aluminum alloy housing, protection class IP65, housing and system security isolation
Overall dimension	206 x 174 x 66 mm(excluding antenna and mounting parts)206 x 174 x 66 mm(excluding antenna and mounting parts)
Weight	Approx. 1250g(excluding antenna, mounting and packaging)
Environmental parameter
Operating temperature	-10℃ to +55℃
Storage temperature	-10℃ to +55℃
Relative humidity	95%RH(no condensation)

▋ Installation Method

The equipment adopts integrated structural design, beautiful appearance, all signal line interfaces are built-in, the product appearance is simple and beautiful, easy installation, can be easily completed by a single person.

▋ Application

▋ FAQ

1. The temperature sensor is faulty
First, use a multimeter to check the resistance value of the sensor and confirm whether the device is faulty. Secondly, clean the dust in time during routine maintenance.

2. The air pressure sensor is faulty
Use the serial port to connect the sensor to check the device running status. During routine maintenance, check the flatness of the static pressure close and whether the holes are blocked

3. The wind direction and speed sensor is faulty
It can monitor whether the measurement channel is faulty through the signal output of the equipment, and timely clean the dust and sand in the bearing clearance during daily maintenance to avoid bearing failure
