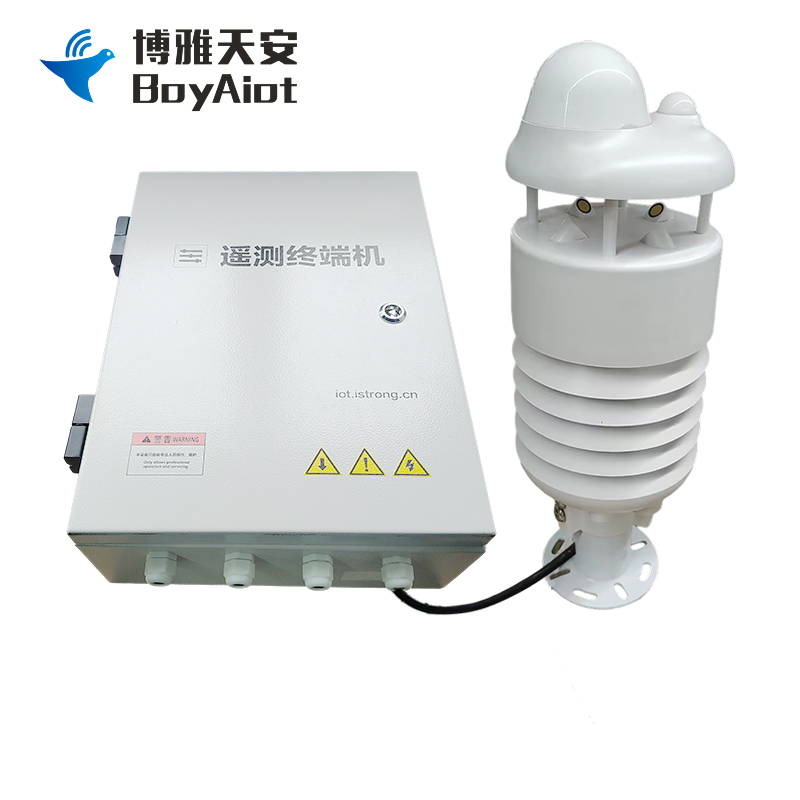

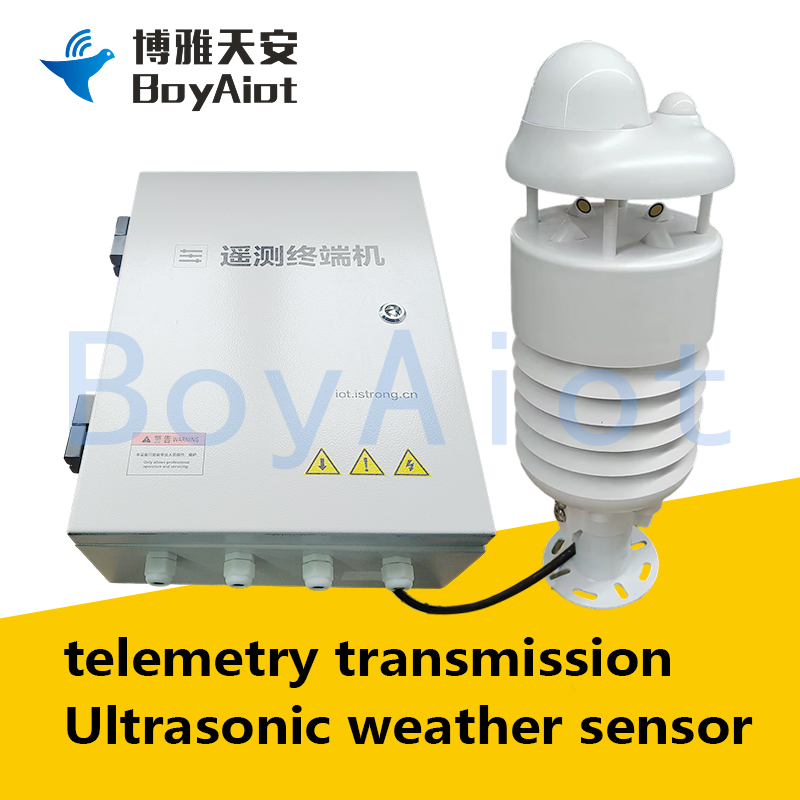

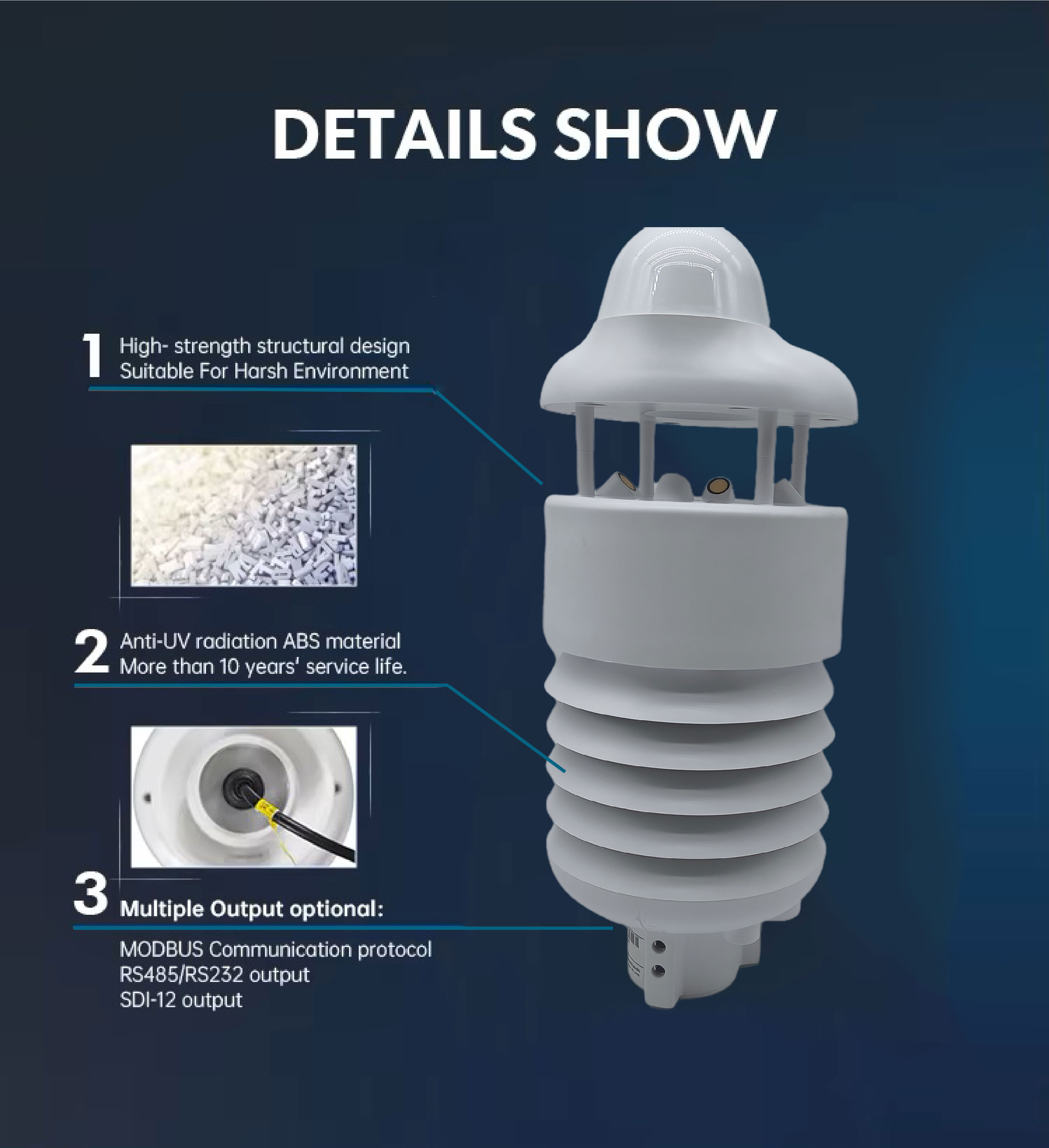

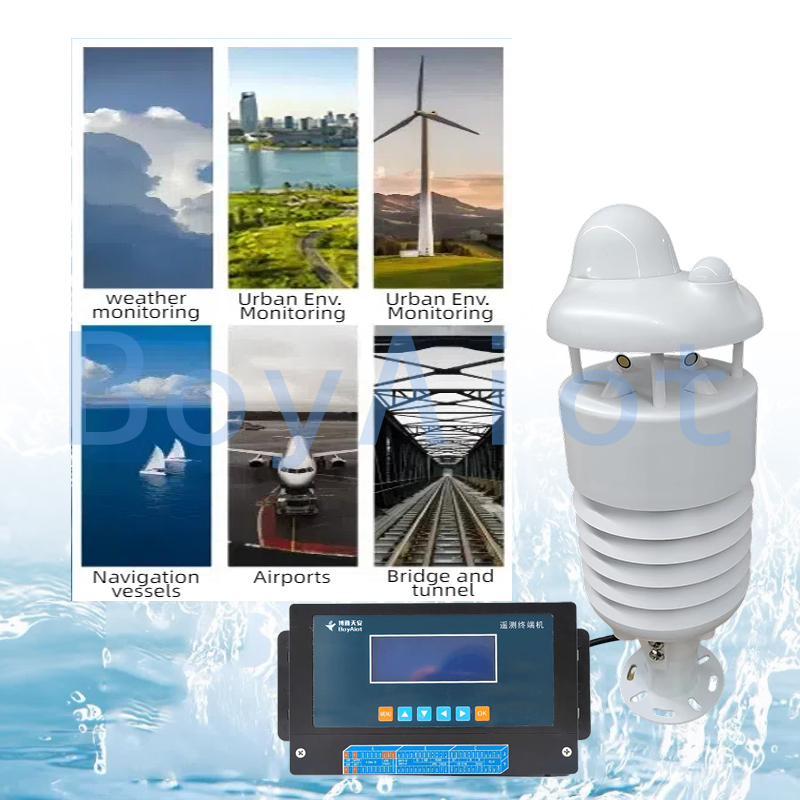

BOY-AWS-11 telemetry multifunctional Weather Sensor

Hardware system

Processor

32-bit ARM Cortex-M3 processor core

Data storage

16MB

T-flash card

External 32G(optional)

Screen parameter

Colour

White letters on blue background

Display size

4.3 inches 104mm(W)× 39mm(H)

Resolution

192*64

Backlight mode

LED

Operating temperature

-10℃ to +45℃

Storage temperature

-30℃ to +55℃

Wireless parameter

Wireless module

Industrial grade wireless module

Standards and frequency bands

Support: FDD-LTE, TDD-LTE, CDMA2000/EVDO, WCDMA, TD-SCDMA, GPRS/EDGE

Optional single mode, multi-mode or full Netcom

Theoretical bandwidth

FDD-LTE: downstream speed 150Mbps, upstream speed 50Mbps

TDD-LTE: 61Mbps downstream and 18Mbps upstream

WCDMA: downstream rate 42Mbps, upstream rate 5.76Mbps

TD-SCDMA: downstream rate is 2.8Mbps, upstream rate is 2.2Mbps

CDMA2000/EVDO: downstream rate is 3.1Mbps, upstream rate is 1.8Mbps

GPRS/EDGE: 171.2kbps/384kbps

Transmitting power

≤24 dBm

Receiving sensitivity

≤109 dBm

Interface type

Power interface

Industrial grade terminal interface with built-in power reverse protection and overcurrent/overvoltage protection

Serial port

4 Groups of RS232 ports

Two groups of RS485 ports

Data bits: 5, 6, 7, 8 bits

Stop bits: 1, 1.5, and 2

Check: none check, odd check, even check

Serial port rate: 1200-115200 BPS

Application interface

2 sets of interrupt input interfaces for tipper rain gauges and alarms

1 set of pulse counting input interface for flow meter

1 set of SDI-12 parallel input interfaces

6 groups of analog input interfaces

12-bit AD, supports 4-20mA current signal and 0-5V voltage signal

Max switching voltage: 250VAC/30VDC

Maximum switching current: 3A

1 set of 5V/2A controllable output power supply (rated current 5V/2A)

1 set of 12V/5A controllable output power supply (rated current 12V/5A)

2 sets of 12V/1A controllable output power supply (rated current 12V/1A)

Network interface

1 set of RJ45 Ethernet ports (optional)

Bluetooth interface

1 set of Bluetooth interface (optional)

VHF interface

1 set of external VHF interfaces (optional)

Satellite interface

1 set of external satellite communication interfaces (optional)

LoRa interface

1 set of LoRa interfaces (optional)

USIM Card interface

Standard self-propelled Micro Sim card holder with 1.8V/3V USIM card and built-in 15KV ESD protection

Antenna interface

1 standard SMA cathode antenna interface, characteristic impedance 50 Ohm

Key

6 standard buttons

Power supply

Standard power supply

DC 12V

Power supply range

DC 6-35V

Charge management

Built-in charging module, support solar panel floating charge power supply

Physical characteristics

Shell

ABS+PC housing, protection level IP30, housing and system security isolation

Overall dimension

280 × 144 × 39mm(excluding antenna and mounting parts)

Weight

Approx. 800g(excluding antenna, mounting and packaging)

Environmental parameter

Operating temperature

-35℃ to +75℃

Storage temperature

-40℃ to +80℃

Relative humidity

95%RH(no condensation)
