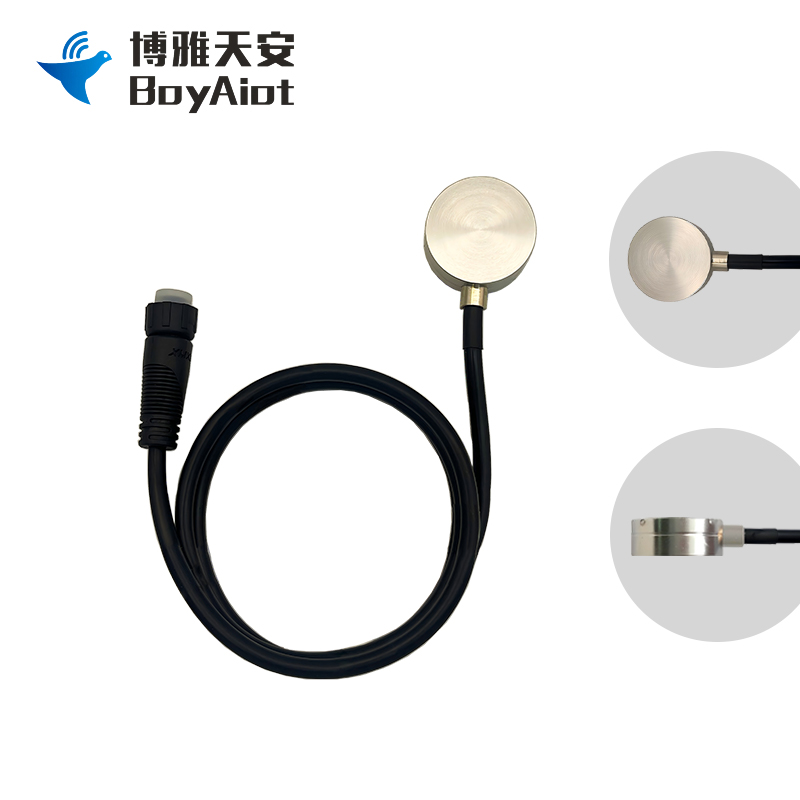

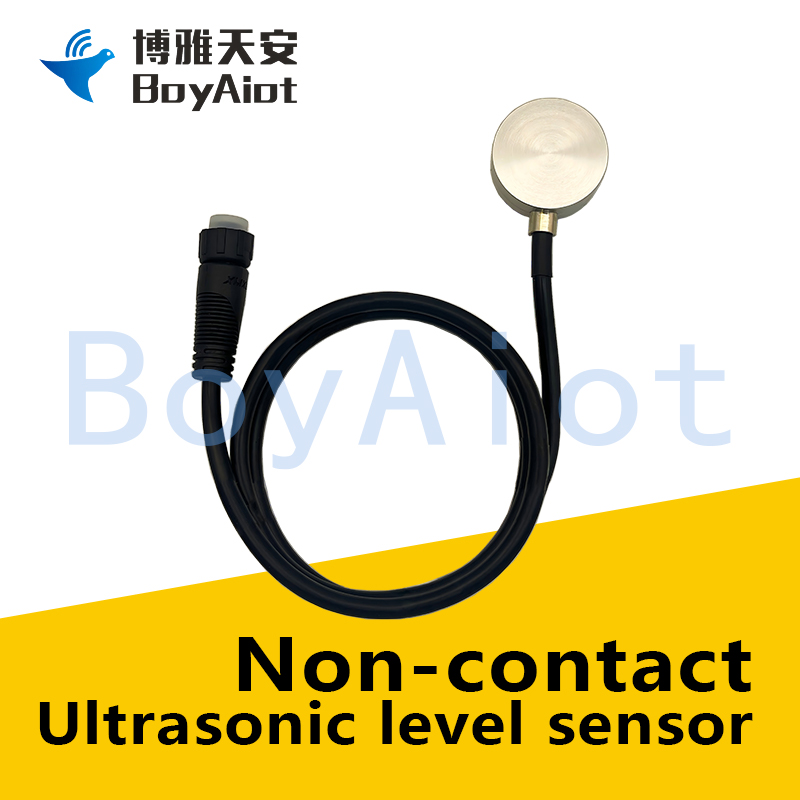

BOY-WR06-S3 Ultrasonic liquid level sensor

BOY-WR06-S3 Ultrasonic liquid level sensor

Ultrasonic ranging, high range, high precision, rich interfaces, professional certification
Product features:
  • 1,、high precision, high range, rich interface
  • 2,、good stability, not affected by water vapor, temperature and pressure changes
  • 3, 、the installation is simple, the tank does not need to punch holes, does not damage the tank structure
Cellphone(Whatsapp/Wechat):
Mr. Lin: +86 13960777235
 technical consultation

▋ Product Description

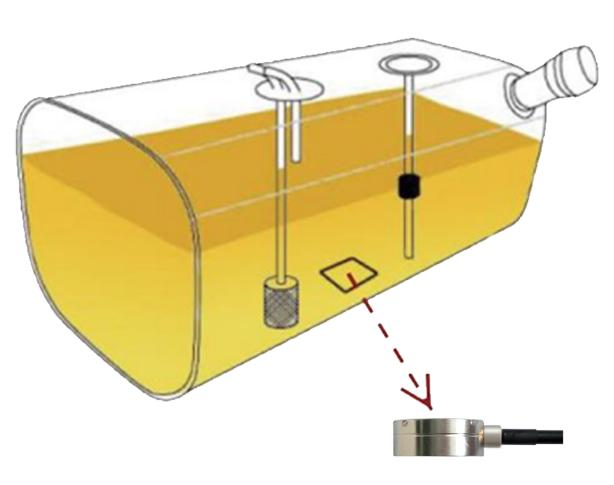

The BOY-WR06-S3 ultrasonic liquid level sensor utilizes the principle of ultrasonic echo distance measurement. The sensor is installed outside the bottom of the fuel tank and emits ultrasonic signals from the bottom. When it encounters the reflection of the oil surface, it calculates the liquid level height based on time and speed. Combined with unique digital signal processing technology, it overcomes the influence of the container wall and achieves high-precision non-contact measurement.


▋ Main Function

Function

Description

Liquid level collection

Real time monitoring of vehicle fluid level data dynamics

communication interface

RS232, RS485 data transmission

Applicable fuel tank material

Aluminum alloy/iron/plastic and other conventional fuel tanks can be used

protection grade

IP67 protection class


▋ Product Characteristics

BOY-WR06-S3 Ultrasonic liquid level sensors are easy to install, have rich interfaces, and can work stably for a long time 24/7, with extremely high cost-effectiveness. Can effectively meet users' demands for high precision and stability of products.

azfb

kkx

xjbg

Easy to install

Strong reliability

Interface richness

The fuel tank does not require drilling and does not damage the structure of the fuel tank

IP67 protection grade, Working temperature range -30 ℃~+80 ℃

Supports RS232, RS485, OV~5V

kglxq

gwdx

syxg2

High precision

High stability

Professional certification

 The resolution is 0.1mm and the accuracy is ± 0.5%FS

Not affected by changes in water vapor, temperature, and pressure

European qualification certification, restriction of the use of hazardous substances certification


▋ Product Parameter

working voltage

9~36VDC

Work power consumption

0.36W/12VDC

working temperature

-30℃~+80℃

Storage temperature

-40℃~+85℃

measuring range

3~100cm

certainty of measurement

±0.5%FS

Measurement resolution

0.1mm

Probe specifications

33mm, diameter, 12.7mm height, 1m line length

levels of protection

IP67

communication interface

RS232/RS485、0-5V

Communicationport parameters

Porter rate defaults to 9600 (Porter rate can be configured)

No check bit, 8 bit data bit, 1 bit stop bit, no flow control.

Suitable for fuel tank material

Aluminum alloy / iron / plastic and other conventional fuel tanks can be applicable

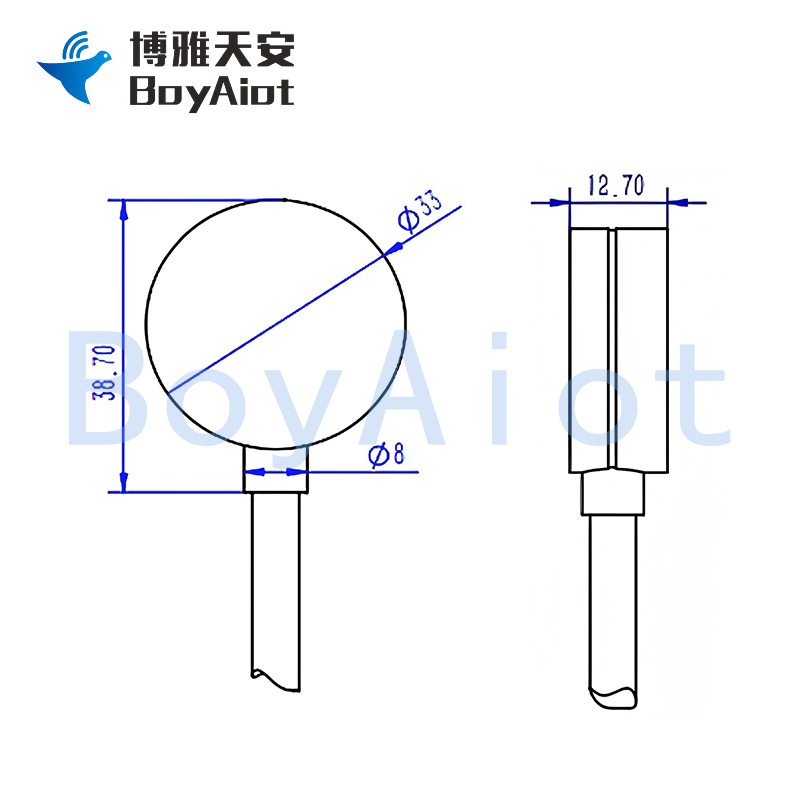

▋ Product Size

▋ Measurement Method

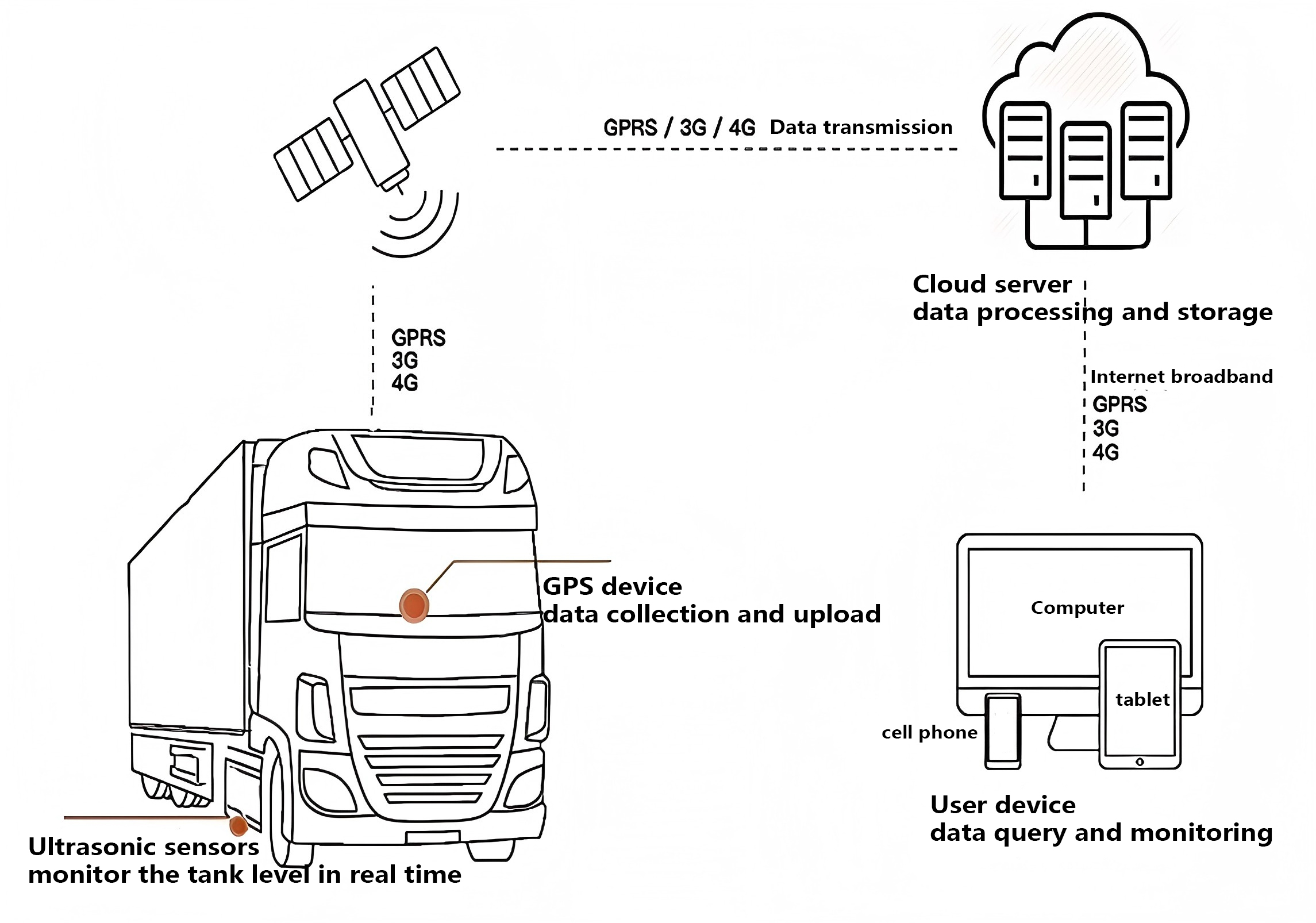

The platform monitors the dynamic fuel consumption data of vehicles in real time and calculates the refueling situation of vehicles. Data anomalies immediately trigger platform alerts to prevent theft, save unnecessary expenses, and optimize operational costs.

▋ Installation Method

Step 1: Confirm the installation area

Step 2: Connect WiFi installation tool

Step 3: Confirm the installation point of the probe

Step 4: Install the probe

Step 5: Install the throat clamp and secondary seal

Step 6: Wiring and Connecting the Vehicle Machine


▋Application

▋ FAQ

1. Ultrasonic level gauge sensor does not work

A: ① Check the circuit and connect the wires according to the instructions; ② Contact the instrument manufacturer.

2. Ultrasonic level gauge displays blind spots or exceeds the range

A: ① Adjust the actual range of the ultrasonic level gauge to within the working range of the instrument; ② Adjust the application environment to the required range; ③ Adjust the intensity of the emitted pulse until it stabilizes.

3. The ultrasonic level gauge has a large error

A: ① Repeatedly adjust the installation position; ② Correctly set the "installation height" value; ③ If the temperature difference is large, adjust the "Temperature Modification" value to the correct value.

4. Abnormal current output of ultrasonic level gauge

A: ① Reduce load resistance; ② Adjust the relevant parameters on your own; ③ Replace the DC stabilized power supply with a larger capacity; ④ Preheat after 15 minutes of power on.

5. The RS-485 output of the ultrasonic level gauge is abnormal

A: ① Change wiring and reset parameters to be consistent with the upper computer
