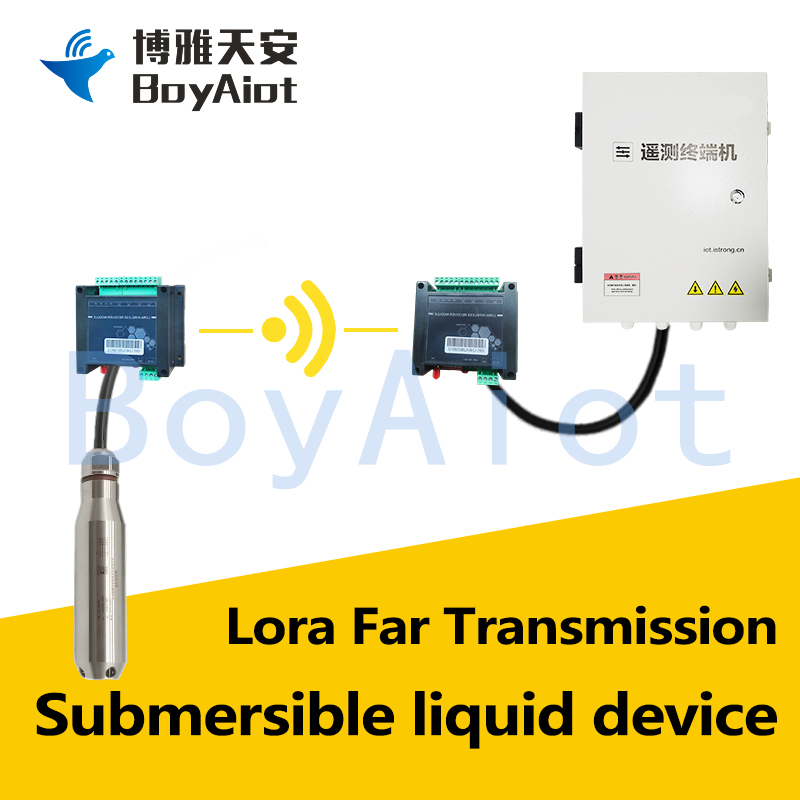

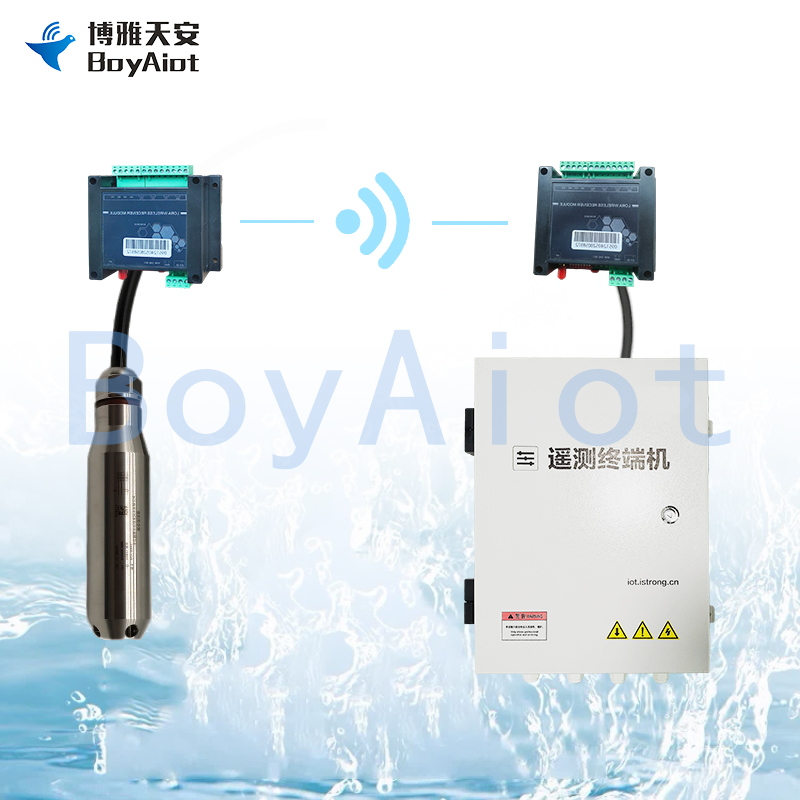

BOY-WR04-C3 Submersible liquid level monitoring
Product features:
1.Sensitive response: the use of A class diffused silicon pressure sensitive elements
2.Easy installation: cable connection, directly into the site
3.Good stability: the amplifier circuit uses the United States integrated chip, wide voltage power supply, reverse wiring and overvoltage protection
4.Srong anti-interference ability: anti-lightning, intercept interference design
▋Product Description
BOY-WR04-C3 Submersible liquid level monitoring is an integrated liquid level meter transmitter, with stable and reliable performance,safety and explosion-proof, overload capacity and high protection level characteristics, can be widely used in water plants, oil refineries, sewage treatment plants, building materials, light industry, machinery and other industrial fields.
▋ Product Characteristics
Function | Description |
Water level collection | Collection period The water level is collected periodically |
Data transmission | Data is sent over RS485 |
▋ Product Parameter
Water level parameter | |
Measuring medium | Liquid (compatible with contact material) |
Measuring range | 0 ~ 10m (customizable) |
Accuracy level | 0.1%FS, 0.25%FS, 0.5%FS |
Working condition | Medium temperature -40 ~ 85℃ |
Temperature compensation | -10 ~ 70℃ |
Stability performance | ±0.1% FS/ year |
Overload capacity | 200% full scale |
Temperature drift | ±0.01% FS / ℃ |
Environmental parameter | |
Supply voltage | 12-36VDC |
Ambient temperature | -40 ~ 85℃ |
Physical characteristics | |
Overall weight | Probe ≈290g, cable ≈60g per meter |
Class of protection | IP68 |
Interface type | |
Power interface | Industrial grade terminal interface with built-in power reverse protection and overcurrent/overvoltage protection |
Serial port | 1 group of RS485 ports |
Data bits: 5, 6, 7, 8 bits Stop bits: 1, 1.5, and 2 Check: none check, odd check, even check Serial port rate: 1200-115200 BPS | |
| RTU telemetry terminal integrates | |
Hardware system | |
Processor | 32-bit ARM Cortex-M3 processor core |
Data storage | 16MB |
T-flash card | External 32G(optional) |
Screen parameter | |
Colour | White letters on blue background |
Display size | 4.3 inches 104mm(W)× 39mm(H) |
Resolution | 192*64 |
Backlight mode | LED |
Operating temperature | -10℃ to +45℃ |
Storage temperature | -30℃ to +55℃ |
Wireless parameter | |
Wireless module | Industrial grade wireless module |
Standards and frequency bands | Support: FDD-LTE, TDD-LTE, CDMA2000/EVDO, WCDMA, TD-SCDMA, GPRS/EDGE Optional single mode, multi-mode or full Netcom |
Theoretical bandwidth | FDD-LTE: downstream speed 150Mbps, upstream speed 50Mbps TDD-LTE: 61Mbps downstream and 18Mbps upstream WCDMA: downstream rate 42Mbps, upstream rate 5.76Mbps TD-SCDMA: downstream rate is 2.8Mbps, upstream rate is 2.2Mbps CDMA2000/EVDO: downstream rate is 3.1Mbps, upstream rate is 1.8Mbps GPRS/EDGE: 171.2kbps/384kbps |
Transmitting power | ≤24 dBm |
Receiving sensitivity | ≤109 dBm |
Interface type | |
Power interface | Industrial grade terminal interface with built-in power reverse protection and overcurrent/overvoltage protection |
Serial port | 4 Groups of RS232 ports Two groups of RS485 ports |
Data bits: 5, 6, 7, 8 bits Stop bits: 1, 1.5, and 2 Check: none check, odd check, even check Serial port rate: 1200-115200 BPS | |
Application interface | 2 sets of interrupt input interfaces for tipper rain gauges and alarms 1 set of pulse counting input interface for flow meter 1 set of SDI-12 parallel input interfaces 6 groups of analog input interfaces 12-bit AD, supports 4-20mA current signal and 0-5V voltage signal Max switching voltage: 250VAC/30VDC Maximum switching current: 3A 1 set of 5V/2A controllable output power supply (rated current 5V/2A) 1 set of 12V/5A controllable output power supply (rated current 12V/5A) 2 sets of 12V/1A controllable output power supply (rated current 12V/1A) |
Network interface | 1 set of RJ45 Ethernet ports (optional) |
Bluetooth interface | 1 set of Bluetooth interface (optional) |
VHF interface | 1 set of external VHF interfaces (optional) |
Satellite interface | 1 set of external satellite communication interfaces (optional) |
LoRa interface | 1 set of LoRa interfaces (optional) |
USIM Card interface | Standard self-propelled Micro Sim card holder with 1.8V/3V USIM card and built-in 15KV ESD protection |
Antenna interface | 1 standard SMA cathode antenna interface, characteristic impedance 50 Ohm |
Key | 6 standard buttons |
Power supply | |
Standard power supply | DC 12V |
Power supply range | DC 6-35V |
Charge management | Built-in charging module, support solar panel floating charge power supply |
Physical characteristics | |
Shell | ABS+PC housing, protection level IP30, housing and system security isolation |
Overall dimension | 280 × 144 × 39mm(excluding antenna and mounting parts) |
Weight | Approx. 800g(excluding antenna, mounting and packaging) |
Environmental parameter | |
Operating temperature | -35℃ to +75℃ |
Storage temperature | -40℃ to +80℃ |
Relative humidity | 95%RH(no condensation) |

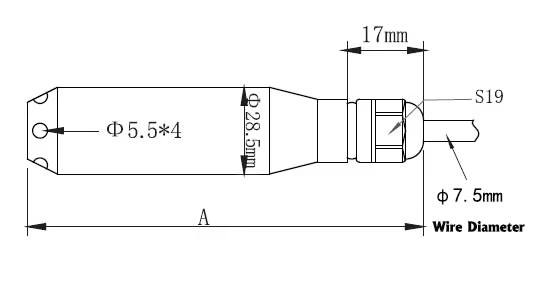

▋ Product Size

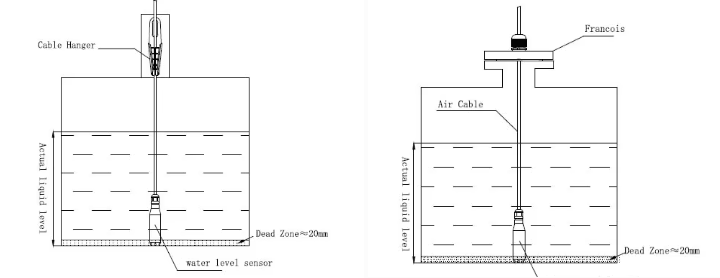

▋ Measurement Method
BOY-WR04-C3 Submersible liquid level monitoring has the advantages of anti-interference, small temperature drift, high measurement accuracy, good stability and long life. Widely used in river, reservoir, groundwater, water supply and drainage, sewage treatment and other water level monitoring.
When the liquid level fluctuation is large, measures should be taken to fix the probe part of the liquid level gauge, you can insert or install a steel pipe or PVC pipe larger than the diameter of the probe in the water, and open a number of φ5mm holes in the pipe at different heights in the opposite direction of the water flow, so that water can enter the pipe.

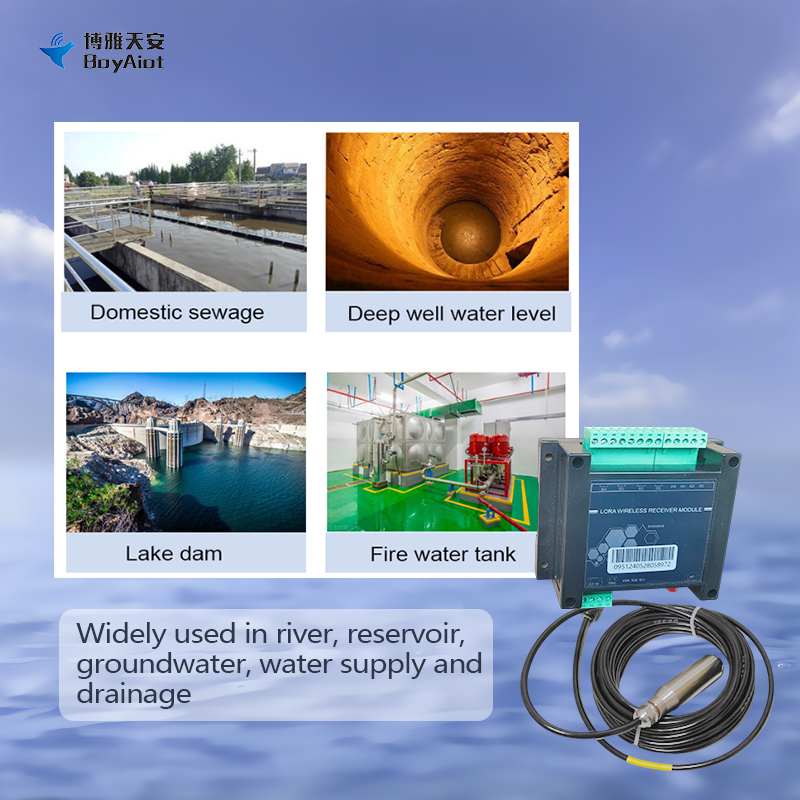

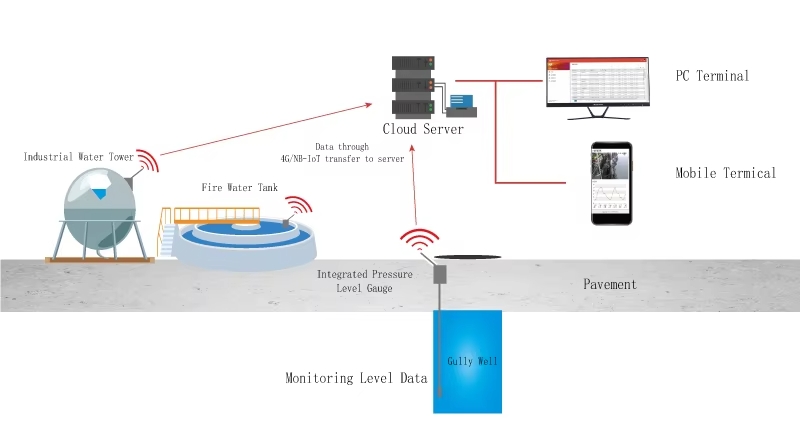

▋ Application
▋ FAQ
1. Equipment measurement principle?
A: When the sensor is put into a certain depth of the measured liquid, the pressure of the measured medium is introduced into the positive pressure chamber of the sensor, and the atmospheric pressure on the liquid surface is connected to the negative pressure chamber of the sensor through the cable airway to offset the front of the sensor, so that the sensor can measure the pressure, and the liquid level depth can be obtained by measuring the pressure
2. What is the range of the equipment?
A: The default measuring range is 0 ~ 10 meters, and the larger measuring range needs to be customized.
3. What is the measuring accuracy of the equipment?
A: The measurement accuracy is not higher than 0.5%, such as 10 meters range, the accuracy is 5cm.
4. Can the equipment be waterproof? Will water flooding damage the equipment?
A: Can be waterproof, equipment IP68 protection level.
5. Device communication method? What communication protocols are supported?
A: Supports RS485 communication and Modbus communication.
