BOY-WF06-F Doppler flowmeter

BOY-WF06-F Doppler flowmeter

Product features:

1.  Integrated design, built-in a variety of sensors measurement data.

2.  Wide applicability, can work in non-standard section, low flow rate, low liquid level conditions.

3.  No mechanical rotor structure, does not disturb the flow field, flow state.

Cellphone(Whatsapp/Wechat):
Mr. Lin: +86 13960777235
 technical consultation

▋ Product Description

         BOY-WF06-F Doppler flowmeter is used in river, open channel and pipeline and other conditions of the flow rate detection instrument. It adopts ultrasonic detection technology, high measurement accuracy, high stability, little affected by environmental factors, no rotating parts, low maintenance frequency, high reliability, is the first choice for online measurement and portable measurement products.



▋ Product parameter


ParameterDescription
Velocity range
0.021m/s~6.00m/s
Velocity resolution
0.001m/s
Water level range
0.03m~10m
Water level resolution 0.001m
Water temperature range
10°C~60°C
Water temperature resolution
0.1°C
Emission frequency
2MH2
Output
RS485
Power supply voltage
4~28VDC
Protection level
 IP68
Standby current 0.14W
Operating current
0.8W
Dimension
170*50*29mm

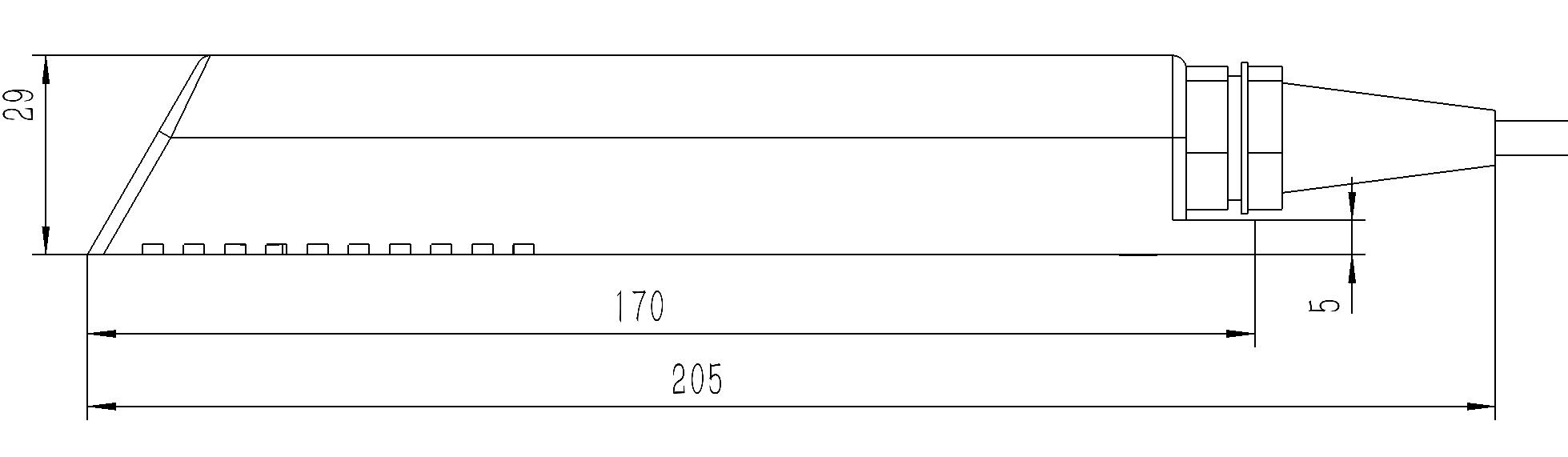

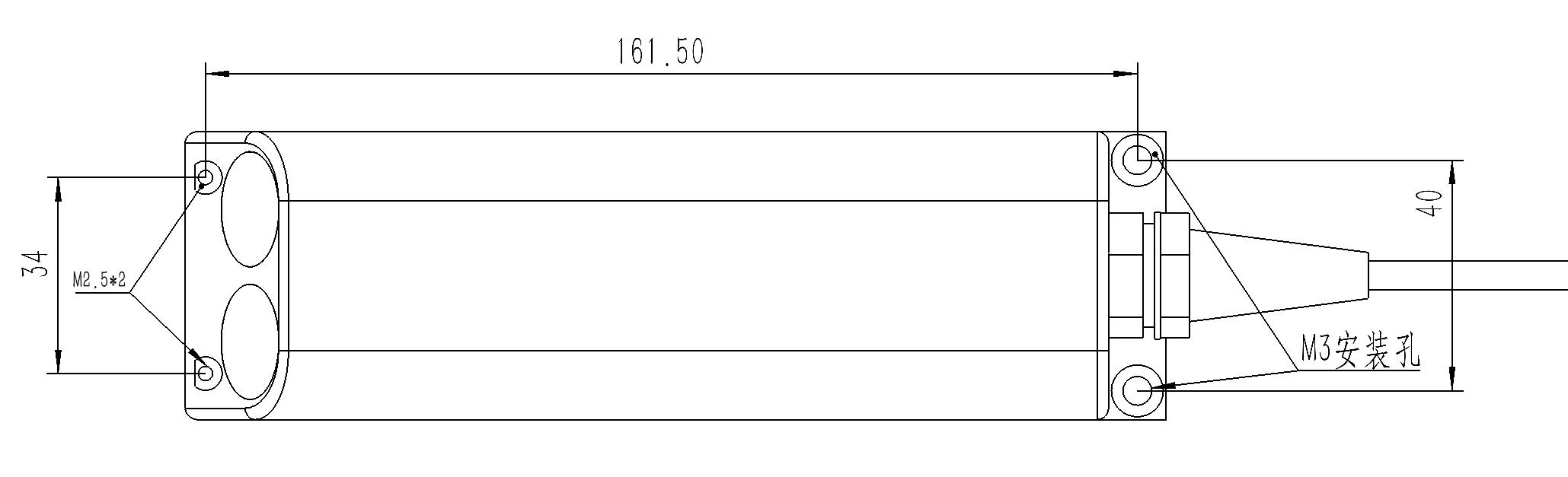

▋ Product size


▋ Working Mechanism

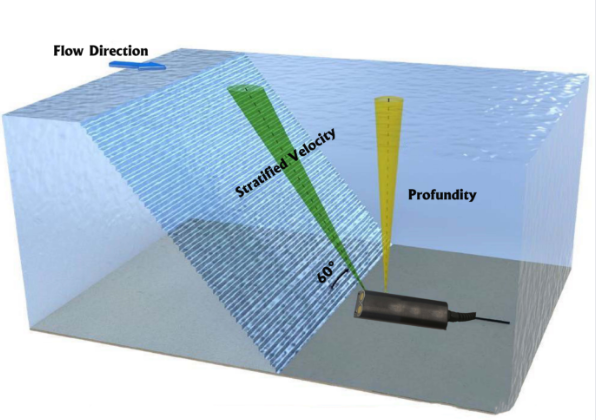

         BOY-WF06-FDoppler flowmeter uses the Doppler effect of sound waves propagating through the fluid to measure tiny particles in the fluid. The velocity of the fluid is measured by the Doppler shift generated by the scattering of sound waves by particles and bubbles. Combined with built-in diffused silicon. The liquid level data provided by the pressure sensor is used to measure the flow rate of the fluid by the velocity area method.




▋ Installation Method


Attention Item:

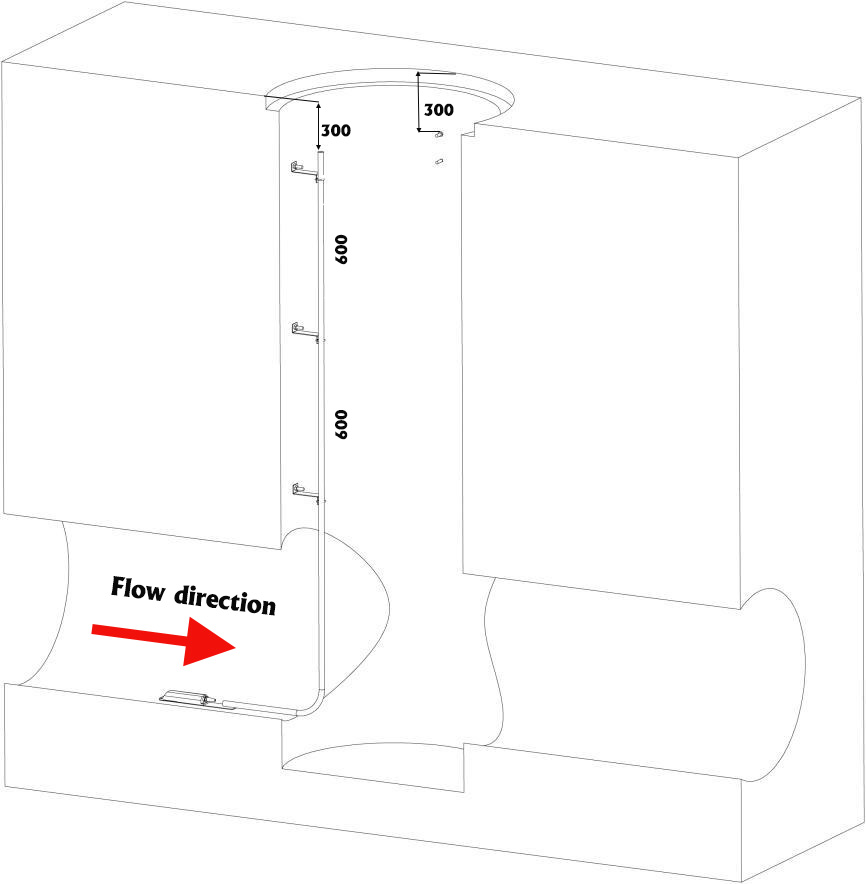

1. The Doppler flowmeter should be installed horizontally at the bottom of the pipe, while ensuring that it is parallel to the direction of the water flow and is consistent with the sensor.No barrier at the end shall interfere with the flow pattern; In special cases, such as the sludge at the bottom of the pipeline cannot be removed.Consider elevating the equipment to avoid silting.

2. the pipe network water is large and not easy to plug the equipment installation point, the sensor can be installed in the pipe bracket.Carry out monitoring and fix the support to the well wall.

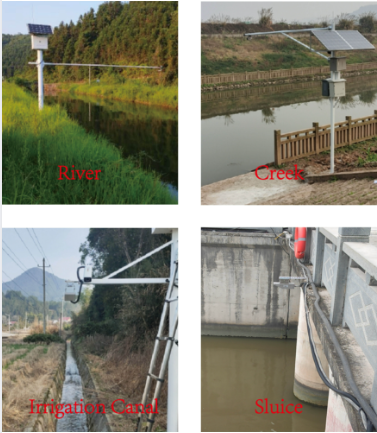

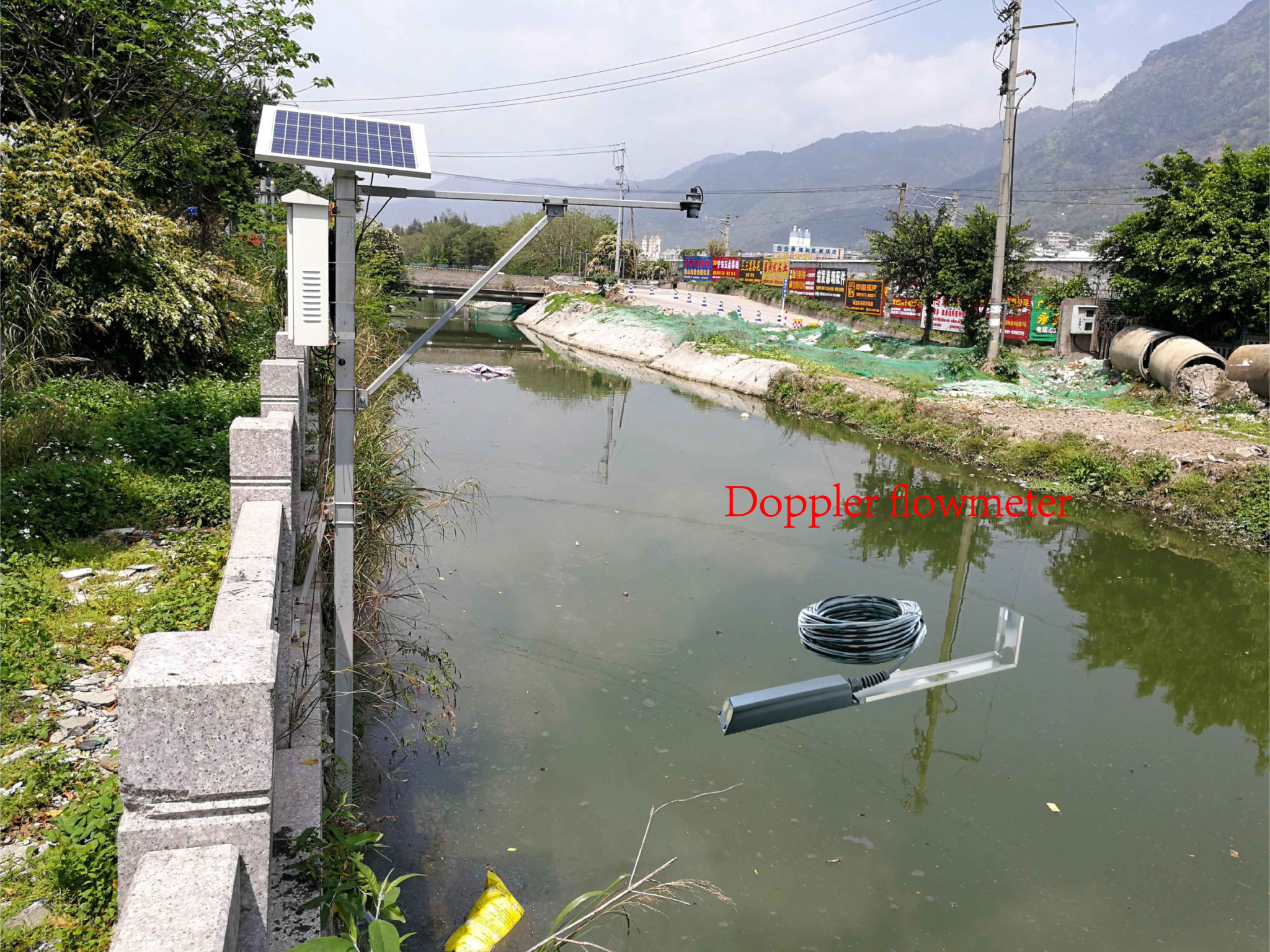

▋ Application
