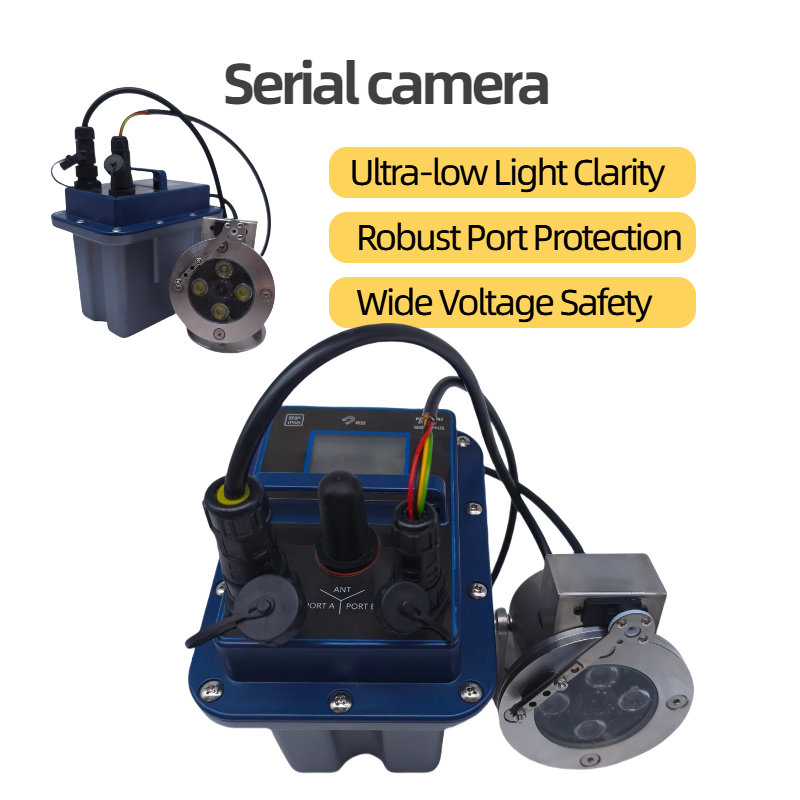

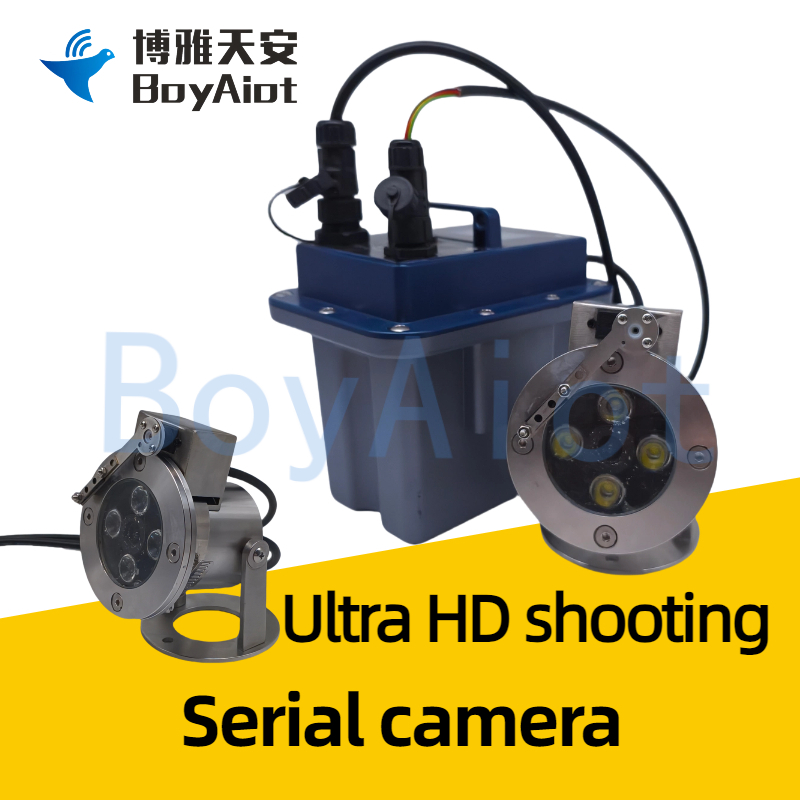

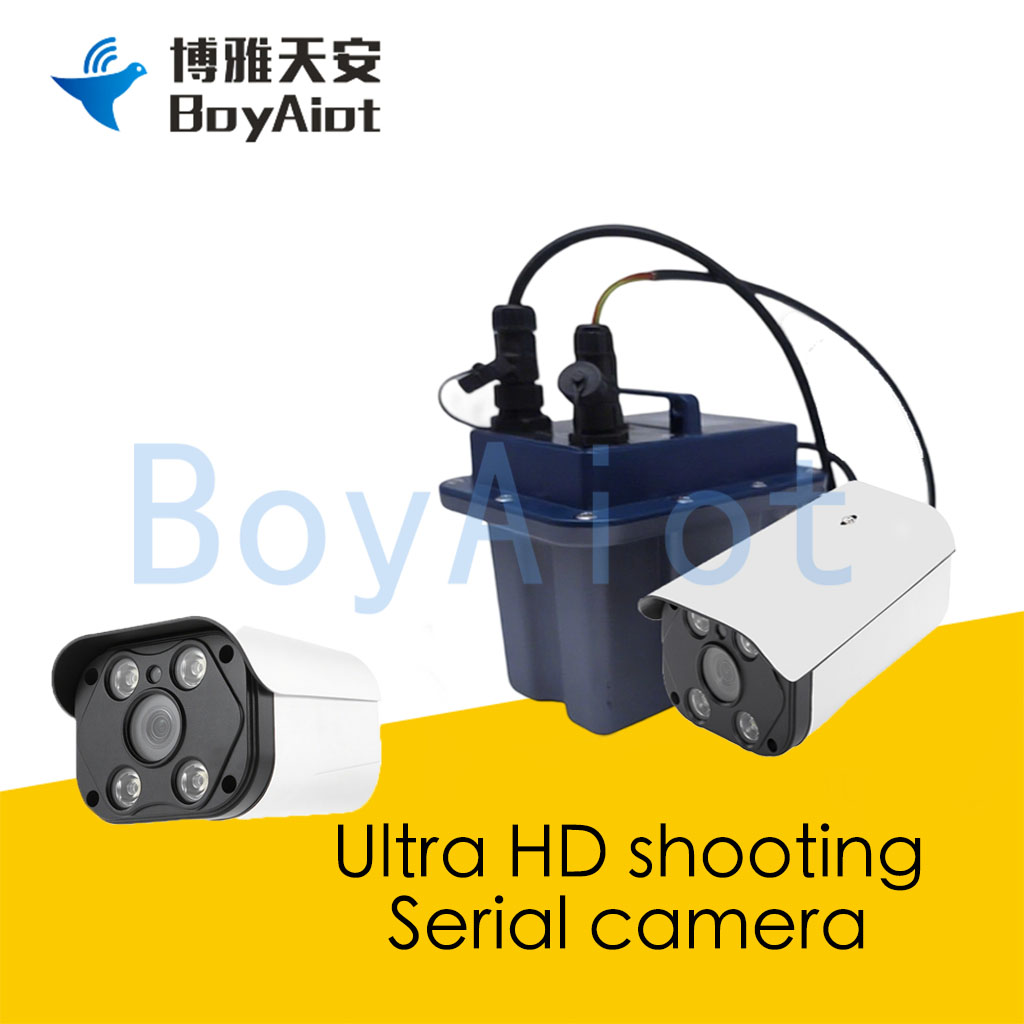

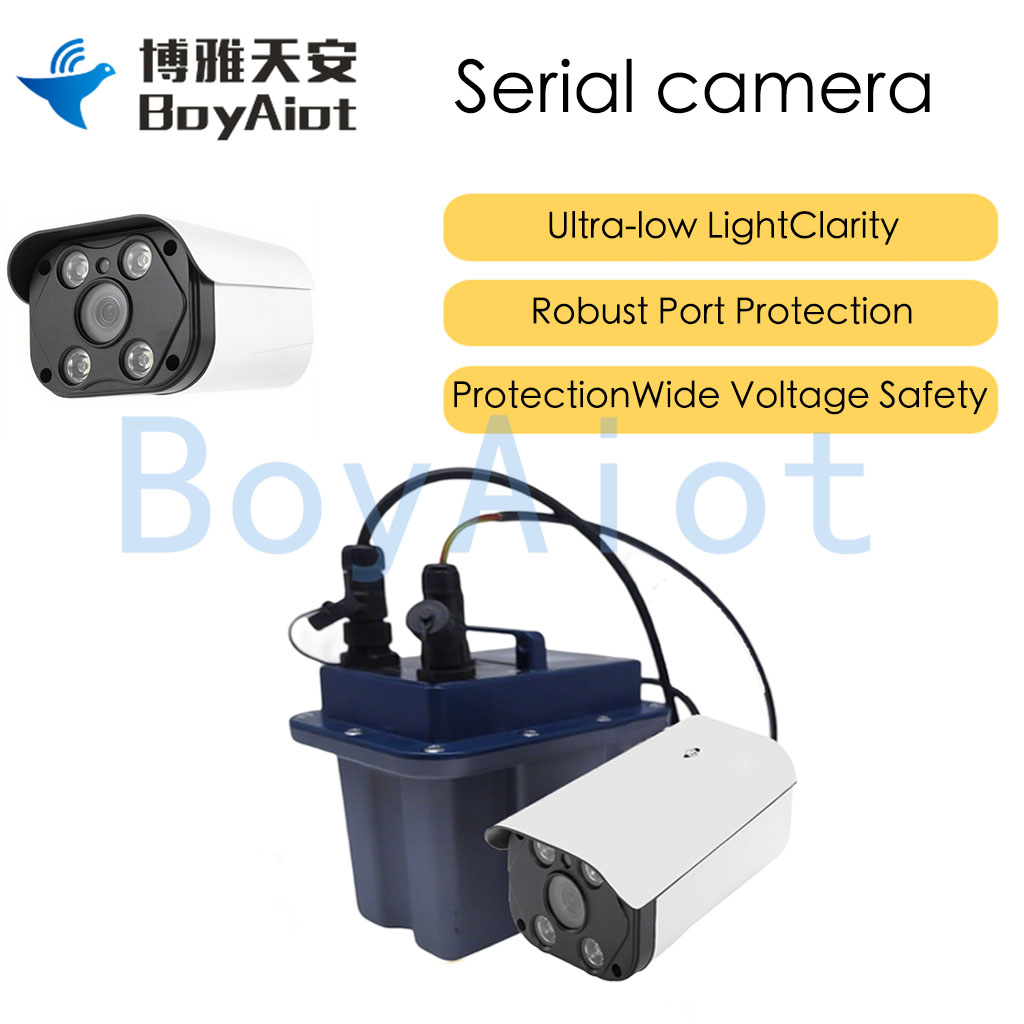

BOY-VC68 Serial camera

BOY-VC68 Serial camera

Product features:

1、High-definition Imaging Capability

2、Excellent Performance in Low-light Conditions

3、 Industrial-grade Reliability and Versatility

Cellphone(Whatsapp/Wechat):
Mr. Lin: +86 13960777235
 technical consultation

▋ Product Description

       The BOY-VC68 is a 2-megapixel underwater serial camera designed for high-definition underwater monitoring. It features a starlight enhancement ISP image signal processor, supporting line-by-line WDR and multi-level noise reduction for clear images in low-light conditions. This industrial-grade camera is reliable for use in various outdoor environments such as water conservancy, power, agriculture, environmental protection, railways, oil fields, and forest fire prevention.


▋ Product Parameter


Parameter
Specification
Power VoltageDC5V to 28V (Standard 12V)
Operating CurrentTypical 80mA, Night vision max <400mA
Power ConsumptionApprox. 1W (without light), 5W (with light)
Operating Temperature-40°C to 85°C
Storage Temperature-45°C to 90°C
Operating Humidity≤95% RH at 40°C without condensation
Startup Time<3 seconds
Sensor Size1/2.7
Illumination0.0001Lux
Waterproof RatingIP68
Resolution SupportMultiple resolutions up to 1080p, customizable
Baud Rates9600, 19200, 38400, 57600, 115200
Compression Ratio0-8 levels, customizable
Night Vision DistanceUp to 2000m in urban areas, 50-100m in field without light source
LensCustomizable, default 6mm F1.4
MTBF>43800h
Dimensions193×90×85mm
Weight0.55kg

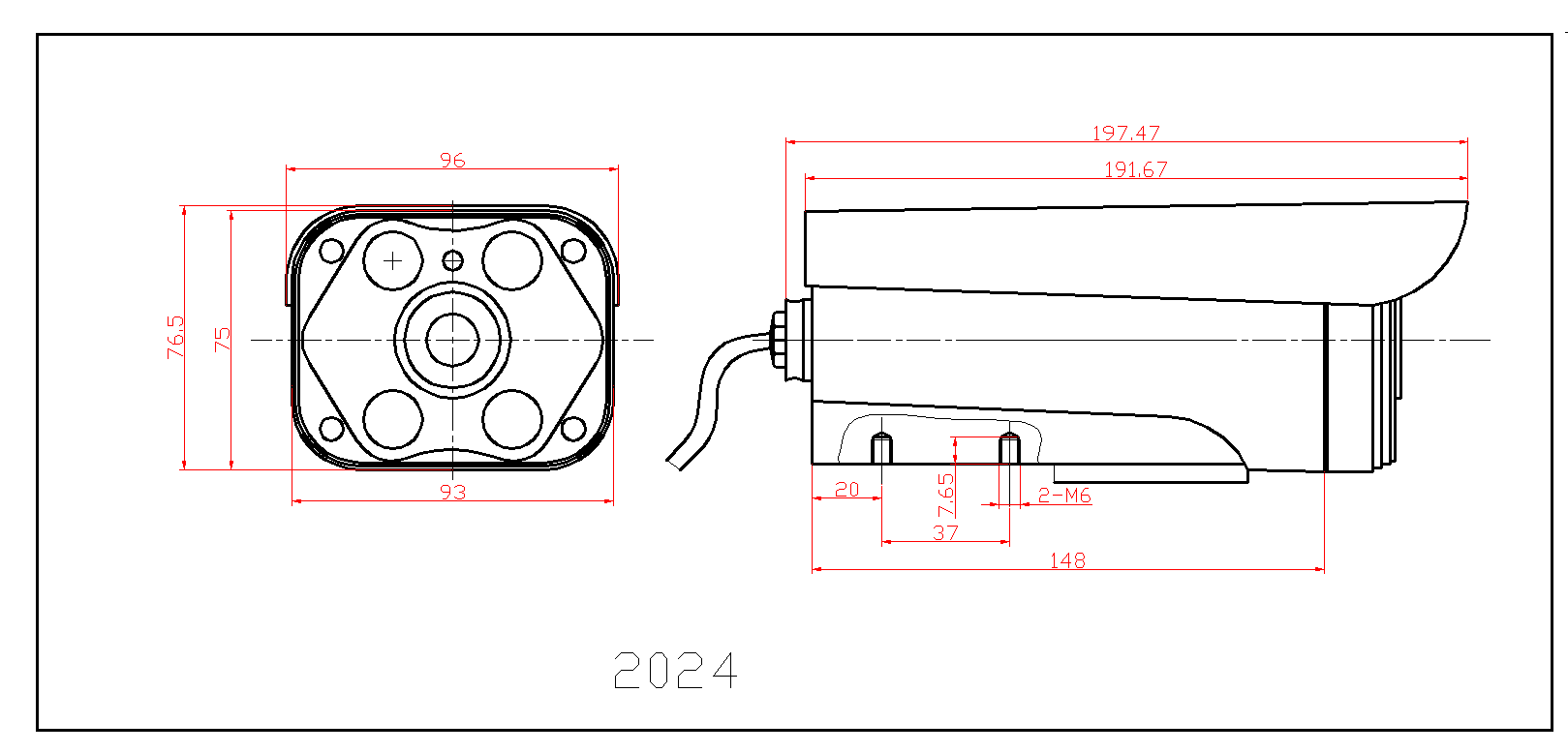

▋ Product Size


▋ Measurement Method





▋ Application

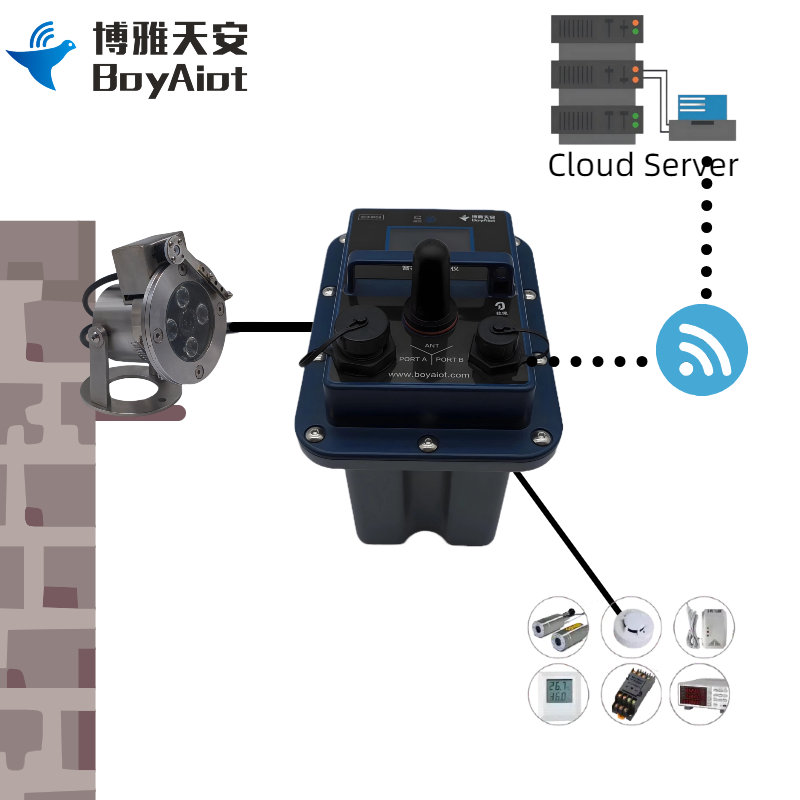

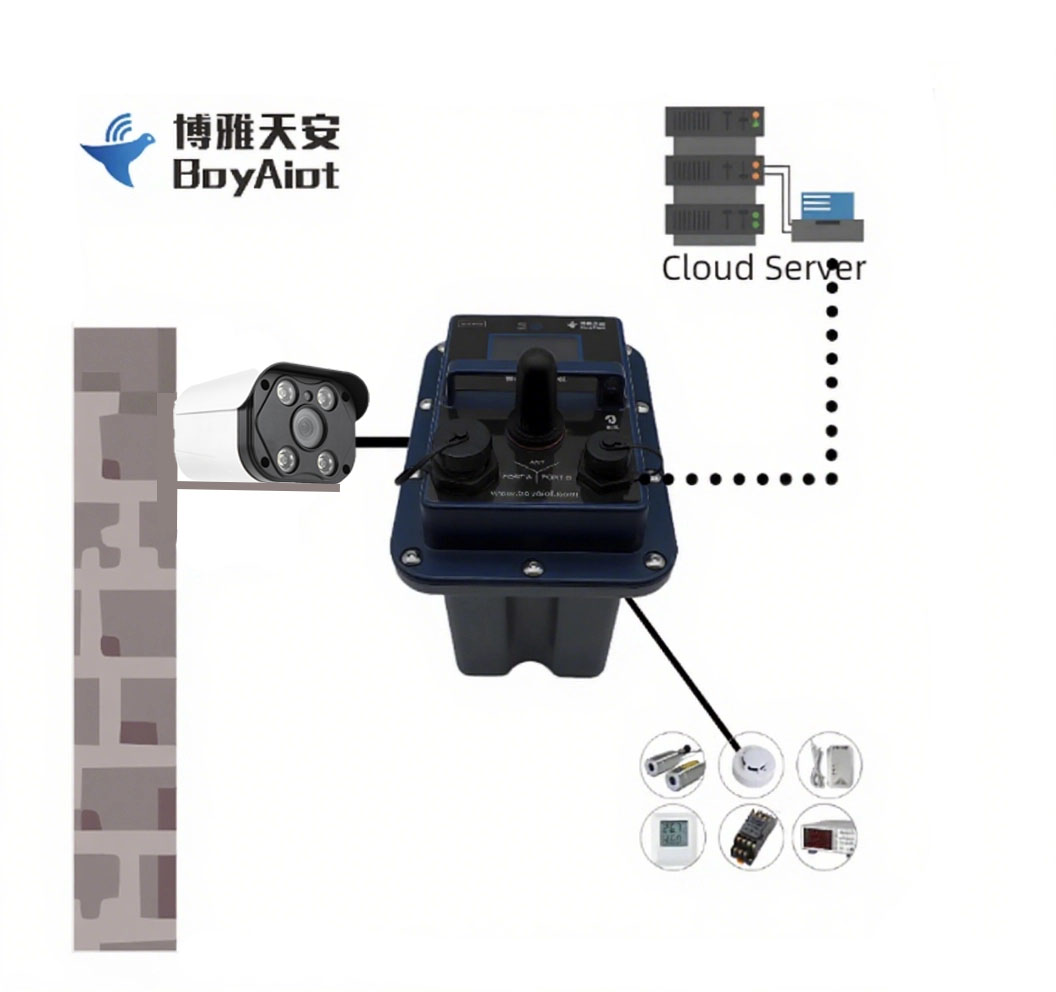

      The BOY-VC68  underwater serial camera is ideally suited for a variety of applications where high-definition imaging is required in challenging conditions. It is commonly deployed in water conservancy for monitoring water quality and flow, in industrial settings for pipeline inspection and maintenance, in environmental protection for wildlife monitoring and habitat assessment, and in security for surveillance in areas with limited or no lighting.




▋ FAQ

  1. Q: What is the camera's low-light performance like?
    A: The SXH485-H200SX features a blacklight-level low-illumination sensor that can capture clear color images in completely dark environments without the need for external lighting.

  2. Q: What communication protocols does the camera support?
    A: The camera supports RS485 bus communication by default, with RS232 and TTL as optional communication protocols.

  3. Q: What is the camera's waterproof rating and can it be used in underwater environments?
    A: The camera has an IP68 waterproof rating, making it suitable for underwater use and various wet environments.

  4. Q: Can the camera be used in extreme temperatures?
    A: Yes, the camera operates in a wide temperature range from -40°C to 85°C, and can be stored in temperatures as low as -45°C to 90°C.

  5. Q: How does the camera handle power supply variations?
    A: The camera has a wide voltage input range of 5V to 28V and includes power protection features such as reverse polarity, lightning, and surge protection, ensuring reliable operation in various power conditions.
