BOY-WF08-F Radar flowmeter

BOY-WF08-F Radar flowmeter

An automatic radar flowmeter based on microwave technology
Product features:

1.  Non-contact measurement, combined with section parameters to calculate flow, not affected by wind, temperature, haze, sediment, floating matter.

2.  Suitable for a variety of measurement conditions, can output flow rate, water level, flow measurement data.

3.  Convenient configuration software, you can easily configure parameters according to actual needs to adapt to different conditions of use.

Cellphone(Whatsapp/Wechat):
Mr. Lin: +86 13960777235
 technical consultation

▋ Product Description

      BOY-WF08 radar flowmeter is an automatic radar flowmeter based on microwave technology. It adopts advanced K-band plane radar technology to measure water velocity, water level and flow in a non-contact way. It can be used for non-contact flow measurement in river channels, irrigation channels, underground drainage networks, flood prevention and early warning, and can effectively monitor the change state of water level velocity and flow, and provide accurate flow information for monitoring units.


雷达流量计

▋ Main Function


Function

Description

Water level monitoring

Set automatic water level monitoring according to the collection cycle

Flow collection

Flow rate monitoring, flow calculation, water inlet and discharge flow monitoring

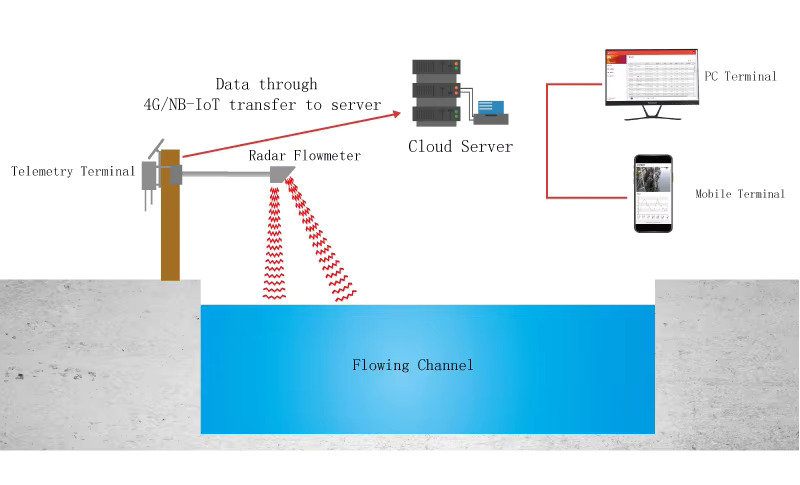

Data transmission

Data is sent over RS485


▋ Product Characteristics

        BOY-WF08 radar flowmeter has the characteristics of low power consumption, small size, high reliability and easy maintenance. The measurement process is not affected by temperature, sediment, river pollutants, floating objects on the surface and other factors.


syxg

gwdx

dggsj

Wide applicability

Stable performance

Low power consumption

Non-contact measurement, not easy to be corroded by sewage, not affected by sediment

All-weather work, not affected by temperature, strong anti-interference ability

The measurement run and interval modes are combined for solar-powered unattended stations

gjd

gkkx2

jkff

High precision

High protection level

Interface richness

High signal-to-noise ratio, small blind area, short wavelength, harmless to human body and environment

IP68 waterproof design, lightning protection design, suitable for all kinds of field environment

A variety of interface modes, a variety of communication protocols, compatible with most of the RTU at home and abroad


▋ Product Parameter


Water level parameter

Wide applicability Speed range

0.1 ~ 20m/s(depending on water flow)

Velocity measurement accuracy

±1%FS

Velocity resolution

0.01m/s

Ranging range

0.4-40m

Ranging accuracy

±1cm

Range resolution

1mm

Transmitting frequency

24.000 ~ 24.250GHz

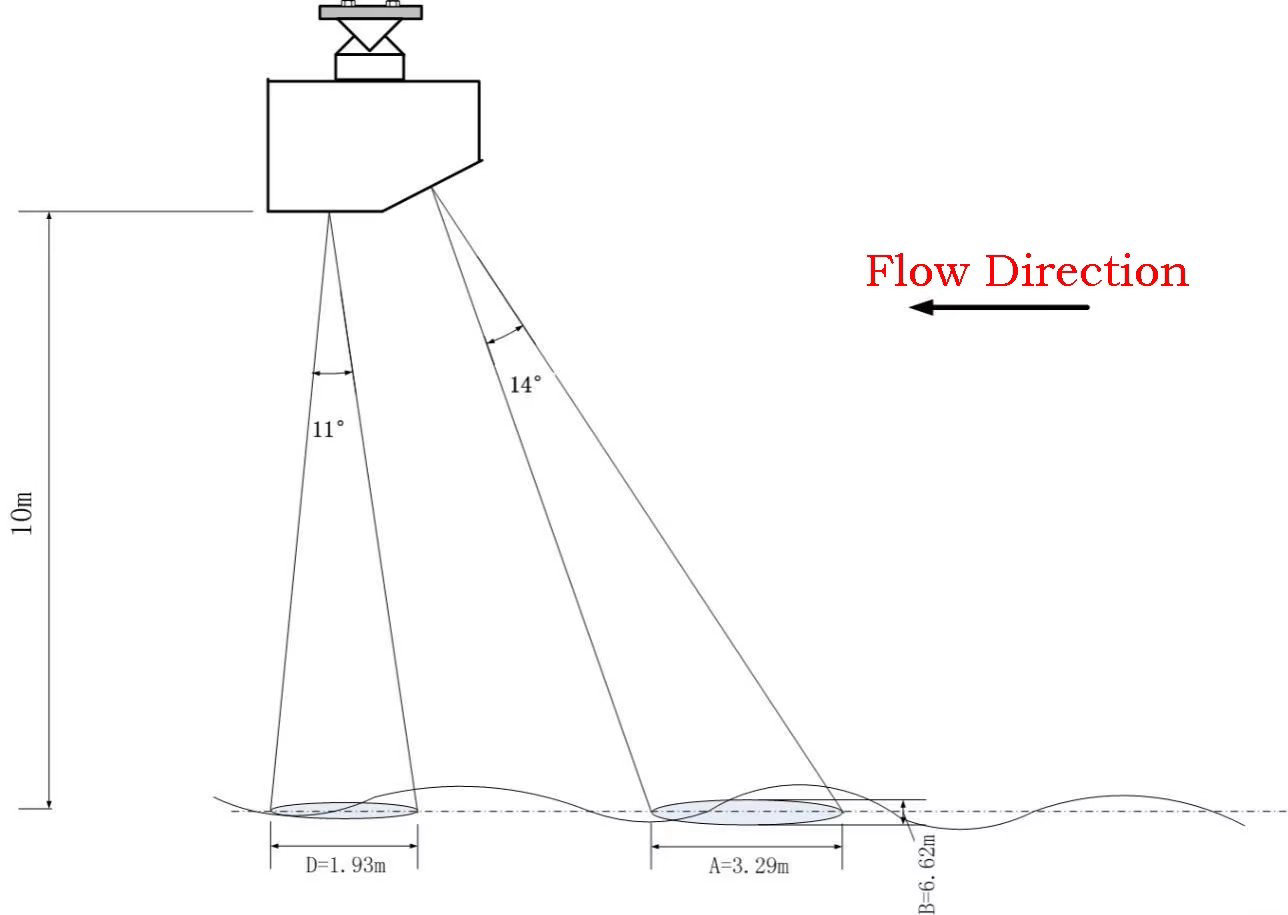

Antenna pattern

Flow rate: 14 x 32゜ Water level: 11 x 11゜

Interval time

1-5000min

Interface type

Communication interface

RS-485

Communication protocol

MODBUS-RTU/Custom ASCII protocol

Mains supply

Supply voltage

DC7 ~ 28V

Standby current

< 1mA/DC12V

Working current

< 240mA/DC12V

              Environmental parameter

Operating temperature

-40° to 85 °

Waterproof class

IP68



雷达2.jfif


▋ Measurement Method

      BOY-WF08 radar flowmeter is mainly composed of radar current meter and radar water level meter. The current meter is used to collect the fluid surface velocity, and the average flow rate of the water through the model calculation is obtained, and the outflow section area is calculated by combining the water level and section information measured by the water level meter. The flow rate is obtained by the formula flow = average flow rate × flow through section area × correction factor. The correction coefficient is calculated according to the standard value obtained from the actual measurement environment.

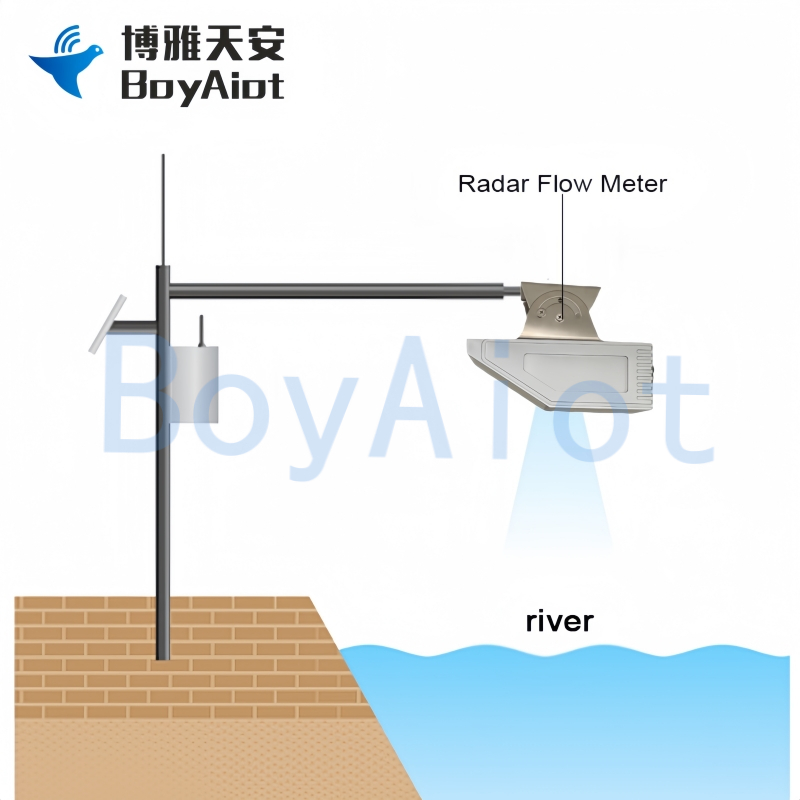

▋ Installation Method



1, When the equipment is installed, the probe can not be blocked, which will affect the measurement accuracy.

2, When installing, try to ensure that the upper surface of the shell is horizontal, and installed in the middle of the channel.

3, The current meter beam is recommended to face the direction of the incoming water, and the horizontal Angle with the direction of the water flow is 0 degrees.

4, The current meter is only affected by the dynamic target, the channel hardening treatment without weeds or trees, even if the beam shines on both sides of the channel will not affect the flow measurement.

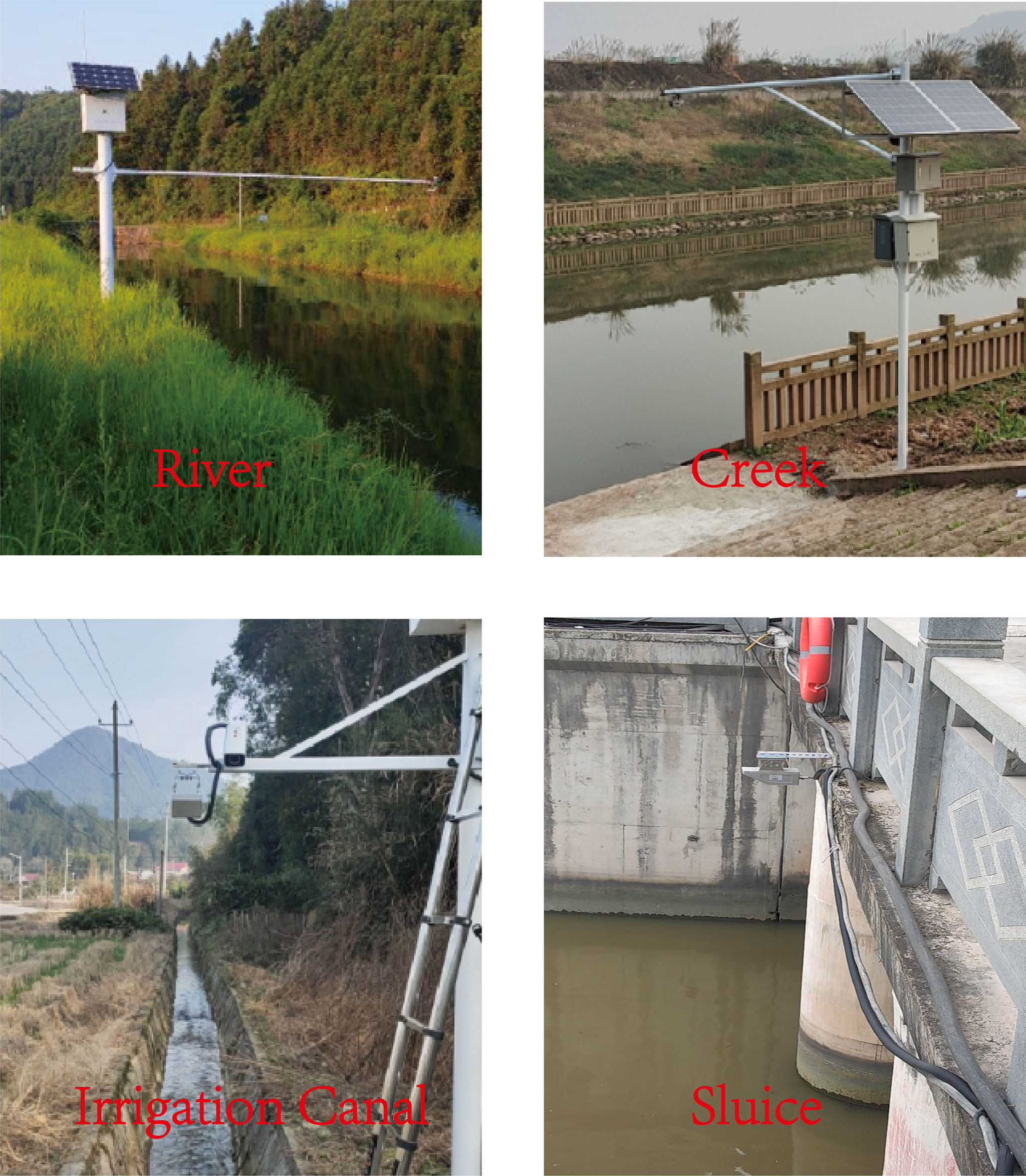

▋ Application

        The equipment can be used in river, irrigation channel, underground drainage network, flood prevention and early warning and other occasions.



▋ FAQ

1.  Why did the host computer not receive any data?

Check whether the power supply voltage is 7 to 32VDC, the device cable connection, and the communication mode, serial port number, and baud rate are correct. Check whether the communication protocol is operated according to the instructions, and check whether the instructions are correct;

2. Why is the measurement value always zero?

Check whether the radar probe is aligned with the measured target; Whether the measuring distance is within the reasonable range of the probe test.

3. Why do the measured values frequently change dramatically?

Check whether the power supply voltage is too low; Whether there are obstacles in the measuring range; Whether the probe is installed firmly, and whether the radar flowmeter is installed in parallel horizontal planes;

4. Why is the measurement value not updated?

Check whether the water surface freezes due to seasonal reasons; Check whether the measurement is inaccurate due to the low water period or the swing of the main trough causing the radar wave to cover the ground.

5. The measured water velocity was visually below 0.60m/s, but the reading was higher than expected.

Check the effect of wind on the water surface. Wind may have an effect on the measurement of low speed water flows, such as those below 0.50m/s. Try to measure by pointing the radar speed probe at the same spot.
