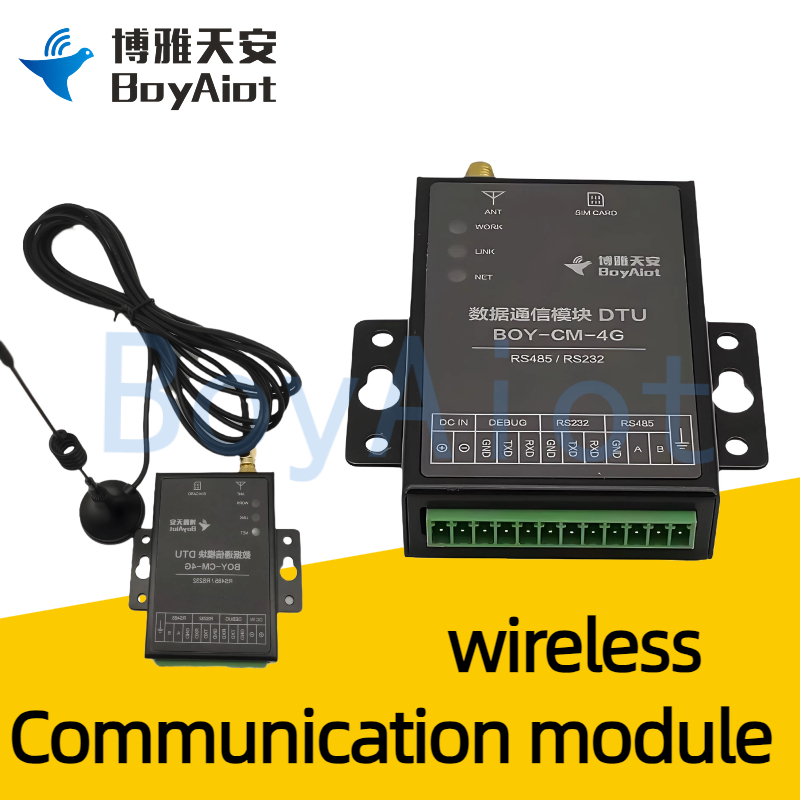

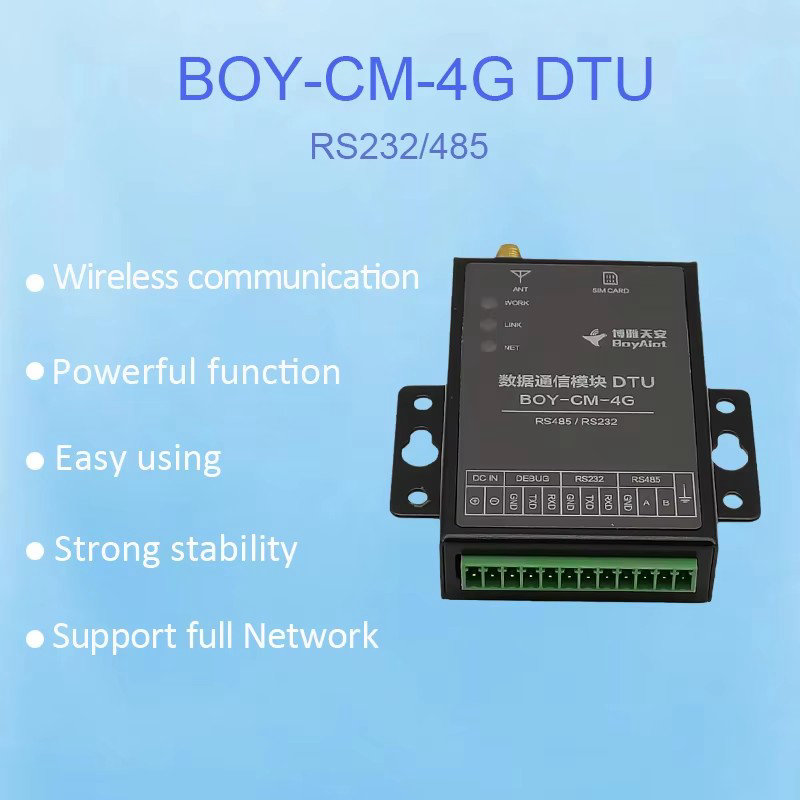

BOY-CM-4G DTU wireless Communication module

BOY-CM-4G DTU wireless Communication module

Wireless data communication equipment between the field serial device and the central control system
Product features:

1. Rich interface, support standard RS232, RS485 interface;

2. Secure transmission, support 4G/NB-IOT communication, support up to 4 centers synchronous transmission;

3. Stable and reliable, ultra-low power consumption design, anti-interference

Cellphone(Whatsapp/Wechat):
Mr. Lin: +86 13960777235
 technical consultation

▋ Product Description

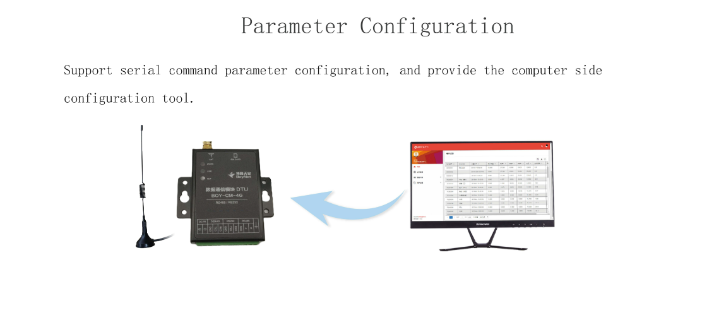

       The BOY-CM communication module uses the public cellular network to provide users with wireless long-distance data transmission function, integrated serial port transparent channel, real-time clock RTC, support parameter configuration and upgrade.



▋ Product Parameter


parameter
Description
Power Supply Range
DC 6-35V
Protection Level
IP 30
Application
data transfer and receiver
Network Protocol
TCP & UDP & MQTT
Interface Type
RS485 & RS232
Weight
200±5g
Operating Temperature
-30℃ ~ +75℃
Antenna Impedance
50Ω

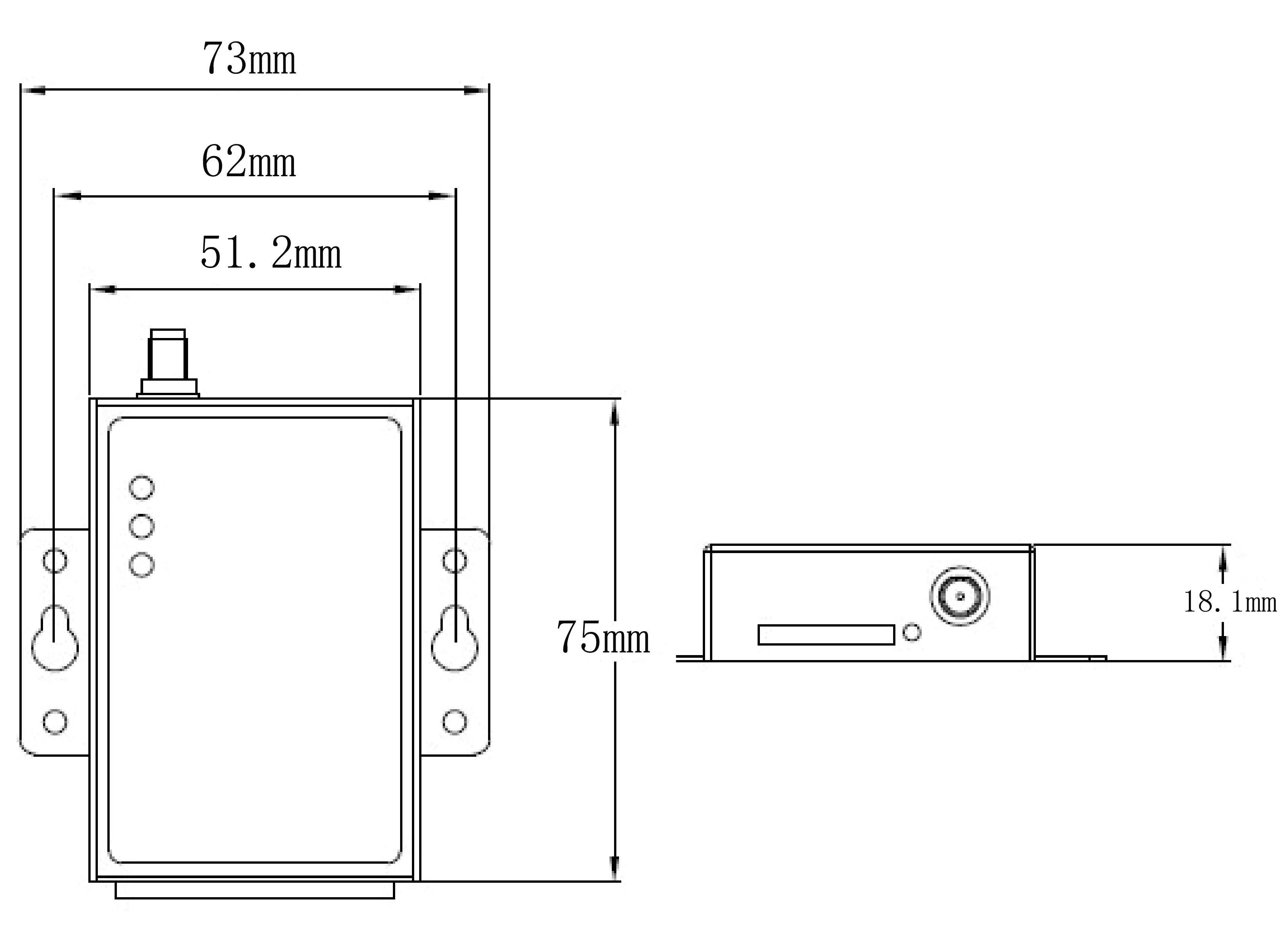

▋ Product Size



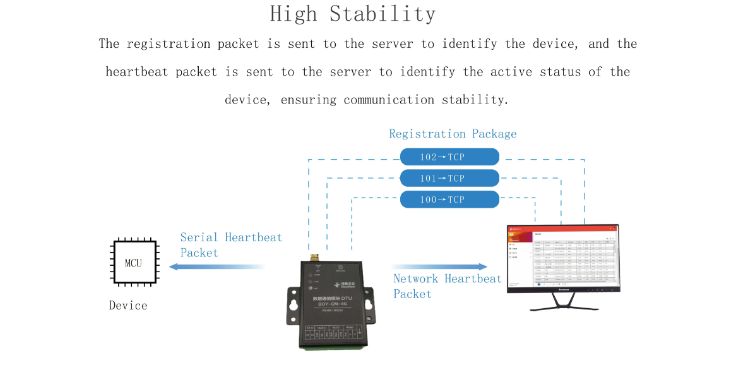

▋ Product Details

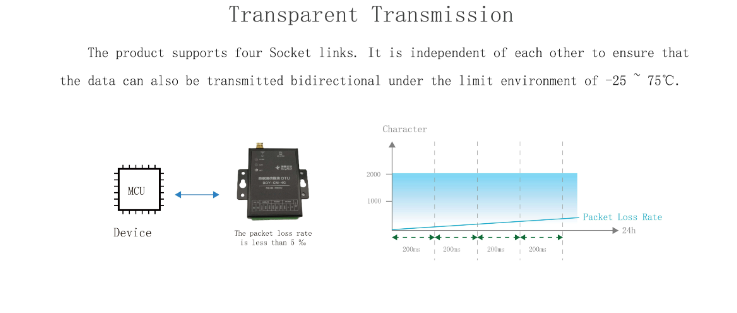

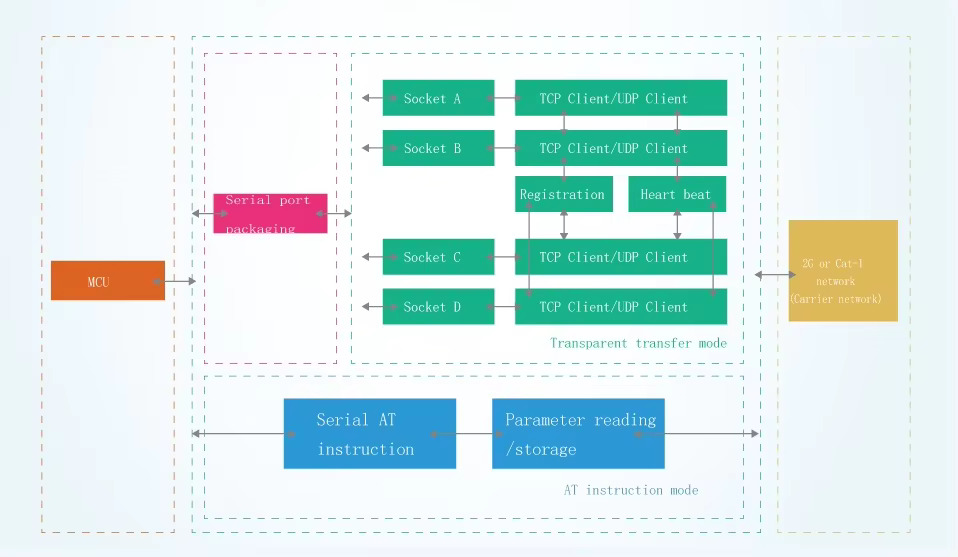

        BOY-CM communication module is based on Cat-1 or 2G network to realize remote data communication between MCU equipment and monitoring center of sub-station. Through the simple setting of the server. you can easily use this product to realize the bi-directional data transparent transmission of MCU serial port to the server. Stable and reliable operation,  widely used in sensor, PLC, serial device, collector data transparent transmission.

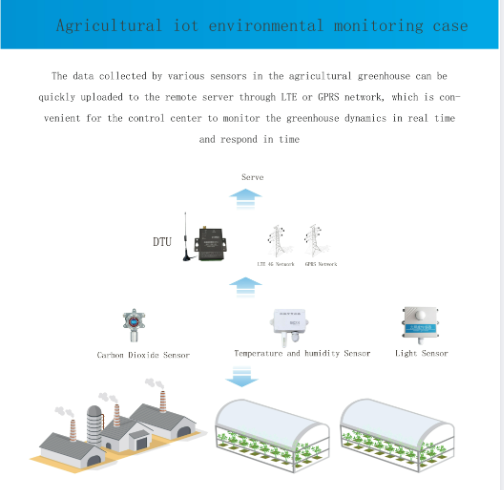

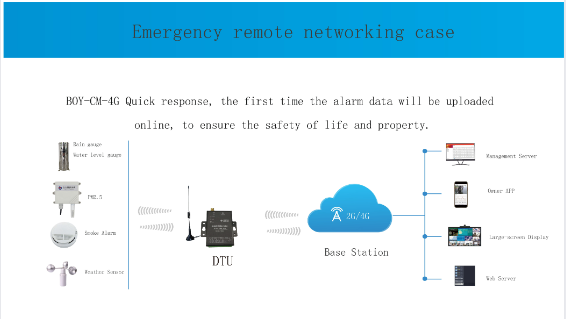

▋ Application



▋ FAQ

1. The PWD indicator is not blinking

Whether the power supply is energized, check the access power supply; The system is down. Contact the developer.

2. The DATA indicator blinks rapidly

Check whether the server address and port number are correct. Make sure the SIM card is connected to the Internet.

3. The serial port does not receive any reply from the server

Check whether the interface is connected correctly; When using heartbeat packets, you need to set the forwarding interface.

4. Packet loss occurs during the communication

Check whether data is sent too quickly. Check whether data is too large. Whether the SIM card data is used up; Make sure the antenna is connected: Contact the developer to check.

5. The configuration does not take effect

After configuring parameters, click the Save parameter button.

6. The serial port upgrade tool or configuration tool fails to enter the configuration mode

Check whether the baud rate of the serial port is correct. Check whether the serial port is selected correctly.
