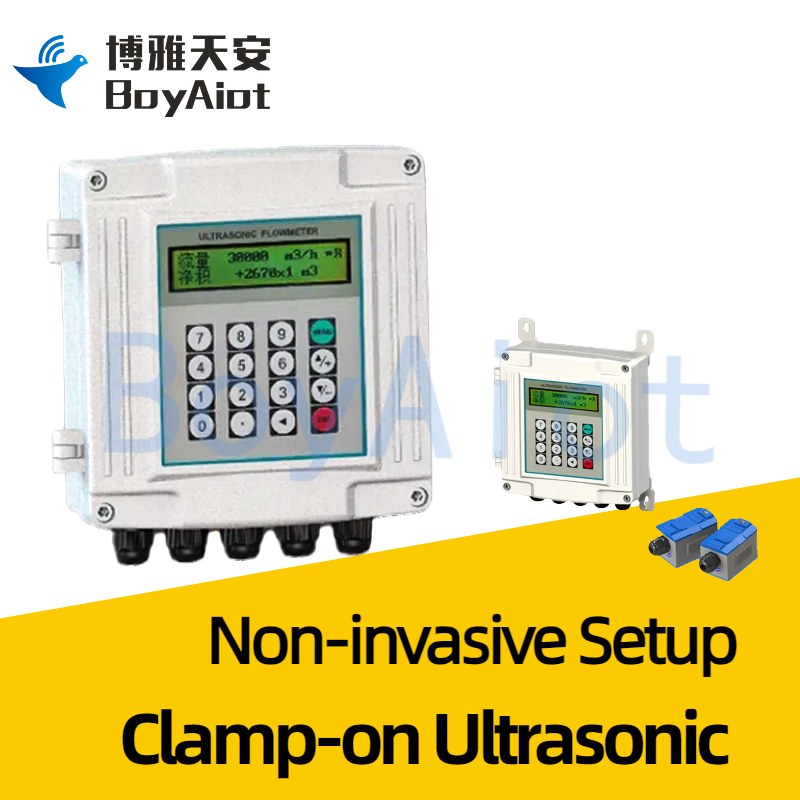

BOY-WF11 external clamp-type ultrasonic flowmeter

BOY-WF11 external clamp-type ultrasonic flowmeter

Product features:

1. It is composed of a host and an external clip-on sensor

2. No need to break the pipe to achieve non-destructive installation

3. Easy and quick installation

Cellphone(Whatsapp/Wechat):
Mr. Lin: +86 13960777235
 technical consultation

▋ Product Description

         BOY-WF11 external clamp-type ultrasonic flowmeter is composed of a host and an external clamp-type sensor. Just paste the external clamp sensor on the surface of the pipeline to complete the flow measurement of various liquids, compared with the traditional flow meter, it does not need to break the pipe and flow, convenient installation, and truly achieve non-destructive safety.



▋ Product Parameter


Parameter

Description

Principle
ultrasonic time difference principle
Current output
4~20mA or 0~20mA, impedance 0~1K, accuracy 0.1%
Pulse signal
Positive, negative, net flow and heat accumulation pulse, 0CT output
Frequency signal
Optional between 1-9999Hz, 0CT output
Data interface
Isolated RS485 serial interface,  support MODBUS, M-BUS and other protocols
Measuring medium types
Seawater, industrial sewage, acid lye, alcohol, beer, various oils, etc
Measuring temperature

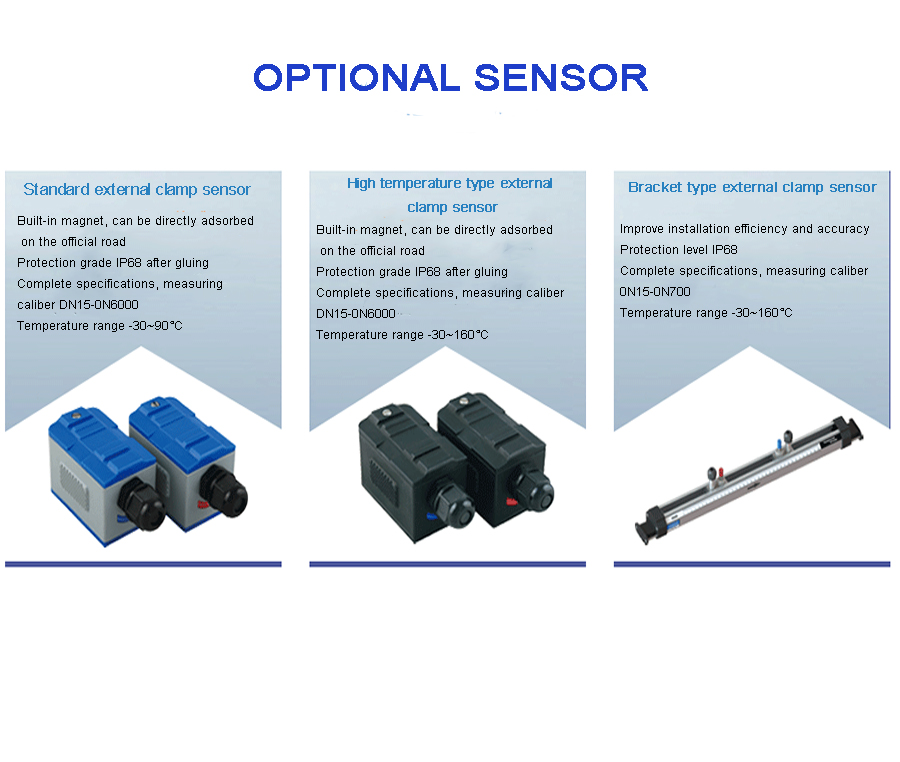

Standard probe :-30~ 90°C, high temperature probe :-30~160°C
Measurement turbidity
10000ppm and small bubble content
Measuring flow rate
0~ 10m/s
Measurement flow direction
Positive and reverse two-way measurement, and can measure net flow or heat
Power consumption
Less than 1.5W
Measurement period
0.5 seconds/time  128 sets of data


▋ FAQ

1， How fast can you delivery goods?
Always 7-15 working days since order confirmed, if need goods urgently, we can arrange expedited production.

2， How do you ensure good product quality?
We have a complete quality control system; All of our products are fully checked by IQC, OQC departments before ship to our clients.Besides calibartion, each set product we also do temperature compensation and aging test before shipment, so the quality is guaranteed.

3， What is the warranty of your products?
12 month from shipment date, for non-man-made damages.

4， Can we use our logo on the products? Do you provide customized products?
Yes.we can use your logo, we can provide customized products per requirement. OEM/ODM is welcome

5，What is yor MOQ?
We have no MOQ limits, small quantity order is acceptable.
