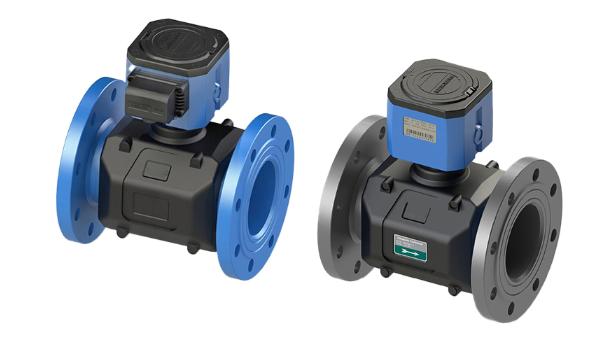

BOY-WF02 Two-channel ultrasonic water meter

BOY-WF02 Two-channel ultrasonic water meter

Product features:

1. Highly integrated, dual channel design

2. High range ratio, ultra-low power consumption, stable and reliable operation

3. IP68 protection grade, suitable for harsh working environment, widely used

Cellphone(Whatsapp/Wechat):
Mr. Lin: +86 13960777235
 technical consultation

▋ Product Description

         BOY-WF02 Ultrasonic water meter is a highly integrated two-channel ultrasonic water meter. This series of ultrasonic water meter has the advantages of high range ratio, ultra-low power consumption, stable and reliable operation. Each component of the water meter has IP68 protection grade, which can be used in a variety of harsh working environments, and is widely used in urban water supply, water resources management, agricultural irrigation, landscaping, industrial production and other industries, whichis an excellent choice for pipeline water flow metering and charging.

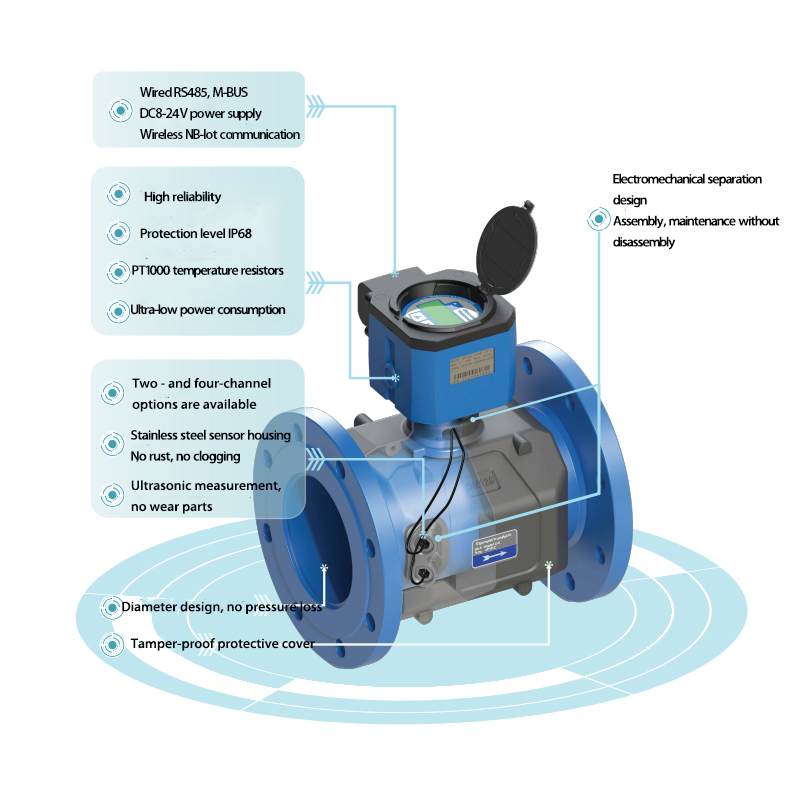

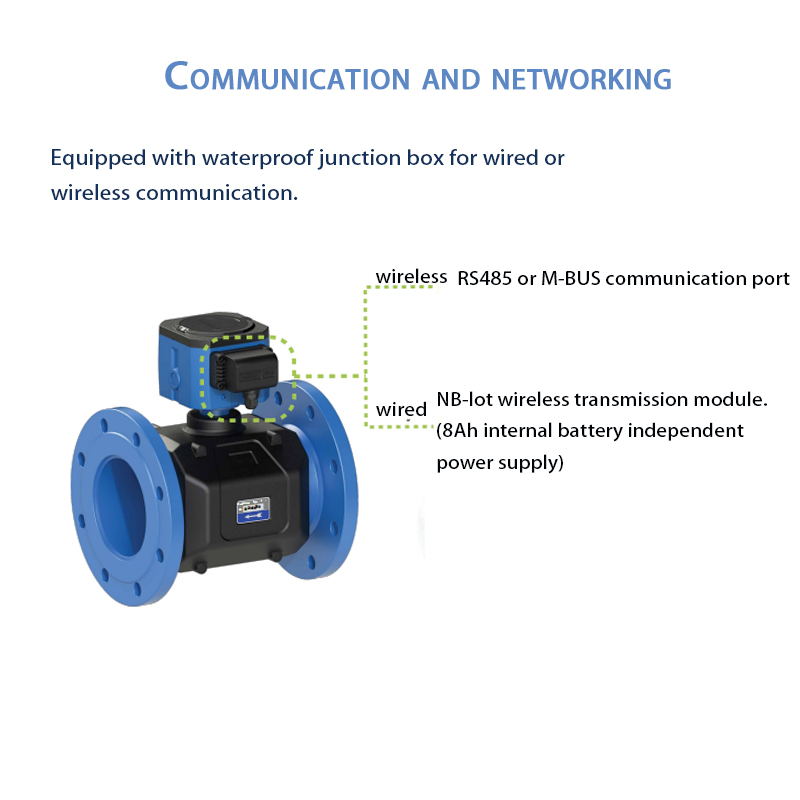

▋ Product Characteristics

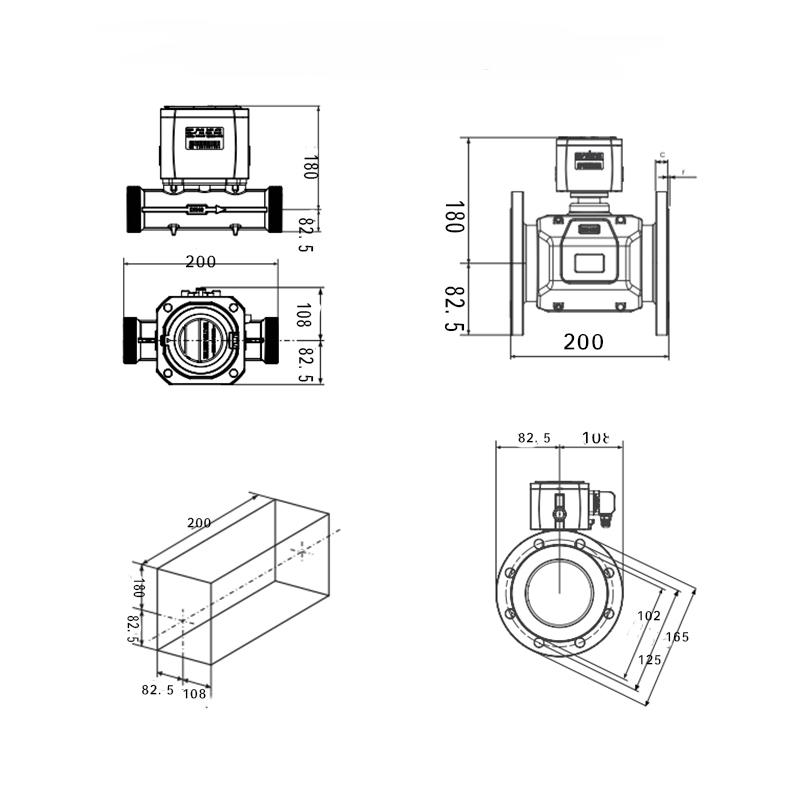

▋ Product Size

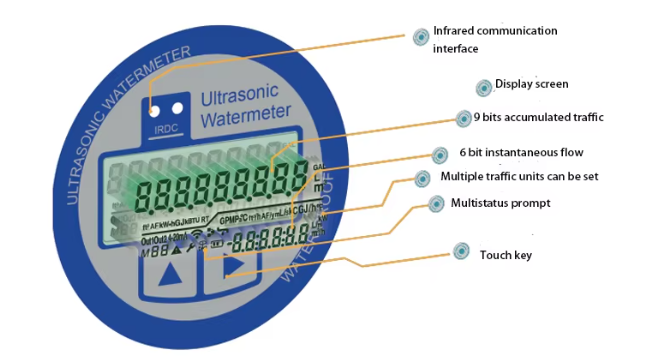

▋ Display Operation


▋ Product Parameter


Parameter
Description
Measuring fluid
Water, sewage, sea water (other liquids need to be customized)
Fluid temperature
0.1-30℃
Working environment
Temperature: -30-45℃; Humidity 100%(RH)
Bearing capacity
1.6MPa, 2.5MPa is optional
Sensitivity level of upstream flow field
U3
Sensitivity level of downstream flow field D0
Communication interface
RS485/USART/ infrared, optional M-BUS; NB-iot wireless transmission
Class of protection
IP68
Local display
9 bit cumulant, 6 bit instantaneous flow
Measuring period
 Measurement state: 1 time/second (can be set); Verification status: 4 times/second
Power dissipation Standard state < 30uA, the longest continuous work for more than 20 years
Power supply
2 internal lithium batteries (3.6V,8Ah)/ external DC8-24V DC power supply
Electromagnetic compatibility class
Electromagnetic compatibility class

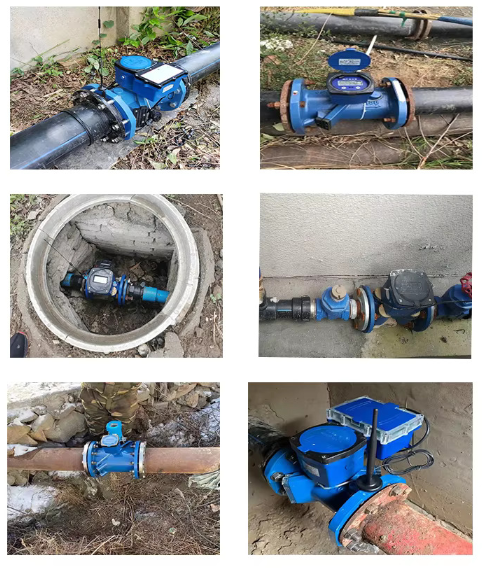

▋ Application



▋ FAQ

1，How fast can you delivery goods?
Always 7-15 working days since order confirmed, if need goods urgently, we can arrange expedited production.

3， How do you ensure good product quality?
We have a complete quality control system; All of our products are fully checked by IQC, OQC departments before ship to our clients.Besides calibartion, each set product we also do temperature compensation and aging test before shipment, so the quality is guaranteed.

4， What is the warranty of your products?
12 month from shipment date, for non-man-made damages.

5， Can we use our logo on the products? Do you provide customized products?
Yes.we can use your logo, we can provide customized products per requirement. OEM/ODM is welcome

6， What is yor MOQ?
We have no MOQ limits, small quantity order is acceptable.

7， What's the transport?
Express such as DHL, Fedex, TNT, UPS for freight prepaid, also can use your own couier account to do the freight collect. Formore goods we can arrange by air or by Sea.
