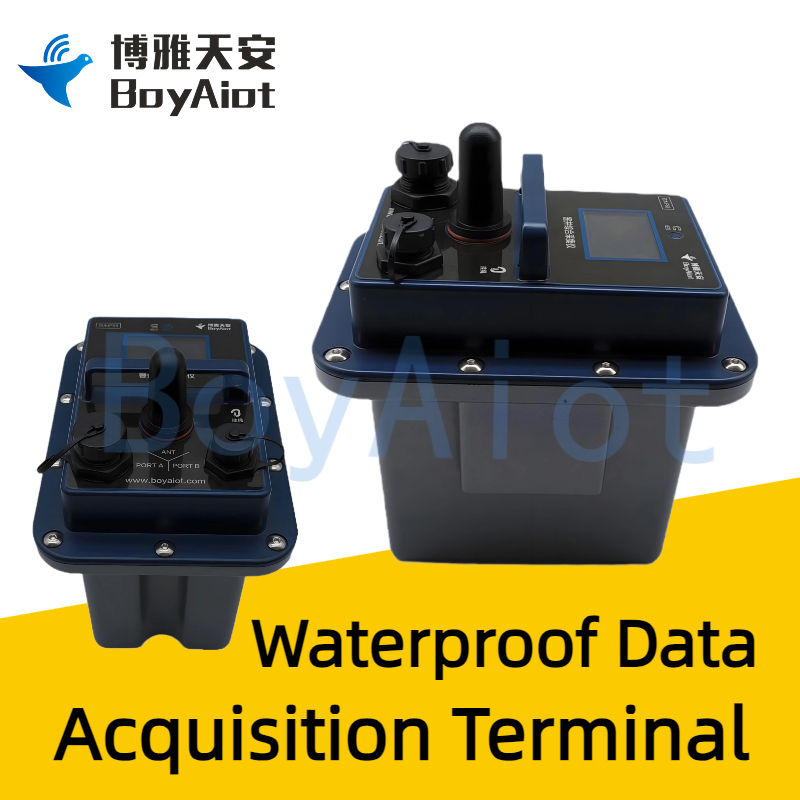

BOY-S502-EX Waterproof Data acquisition terminal

Waterproof, explosion-proof, high risk environment data collection first choice

Product features:

1.Safe and explosion-proof, IP68 protection grade, high temperature and corrosion resistance, support high risk environment applications

2.A variety of communication methods, support 4G/NB-IoT multiple communication methods, support multi-center transmission

3.High reliability, anti-electromagnetic interference, no interference to the instrument

Previous product: BOY-S502-LR LoRa Telemetry terminal

Next product: BOY-S502-NET Network video telemetry terminal

Cellphone(Whatsapp/Wechat):

Mr. Lin: +86 13960777235

technical consultation

▋ Product Introduction

BOY-S502-EX is an integrated 4G DTU, lithium battery and low-power iot data acquisition terminal; Built-in large-capacity lithium battery, protection level IP68, equipped with liquid crystal display, support flow, water level, water quality data collection and transmission, can meet the needs of 5 years of data storage, while supporting on-site Bluetooth debugging, remote configuration and upgrade function.

▋ Main Function

Function	Description
Data acquisition	Water level, flow, water quality and other information
Data storage	Process, encode and store the collected data
Data display	The collected data is displayed locally
Parameter setting	Supports local parameter setting, remote parameter setting and Bluetooth wireless configuration
Bluetooth communication	Built-in Bluetooth Bluetooth communication, can achieve on-site Bluetooth debugging
Data read	Supports remote and local historical data extraction
Communication mode	Support 2G/4G/NB-IOT and other communication methods, support the main and standby channel automatic switching, support multi-center data transmission
Communication protocol	Comply with the requirements of SL651-2014 Hydrological Monitoring Data Communication Protocol
Power management	Built-in large capacity lithium battery, long standby
Communication mode	Support 2G/3G/4G and other communication modes, support the main and standby channel automatic switching, support multi-center data transmission
Low-power operation	Supports low-power sleep mode
Class of protection	IP68 protection grade, high temperature and corrosion resistance

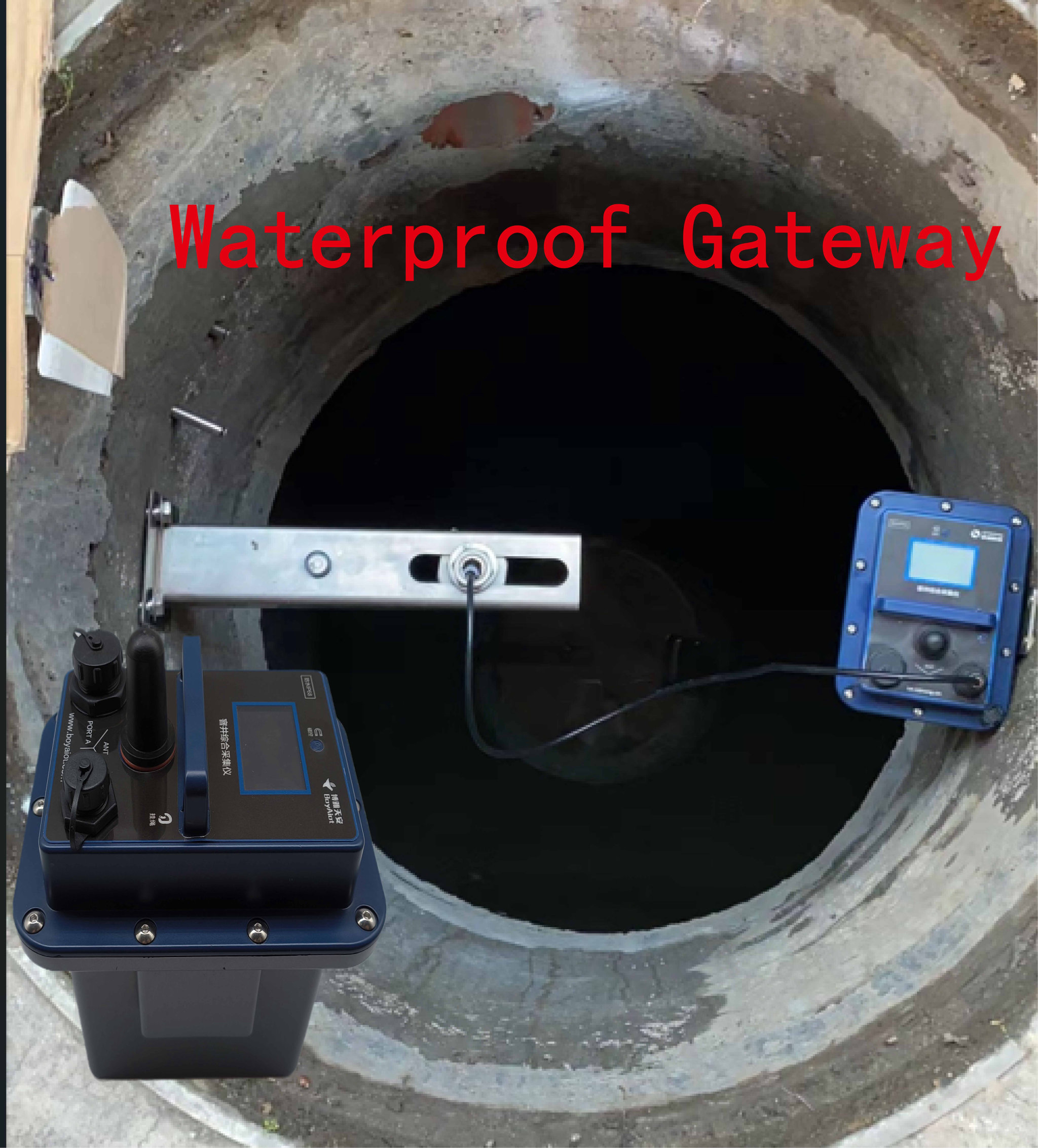

Installation mode	L-shaped bracket hanging wall installation, easy installation and maintenance

▋ Product Characteristics

BOY-S502-EX conforms to national standard communication standards; Support 4G/NB-IOT and other communication methods, support the main and standby channel automatic switching, support a variety of power supply modes, strong environmental adaptability, not attached to any system.


Explosion-proof safety	Compliant with communication standards	Multiple communication modes
P68 protection grade, high temperature and corrosion resistance, support high risk environment applications	Conforms to transmission standards such as HJ212-2017 and SL651-2014	Support 4G/NB-IoT multiple communication modes, support multi-center transmission Conforms to transmission standards such as HJ212-2017 and SL651-2014

Visual display	High reliability	Strong adaptability
LCD screen parameter configuration and data view, convenient on-site installation and maintenance	Integrated die-cast aluminum housing, electromagnetic interference, no interference to the instrument	It is easy to install and supports various power supply modes, suitable for different application scenarios

▋ Product Parameter

Hardware system
Processor	32-bit ARM Cortex-M4 processor core
Data storage	16MB
Wireless parameter
Wireless module	Industrial grade wireless module
Standards and frequency bands	Support: FDD-LTE, TDD-LTE, CDMA2000/EVDO, WCDMA, TD-SCDMA, GPRS/EDGE Optional single mode, multi-mode or full network communication
Theoretical bandwidth	FDD-LTE: downstream speed 150Mbps, upstream speed 50Mbps TDD-LTE: 61Mbps downstream and 18Mbps upstream WCDMA: downstream rate 42Mbps, upstream rate 5.76Mbps TD-SCDMA: downstream rate is 2.8Mbps, upstream rate is 2.2Mbps CDMA2000/EVDO: downstream rate is 3.1Mbps, upstream rate is 1.8Mbps GPRS/EDGE: Rate 171.2kbps/384kbp
Transmitting power	≤24 dBm
Receiving sensitivity	≤109 dBm
Screen parameter
Colour	Black letters on white background
Display size	2 inches 44mm(W) x 28mm(H)
Resolution	128*64
Backlight mode	LED
Operating temperature	-25℃ to +65℃
Storage temperature	-25℃ to +65℃
Interface type
Power interface	Industrial grade terminal interface, built-in power reverse protection and overcurrent // overvoltage protection
Serial port	1 group of RS232 ports (optional) 1 group of RS485 ports (Optional)
Serial port	Data bits: 5, 6, 7, 8 bits Stop bits: 1, 1.5, and 2 Check: none check, odd check, even check Serial port rate: 1200-115200 BPS
Application interface	1 set of analog input interfaces (optional) 12-bit AD, supports 4-20mA current signal and 0-5V voltage signal
USIM Card interface	Standard self-propelled Micro Sim card holder with 1.8V/3V USIM card and built-in 15KV ESD protection
Antenna interface	SMA interface, external high-gain waterproof antenna
Bluetooth communication	Built-in Bluetooth communication module
Mains supply
Standard power supply	DC 3..6V
Power supply range	DC3.4-4.2V
Working current	< 8mA(excluding communication)
Static duty current	< 0.2 mA
Charge management	Built-in charging module, support solar panel floating charge power supply
Battery	Built-in 52000 mAh disposable battery (standard) or 20000mAh rechargeable lithium battery (optional)
Physical characteristics
Shell protection	Class IP68, enclosure and system securely isolated
Overall dimension	Φ117mm, height 172mm (not including antenna and mounting parts)
Weight	Approx. 2000g(excluding antenna, mounting parts and packaging)
Environmental parameter
Operating temperature	-15℃ to +55℃
Storage temperature	-25℃ to +65℃
Relative humidity	95%RH(no condensation cream)

▋ Measurement Method

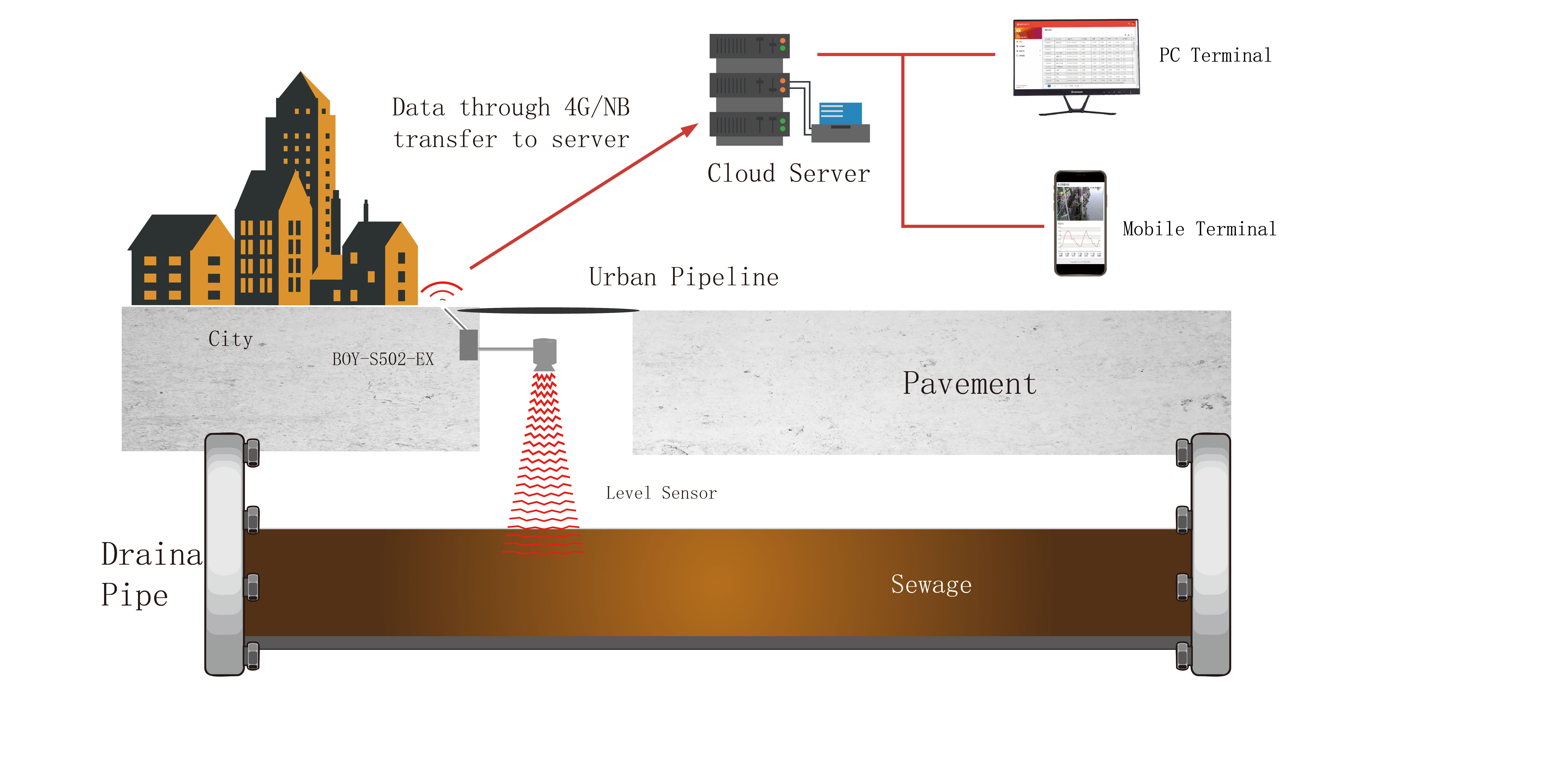

BOY-S502-EX waterproof data acquisition terminal can be applied to gas hazardous places, connect front-end sensors through interfaces, and report to cloud servers through communication methods such as GPRS/4G/NB-IoT, providing data support for standardizing safe production management, ensuring regional safety of chemical plants, and quickly handling safety emergencies. Improve the monitoring and early warning capacity of hazardous chemicals.

▋ Application

Suitable for: river/reservoir hydrological monitoring, mountain flood disaster monitoring, water resources monitoring, municipal urban management monitoring, underground water supply and drainage monitoring, Marine tide station, buoys environmental data monitoring and other real-time monitoring scenarios.

▋ FAQ

1, the terminal sampling sensor data is wrong?

A: The sensor protocol may not match. Check the sensor model selection box of the terminal. If the model is not available, contact the manufacturer.

2. How to determine whether the terminal wireless network is connected properly?

A: The signal strength indication at the top right of the terminal display screen is usually greater than 1 bar before it can be used normally. If there is no signal, check the SIM card; If the signal strength is too weak, adjust the installation position.

3, the terminal network connection is normal, but why can't connect to the environmental protection platform?

A: Ask the platform manager to make sure the center address and port are correct, and confirm that the communication protocol is consistent.

4. How long does the terminal send data?

A: By default, the terminal reports a data message at an interval of one hour. You can adjust the interval as required.

5. Terminal power supply mode? How long does the power last?

A: The terminal comes with 52AH lithium battery. The terminal itself consumes very little power, and the static current is less than 1mA. The power supply time depends on the power consumption of the supporting sensor and the sampling and sending interval.
