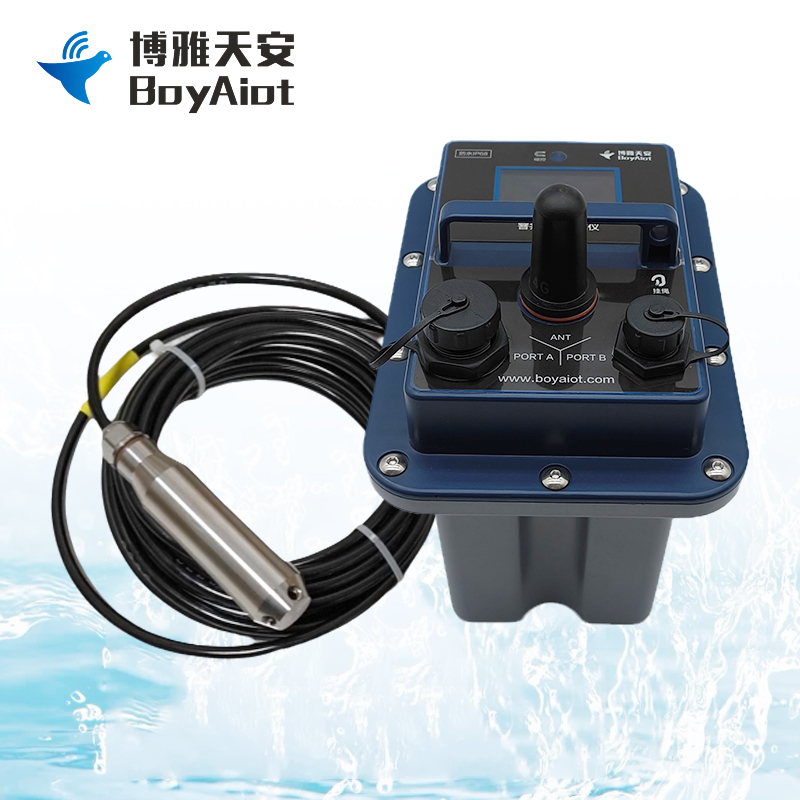

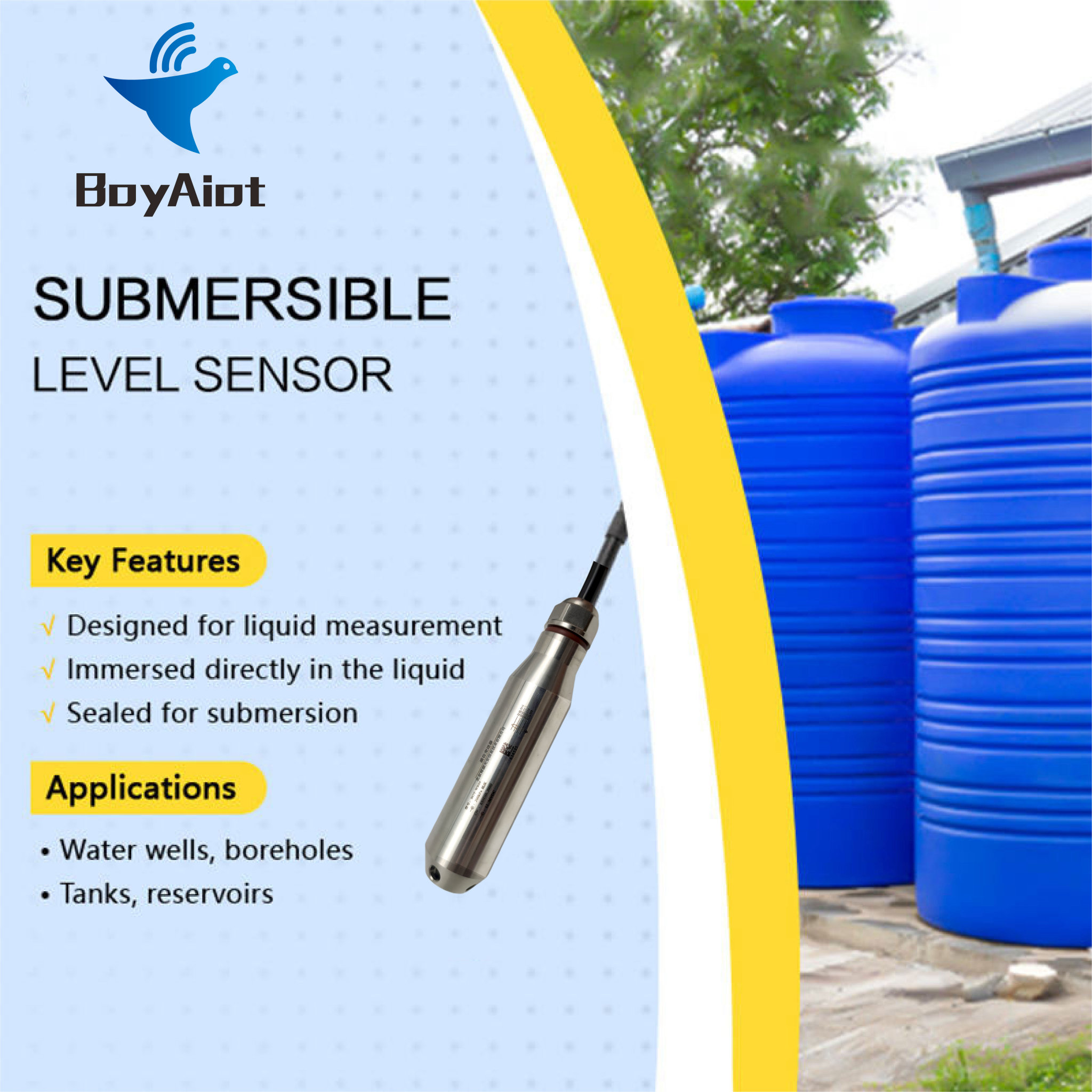

BOY-WR04-EX Submersible liquid level monitoring device
Product features:
1. Strong anti-interference, diaphragm isolation technology, intercept frequency design.
2. Wide adaptability, integrated chip, wide voltage power supply, current and voltage limiting protection.
3. Cost-effective, small structure, easy to install.
▋ Video Description
▋ Product Description
BOY-WR04-EX submersible liquid level monitoring device uses OEM pressure sensor with stainless steel isolation diaphragm as signal measurement element, and is automatically tested by computer. The zero point and sensitivity temperature compensation are carried out in a wide temperature range by laser resistance adjustment process. The amplifier circuit is located in the dry stainless steel housing and converts the sensor signal to the standard output signal. The submersible liquid level monitoring device has the advantages of anti-interference, small temperature drift, high measurement accuracy, good stability and long life. Widely used in river, reservoir, groundwater, water supply and drainage, sewage treatment and other water level monitoring.
| Function | Description |
| Water level collection | Collection period The water level is collected periodically |
| Data transmission | Data is sent over RS485 |
▋ Product Characteristics
BOY-WR04-EX submersible liquid level monitoring device has the advantages of anti-interference, small temperature drift, high measurement accuracy, good stability and long life.
 |  |  |
| Strong anti-interference ability | Fast response speed | Current limiting protection |
Lightning protection, cut frequency interference design | Amplifier circuit adopts imported integrated chip, wide voltage power supply | Wiring reverse and overvoltage protection |
 |  |  |
| Responsive | Easy to install | Good stability |
Grade A diffused silicon pressure sensor is used | Cable connection, put directly into the field | The amplifier circuit adopts the American integrated chip |
▋ Product Parameter
| Pressure type water level gauge | |
Water level parameter | |
Measuring medium | Liquid (compatible with contact material) |
Measuring range | 0 ~ 10m (customizable) |
Accuracy level | 0.1%FS, 0.25%FS, 0.5%FS |
Working condition | Medium temperature -40 ~ 85℃ |
Temperature compensation | -10 ~ 70℃ |
Stability performance | ±0.1% FS/ year |
Overload capacity | 200% full scale |
Temperature drift | ±0.01% FS / ℃ |
Environmental parameter | |
Supply voltage | 12-36VDC |
Ambient temperature | -40 ~ 85℃ |
Physical characteristics | |
Overall weight | Probe ≈290g, cable ≈60g per meter |
Class of protection | IP68 |
Interface type | |
Power interface | Industrial grade terminal interface with built-in power reverse protection and overcurrent/overvoltage protection |
Serial port | 1 group of RS485 ports |
Data bits: 5, 6, 7, 8 bits Stop bits: 1, 1.5, and 2 Check: none check, odd check, even check Serial port rate: 1200-115200 BPS | |

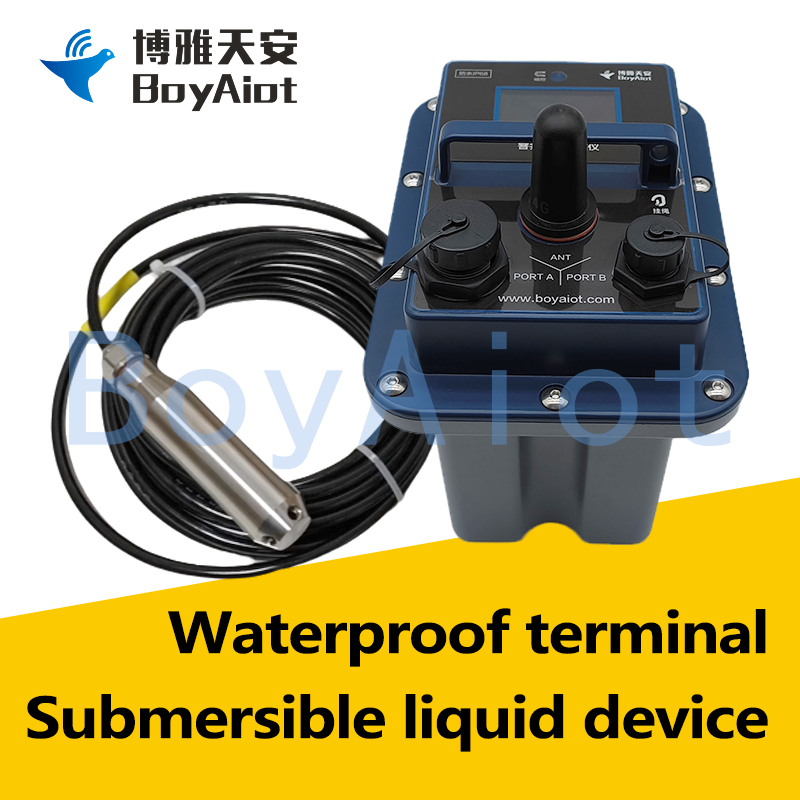

| Waterproof Data acquisition terminal | |
Hardware system | |
Processor | 32-bit ARM Cortex-M4 processor core |
Data storage | 16MB |
Wireless parameter | |
Wireless module | Industrial grade wireless module |
Standards and frequency bands | Support: FDD-LTE, TDD-LTE, CDMA2000/EVDO, WCDMA, TD-SCDMA, GPRS/EDGE Optional single mode, multi-mode or full network communication |
Theoretical bandwidth | FDD-LTE: downstream speed 150Mbps, upstream speed 50Mbps TDD-LTE: 61Mbps downstream and 18Mbps upstream WCDMA: downstream rate 42Mbps, upstream rate 5.76Mbps TD-SCDMA: downstream rate is 2.8Mbps, upstream rate is 2.2Mbps CDMA2000/EVDO: downstream rate is 3.1Mbps, upstream rate is 1.8Mbps GPRS/EDGE: Rate 171.2kbps/384kbp |
Transmitting power | ≤24 dBm |
Receiving sensitivity | ≤109 dBm |
Screen parameter | |
Colour | Black letters on white background |
Display size | 2 inches 44mm(W) x 28mm(H) |
Resolution | 128*64 |
Backlight mode | LED |
Operating temperature | -25℃ to +65℃ |
Storage temperature | -25℃ to +65℃ |
Interface type | |
Power interface | Industrial grade terminal interface, built-in power reverse protection and overcurrent // overvoltage protection |
Serial port | 1 group of RS232 ports (optional) 1 group of RS485 ports (Optional) |
Data bits: 5, 6, 7, 8 bits Stop bits: 1, 1.5, and 2 Check: none check, odd check, even check Serial port rate: 1200-115200 BPS | |
Application interface | 1 set of analog input interfaces (optional) 12-bit AD, supports 4-20mA current signal and 0-5V voltage signal |
USIM Card interface | Standard self-propelled Micro Sim card holder with 1.8V/3V USIM card and built-in 15KV ESD protection |
Antenna interface | SMA interface, external high-gain waterproof antenna |
Bluetooth communication | Built-in Bluetooth communication module |
Mains supply | |
Standard power supply | DC 3..6V |
Power supply range | DC3.4-4.2V |
Working current | < 8mA(excluding communication) |
Static duty current | < 0.2 mA |
Charge management | Built-in charging module, support solar panel floating charge power supply |
Battery | Built-in 52000 mAh disposable battery (standard) or 20000mAh rechargeable lithium battery (optional) |
Physical characteristics | |
Shell protection | Class IP68, enclosure and system securely isolated |
Overall dimension | Φ117mm, height 172mm (not including antenna and mounting parts) |
Weight | Approx. 2000g(excluding antenna, mounting parts and packaging) |
Environmental parameter | |
Operating temperature | -15℃ to +55℃ |
Storage temperature | -25℃ to +65℃ |
Relative humidity | 95%RH(no condensation cream) |
▋ Product Size
▋ Measurement Method
BOY-WR04-EX submersible liquid level monitoring device has the advantages of anti-interference, small temperature drift, high measurement accuracy, good stability and long life. Widely used in river, reservoir, groundwater, water supply and drainage, sewage treatment and other water level monitoring.
▋ Installation Method
When the liquid level fluctuation is large, measures should be taken to fix the probe part of the liquid level gauge, you can insert or install a steel pipe or PVC pipe larger than the diameter of the probe in the water, and open a number of φ5mm holes in the pipe at different heights in the opposite direction of the water flow, so that water can enter the pipe.
▋ Application

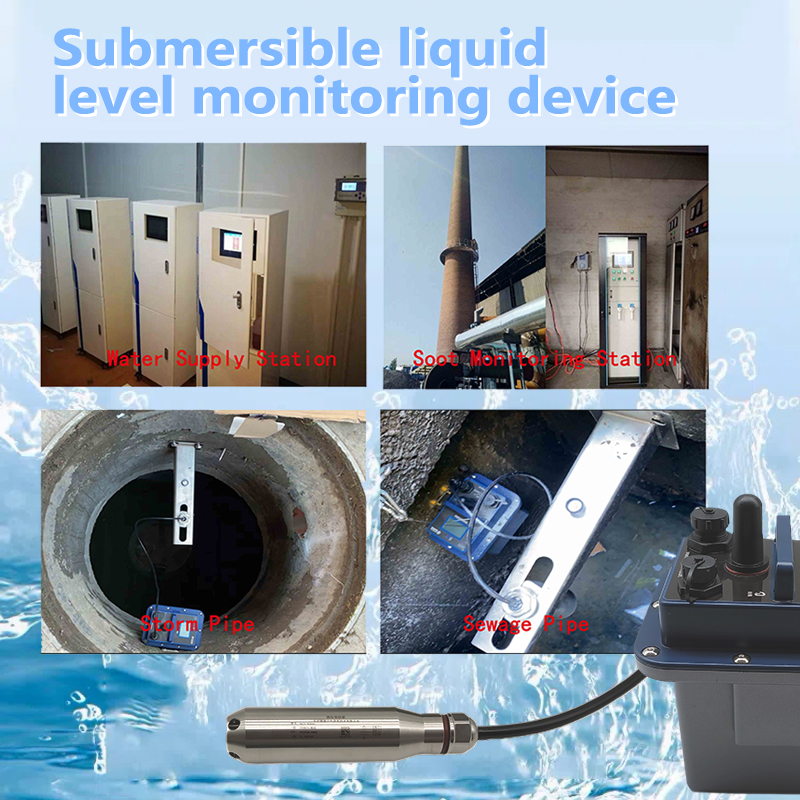

Suitable for: river/reservoir hydrological monitoring, mountain flood disaster monitoring, water resources monitoring, municipal urban management monitoring, underground water supply and drainage monitoring, Marine tide station, buoys environmental data monitoring and other real-time monitoring scenarios.
▋ FAQ
1. Equipment measurement principle?
A: When the sensor is put into a certain depth of the measured liquid, the pressure of the measured medium is introduced into the positive pressure chamber of the sensor, and the atmospheric pressure on the liquid surface is connected to the negative pressure chamber of the sensor through the cable airway to offset the front of the sensor, so that the sensor can measure the pressure, and the liquid level depth can be obtained by measuring the pressure
2. What is the range of the equipment?
A: The default measuring range is 0 ~ 10 meters, and the larger measuring range needs to be customized.
3. What is the measuring accuracy of the equipment?
A: The measurement accuracy is not higher than 0.5%, such as 10 meters range, the accuracy is 5cm.
4. Can the equipment be waterproof? Will water flooding damage the equipment?
A: Can be waterproof, equipment IP68 protection level.
5. Device communication method? What communication protocols are supported?
A: Supports RS485 communication and Modbus communication.
