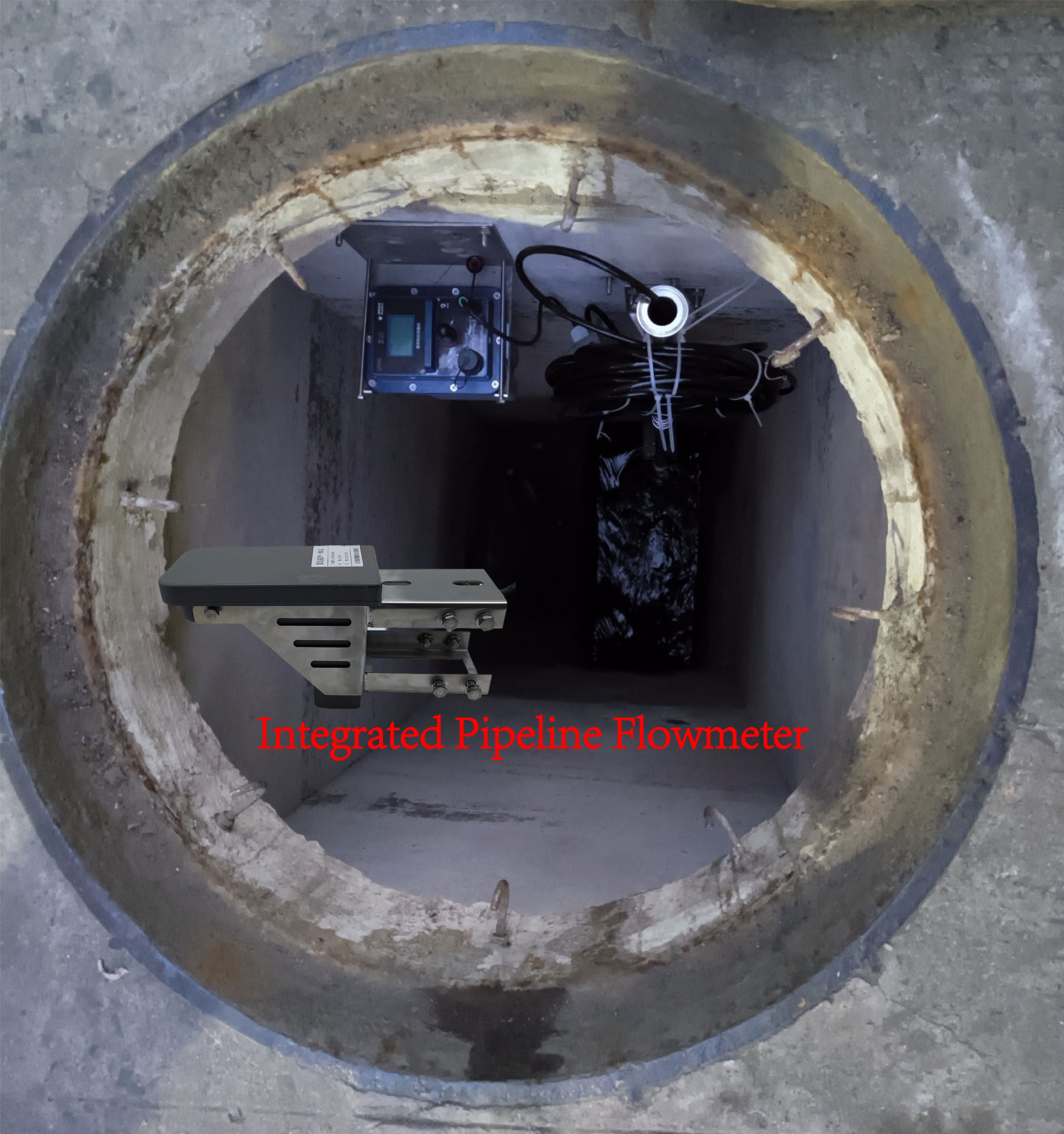

BOY-WF08-P Integrated Pipeline Flowmeter

BOY-WF08-P Integrated Pipeline Flowmeter

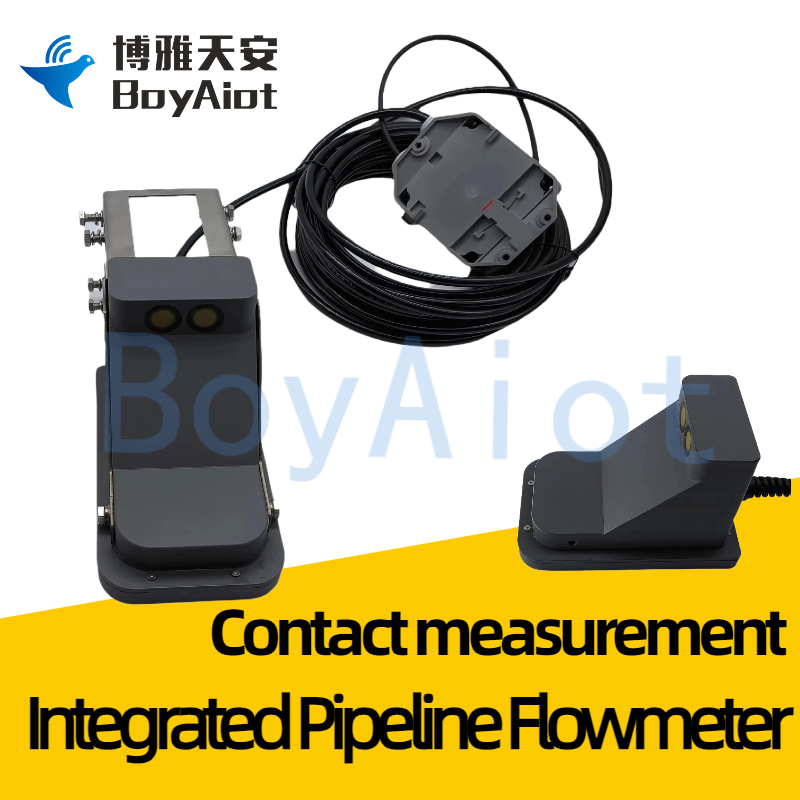

Product features:

1.   Contact measurement, the measurement accuracy is high, can measure the flow rate of various liquids, the accuracy is up to ±1%.

2.   Small size, does not occupy narrow underground space, easy installation, simple maintenance.

3.   Real-time monitoring of flow changes, timely discovery of pipeline blockage, water leakage and other problems, to ensure the normal operation of the drainage network system.

Cellphone(Whatsapp/Wechat):
Mr. Lin: +86 13960777235
 technical consultation

▋ Product Description

        BOY-WF08-P is a new pipe network flow measurement product independently developed by our company. The product integrates the advantages of radar flow measurement and ultrasonic flow measurement to realize the full and non-full pipe flow measurement in the whole scene. The equipment is simple to install and the operation and maintenance is small, which can easily cope with complex and harsh pipe network conditions.




▋ Product Parameter


Parameter
Description
Radar speed range
0.03～20m/s
Radar velocity accuracy
±0.01m/s；±1%FS
Radar velocity frequency
24GHz
Radar velocity beam Angle
24°
Radar range
10m
Radar ranging accuracy
±1mm
Radar ranging frequency
80Ghz
Radar ranging beam Angle
14°
Ultrasonic velocity range
0～6m/s
Ultrasonic velocity accuracy
±0.01m/s；±1%FS
Pressure range
0～10m
Pressure ranging accuracy
±1mm
Ultrasonic beam Angle
5°
Ultrasonic pitch Angle
30~70°
Output
RS485
Power supply voltage 9~15VDC
Protection level
IP68
Power dissipation
Ultrasonic mode ：Average 0.28W
Radar mode: Average 1.56W
Shell material
ABS
Dimension
167x101x112mm

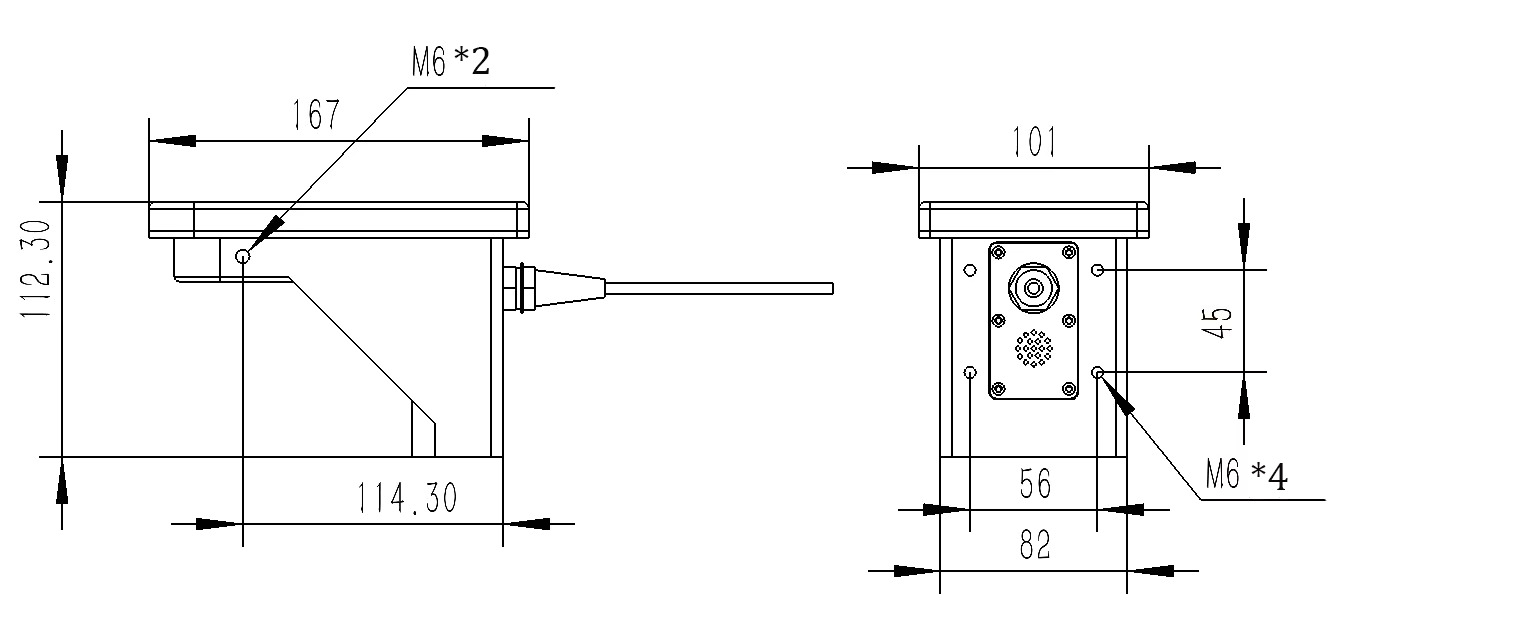

▋ Product Size



▋ Measurement Method

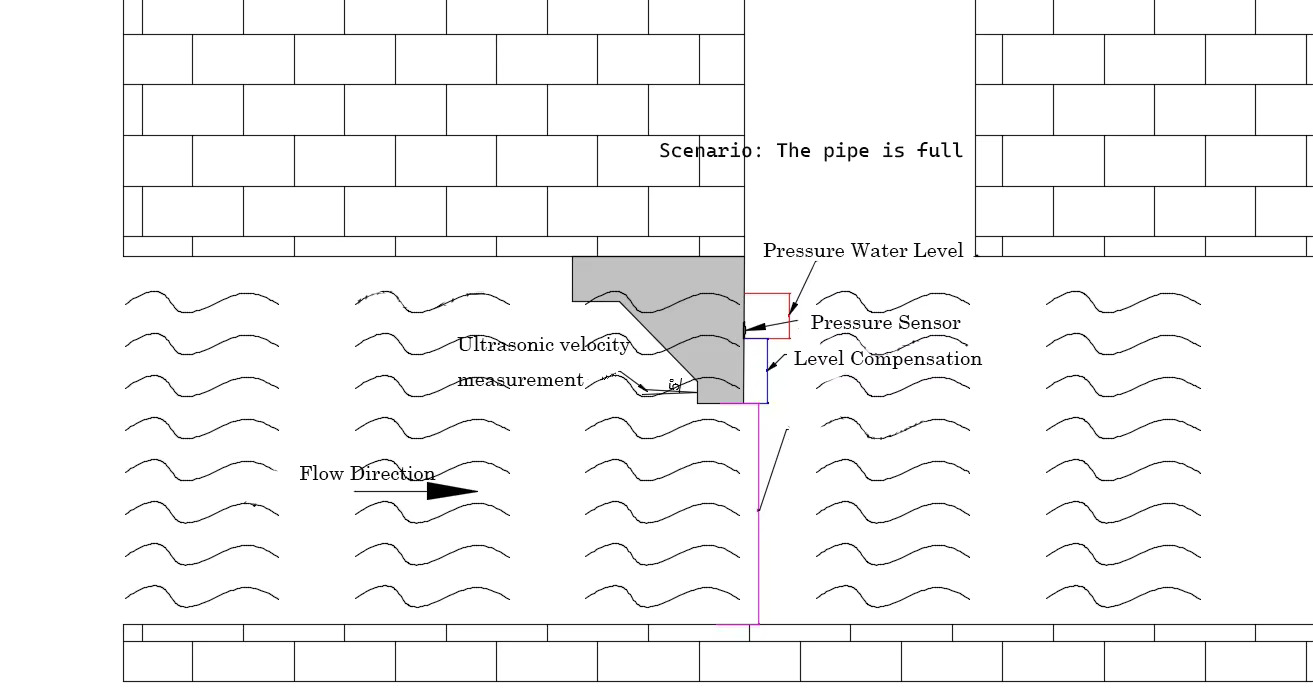

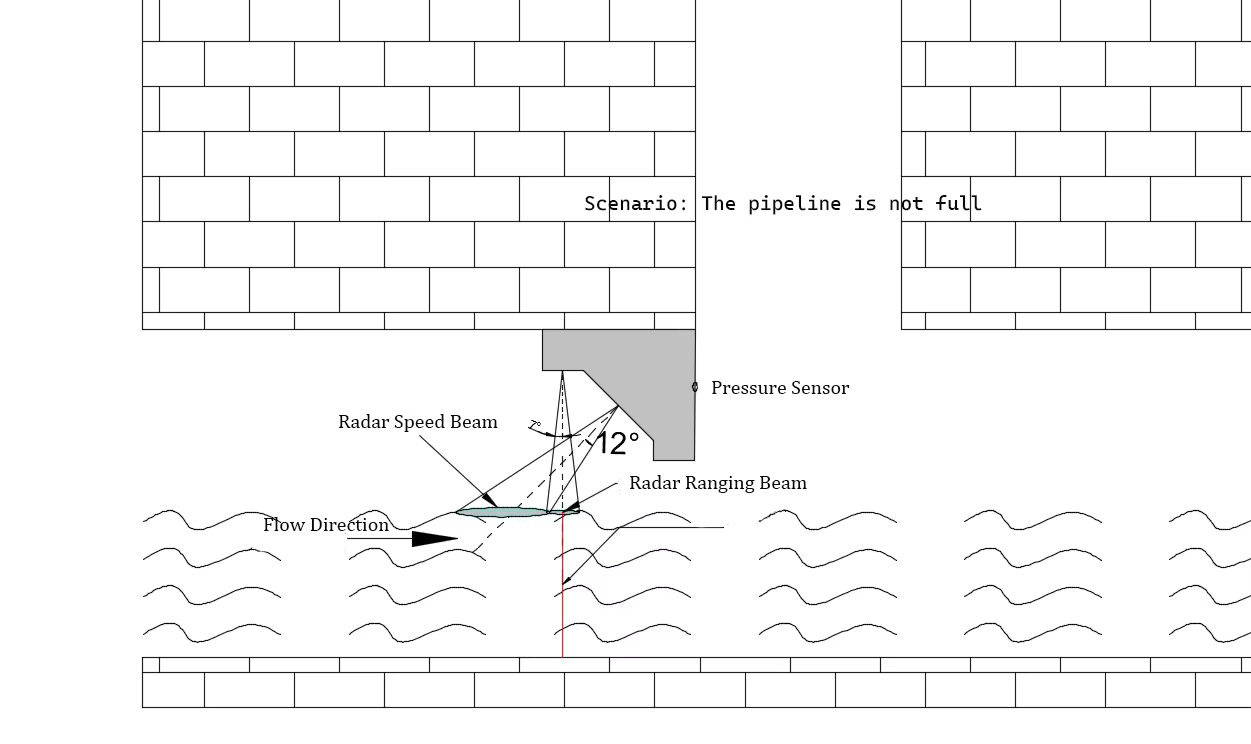

        BOY-WF08-P supports ultrasonic and radar ranging speed measurement. When the tube is not full, the flowmeter automatically switches to the radar operating mode. In the case of full tube, the flow meter automatically switches to ultrasonic mode.

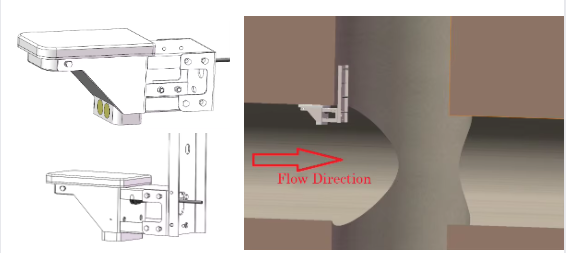

▋ Installation Method


1. Make fixing bolt holes in the well wall. It is best to confirm the holes after the assembled support and equipment are placed on the site and measured to ensure that the equipment is attached to the top of the pipe network wall after installation.

2. Fix the equipment to the well wall through expansion bolts

3. After the equipment is fixed, the cable should be fixed to the well wall through the wire pipe to avoid external leakage of the cable


▋ Application

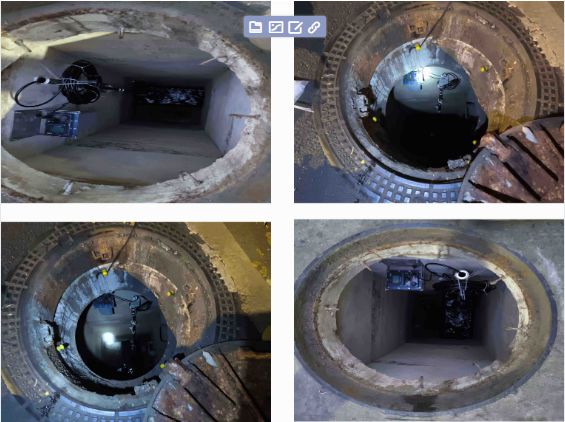

         BOY-WF08-P is a flow online monitoring product developed for urban rainwater and sewage network, river inlet and outlet and other scenarios.


▋ FAQ

1. How to install the equipment?

The bracket is first fixed on the parallel wall by expansion screws and the sensor is fixed on the extension to the castaneyi pipe after the installation. In order to avoid wall interference, the pipe with a diameter of more than 50cm is suitable.

2. Can the equipment be waterproof? Will water flooding damage the equipment?

Can be waterproof, the equipment adopts PC+ABS, IP68 protection level.

3. Does the device support remote communication? How often do you send data?

Support wireless communication, built-in NB-IoT communication module. By default, the device collects data at an interval of 5 minutes and sends a data message to the server at an interval of 15 minutes. You can flexibly set the sending interval as required.

4. How long can the equipment supply power?

Built-in 228Ah disposable battery, can work continuously for more than 2 years under the default rule.
