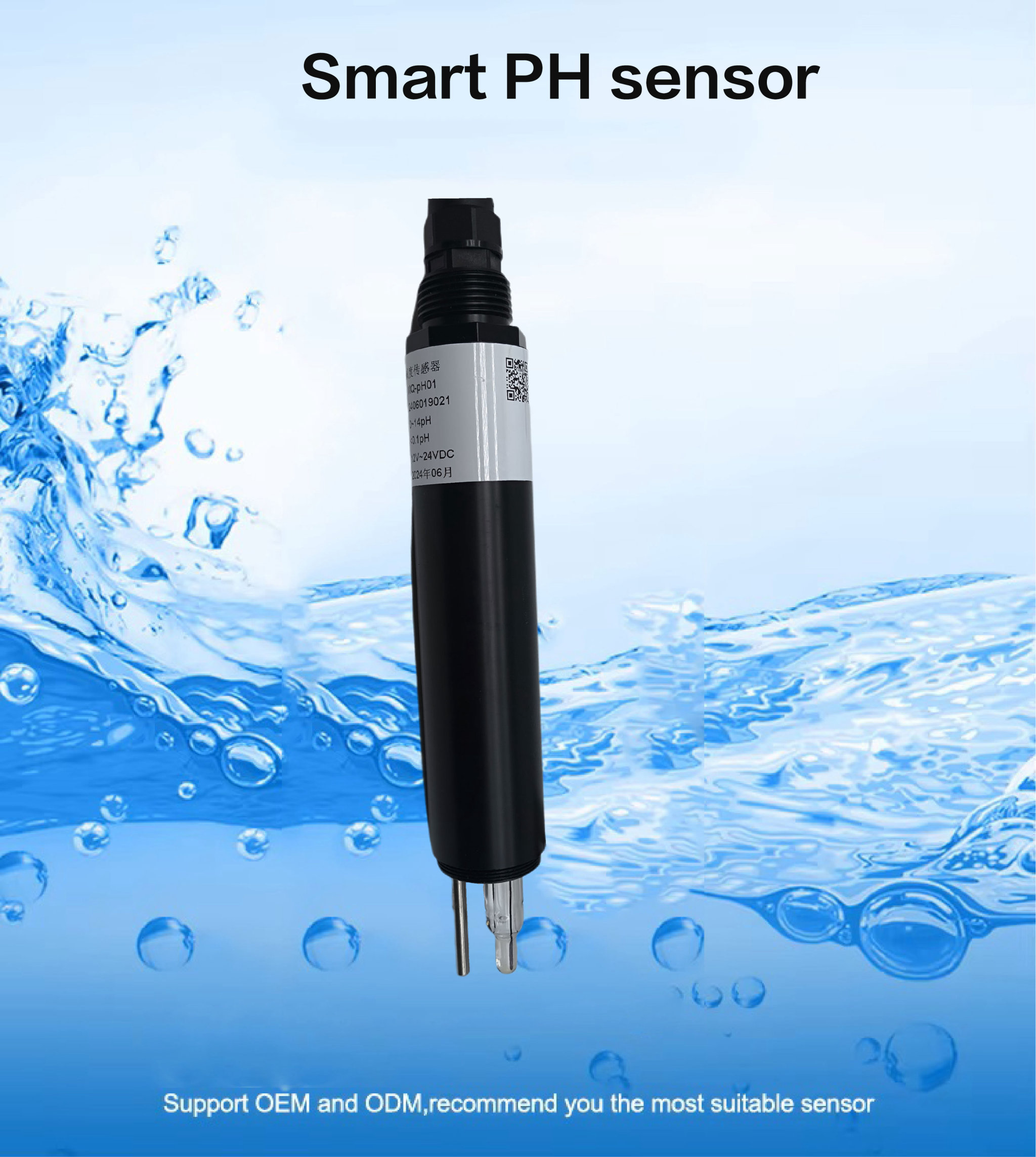

BOY-SZ05-PH Smart pH sensor

BOY-SZ05-PH Smart pH sensor

Product features:

1. Titanium alloy corrosion resistant shell; NPT1/2 upper thread interface, easy to install;

2. Dual beam measurement technology, can simultaneously measure COD, turbidity and other parameters;

3. No chemical reagents, no secondary pollution, fast measurement;

Cellphone(Whatsapp/Wechat):
Mr. Lin: +86 13960777235
 technical consultation

▋ Video Description





▋ Product Description

        The BOY-SZ05-PH is a pH digital sensor. Corrosion resistant shell, IP68 protection grade, suitable for all kinds of harsh working environment; The industrial grade composite electrode is selected, and the double salt bridge design of the electrode is used for long service life. Built-in PT1000 temperature sensor and compensation algorithm, accuracy up to ±0.1℃; RS485 communication interface, standard Modbus protocol, easy to integrate.




▋ Product Parameter


Parameter
Index
Measuring medium
PH sensor
Working principle
Glass electrode method
Measuring range
0~14 pH
Measurement accuracy
< 0.1pH
Resolution
0.01 pH
Response time
< 15s
Communication output
RS485 Modbus RTU
Housing material
POM
Sensitivity
57~59 mV/pH @ 25℃
Temperature compensation
0~50 ℃ （no ice），0~2 bar
Power supply voltage
12~24VDC
Protection level
 IP68
Product size
D34mm, L205mm, cable 3m (customizable)

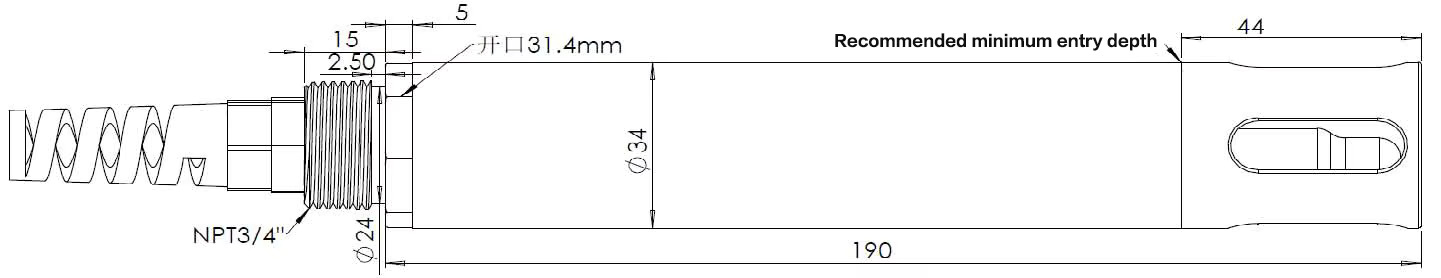

▋ Product Size

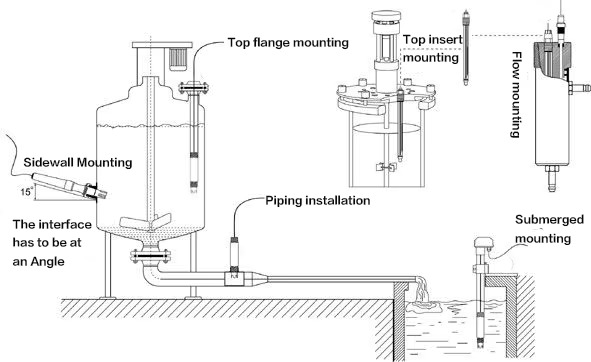

▋ Installation Method


1. Sensor use Sensor measurement needs to have a certain space, the bottom and around the need to retain more than 2cm spacing; It is recommended to install the sensor horizontally or to measure against the quasi-current direction.

2. Sensor cleaning

You can use warm water containing detergent or alcohol to clean the organic component dirt on the electrode; Mechanical cleaning will destroy the matte layer on the electrode surface.

3. Calibration of sensor

In order to ensure the accuracy of conductivity measurement, it is necessary to periodically calibrate the electrode constant using standard liquid.

4. Equipment preservation
Before storage, clean the sensor and leave no residual water. The sensor should be stored in a dry environment.


▋ Application



▋ FAQ

1. Abnormal sensor reading:

It may be caused by sensor damage, sensor contamination and sensor deviation. You need to replace the faulty sensor or clean the debris attached to the sensor, or re-calibrate the sensor or replace the calibration fluid.

2. Communication failure:

Communication failures are mostly caused by data transmission problems when monitoring equipment communicates with host computers or cloud platforms. Generally, you need to check the connection line to check whether the communication interface and communication parameters are correct, and then reset the system.

3. Power supply failure:

Power supply failure refers to the insufficient or unstable power supply of the device, resulting in the normal operation of the device. To ensure the stability of the power supply, add a power filter to check whether the power supply and the circuit are normal.

4. Improper maintenance:

Before using the equipment, it is necessary to carry out daily equipment inspection, timely cleaning of the equipment, replacement of consumables and wearing parts to ensure the normal operation of the equipment. At the same time, regular maintenance of the equipment should be done to maintain the stability of the equipment performance.
