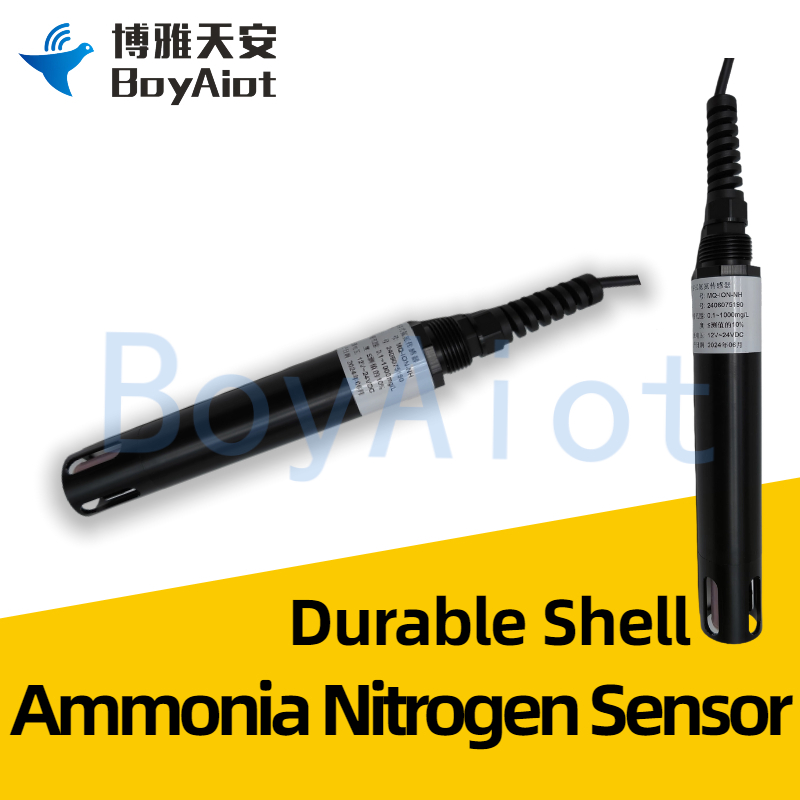

BOY-SZ05-AN Ammonia Nitrogen Sensor

BOY-SZ05-AN Ammonia Nitrogen Sensor

Product features:

1. Titanium alloy corrosion resistant shell; NPT1/2 upper thread interface, easy to install;

2. Dual beam measurement technology, can simultaneously measure COD, turbidity and other parameters;

3. No chemical reagents, no secondary pollution, fast measurement;

Cellphone(Whatsapp/Wechat):
Mr. Lin: +86 13960777235
 technical consultation

▋ Product Description

      The BOY-SZ05-AH is a digital ammonia nitrogen sensor using RS485 communication interface and Modbus RTU standard protocol. Built-in PT1000 temperature sensor and compensation algorithm, IP68 protection grade, corrosion resistant housing, suitable for all kinds of harsh working environment.




▋ Product Details



▋ Product Parameter


Parameter
Index
Type
Ammonia nitrogen Sensor
Measurement principle

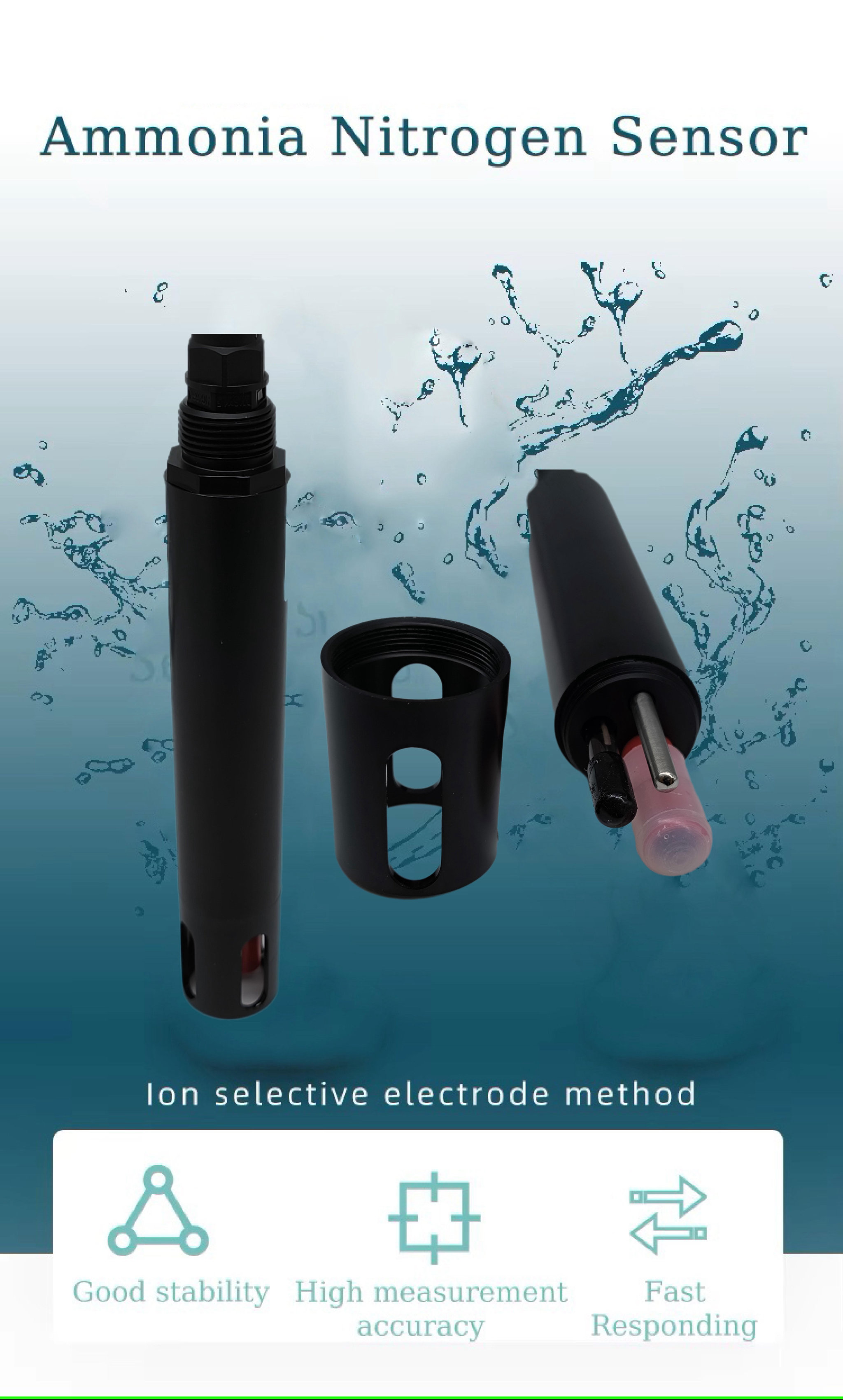

Ion selective electrode method
Measuring range
0.1~1000 mg/L
Accuracy
10%
Resolution
0.01mg/L
Sensitivity
55~58 mV/pNH4 +@ 25℃
Response time
＜30s
Output
RS485 Modbus RTU
IP grade
IP68
Power dissipation
D34*205mm
Electrode size
12~24VDC
Temperature compensation
0~50℃

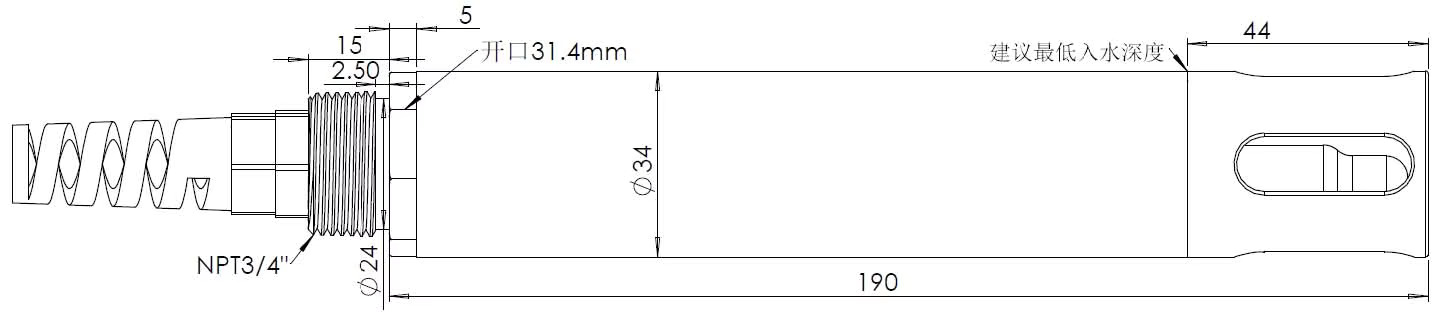

▋ Product Size

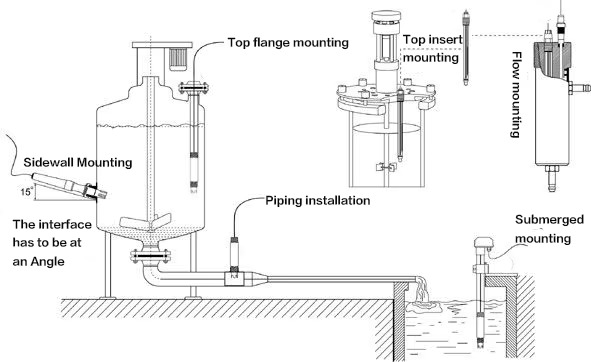

▋ Installation Method

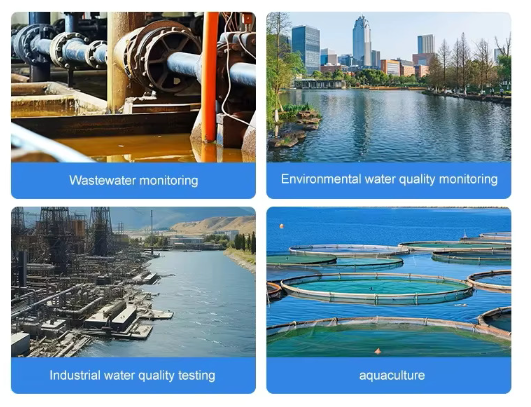

▋ Application



▋ FAQ

1. Abnormal sensor reading:

It may be caused by sensor damage, sensor contamination and sensor deviation. You need to replace the faulty sensor or clean the debris attached to the sensor, or re-calibrate the sensor or replace the calibration fluid.

2. Communication failure:

Communication failures are mostly caused by data transmission problems when monitoring equipment communicates with host computers or cloud platforms. Generally, you need to check the connection line to check whether the communication interface and communication parameters are correct, and then reset the system.

3. Power supply failure:

Power supply failure refers to the insufficient or unstable power supply of the device, resulting in the normal operation of the device. To ensure the stability of the power supply, add a power filter to check whether the power supply and the circuit are normal.

4. Improper maintenance:

Before using the equipment, it is necessary to carry out daily equipment inspection, timely cleaning of the equipment, replacement of consumables and wearing parts to ensure the normal operation of the equipment. At the same time, regular maintenance of the equipment should be done to maintain the stability of the equipment performance.
