BOY-YL05-1-XR Simple tipping bucket rain gauge

The invention relates to a simple mechanical rainfall monitoring equipment

Product features:

1.High reliability, integrated stainless steel molding, corrosion resistance

2.Good stability, skip parts turnover sensitive

3.Original production: with industrial production license, through the Ministry of Water Resources assessment

Next product: BOY-YL05-1 Tipping bucket rain gauge

Cellphone(Whatsapp/Wechat):

Mr. Lin: +86 13960777235

technical consultation

▋ Product Description

BOY-YL05-1-XR simple tipping bucket rain gauge is a primary instrument for precipitation measurement, and its performance is produced in accordance with the national standard GB/ 11832-2002 "Tipping bucket rain gauge" for observing precipitation in nature. It can be widely used in meteorological stations (stations), hydrology, and relevant departments to continuously measure rainfall, rainfall duration and rainfall intensity.

▋ Main Function

By observing rainfall changes in rural areas, providing timely rainfall data for management departments and providing convenient early warning systems for rural areas have become the key issues for decision makers to consider in disaster prevention and reduction projects.

Function	Description
Rainfall collection	Third party detection
Output mode	Reed tube on/off signal output
Third party detection	Selected into the "National Water Conservancy System Excellent Product bidding Key Recommended Catalogue" Inspection of quality supervision, inspection and Test Center of Hydrology instrument and geotechnical engineering instrument of Ministry of Water Resources National industrial product production license

▋ Product Characteristics

BOY-YL05-1-XR simple tipping bucket rain gauge is developed according to the characteristics of grassroots rainfall observation and combined with many years of hydrological monitoring experience. It has the characteristics of high reliability, wide applicability and in line with national standards.


Easy to install	High reliability	Wide applicability
Portable integrated structure design, beautiful appearance, easy installation	Integrated stainless steel molding high finish, corrosion resistance, strong and durable	Data communication via 4G/NB-LOT/LoRa is supported

Meet national standards	Good stability	Strong anti-interference
The equipment conforms to GB 11832-2002 "tipping bucket rain gauge" national standard	Mechanical structure, small friction moment, sensitive and stable component turnover	Rugged, no moving parts, no need for field calibration

▋ Product Parameter

Rainfall parameter
Caliber of rain catcher	Diameter 200 + 0.60mm
Cutting edge Angle	44°
Resolution	0.5mm
Accuracy	≤±4%
Rain intensity range	0.01 ~ 4mm/min(allow through the maximum heavy rain intensity of 8mm/min)
Interface type
Pulse output	Reed tube on/off signal output
Physical characteristics
Shell	Protection level IP65, secure isolation of enclosure and system
Overall dimension	Diameter 216mm × 358mm(excluding mounting parts)
Main engine weight	Approx. 2.5kg(excluding mounting parts and packaging)
Environmental parameter
Operating temperature	0℃ to +55℃
Storage temperature	-35℃ to +70℃
Relative humidity	95%RH(no condensation cream)

▋ Measurement Method

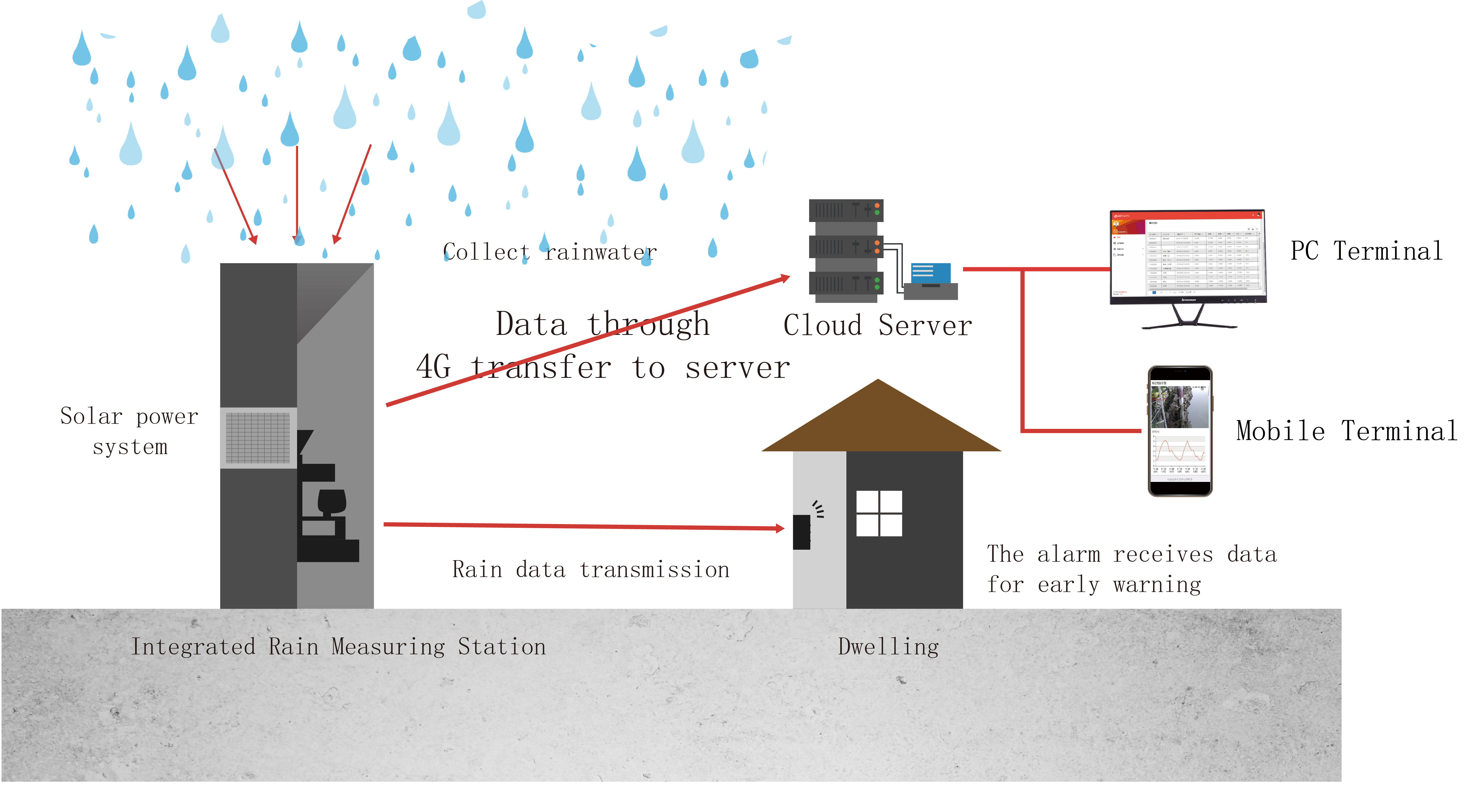

BOY-YL05-1-XR simple tip-bucket rain gauge observes the precipitation of nature in real time through the tip-bucket principle, sends the rainfall data to the nearby rainfall alarm display and sound and light alarm through the wire, provides data support for the basic users of flash flood warning, and improves the hydrological monitoring ability.

▋ Installation Method

▋ Application

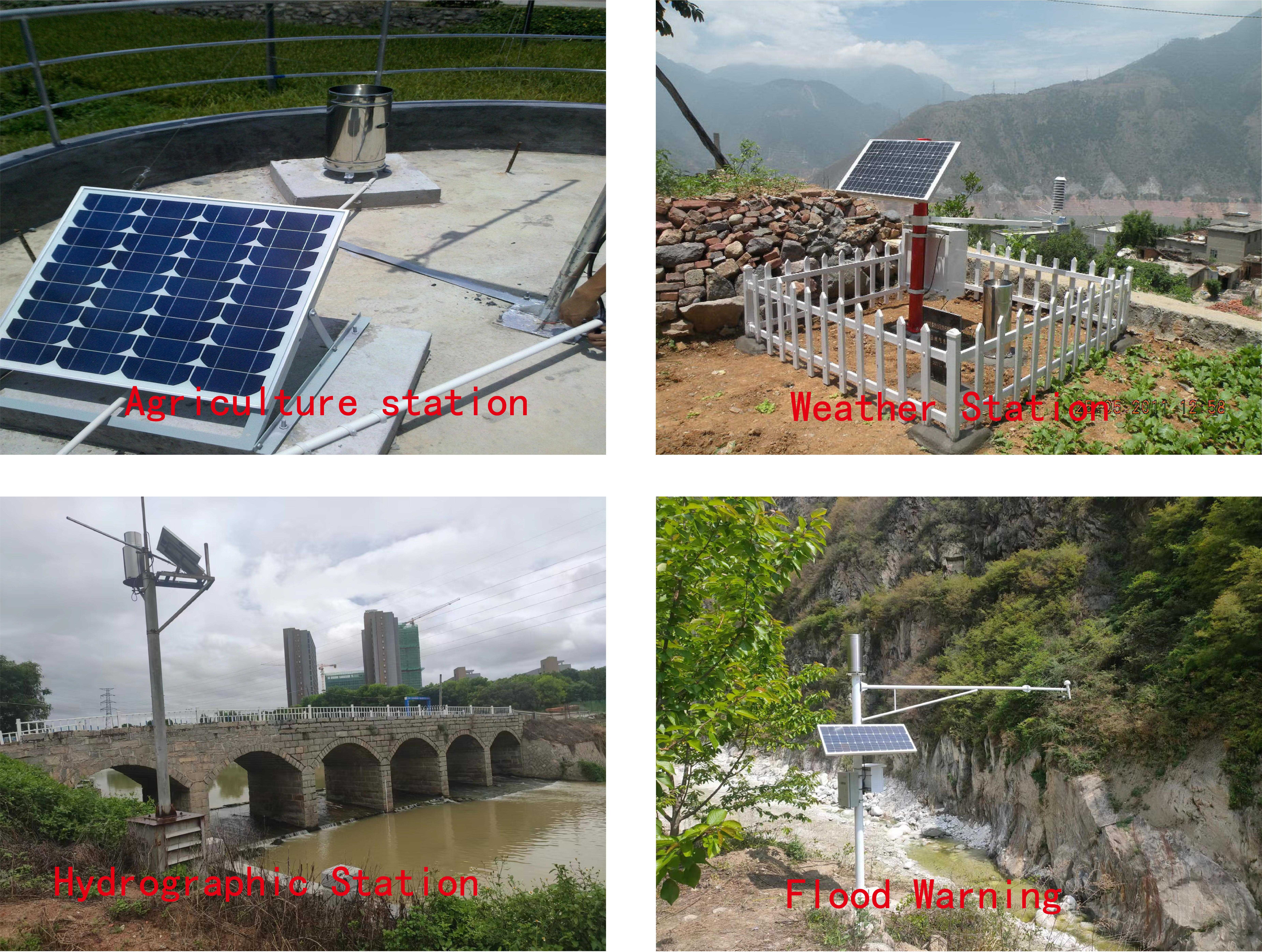

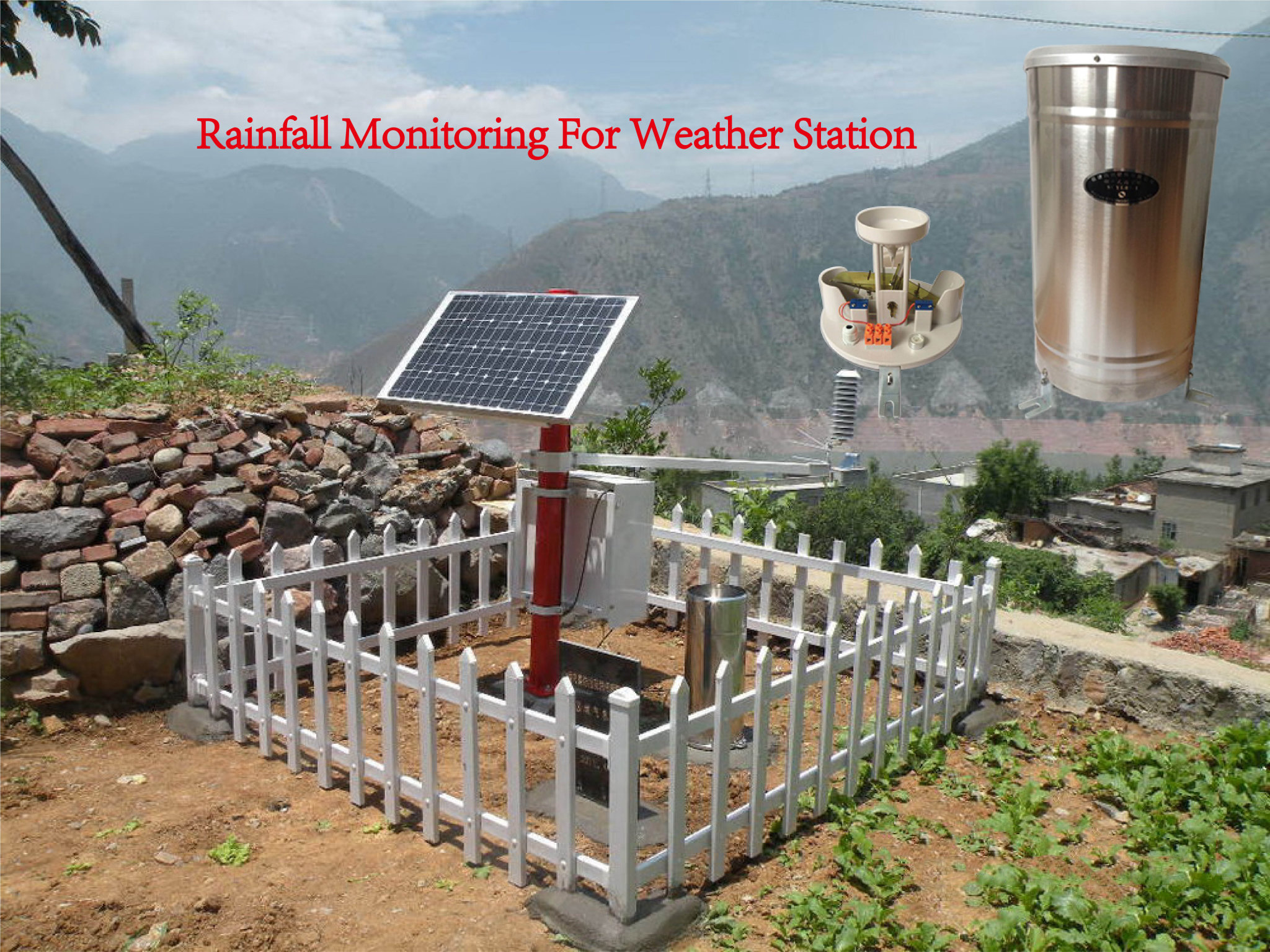

BOY-YL05-1-XR simple tipping bucket rain gauge can realize rainfall monitoring by installing poles or mounds, and report to cloud server through external telemetry terminal, which solves the problem of automatic early warning of hydrological rainfall monitoring. It is suitable for weather station, hydrographic station, mountain flood warning, geological monitoring and other real-time rainfall monitoring scenarios.

▋ FAQ

1. What material is the rain gauge made of?

A: The outer cylinder and chassis of the rain gauge are made of high-quality stainless steel, and the parts such as the rain receiver and tipping bucket are made of PVC material.

2. What is the principle of tipping bucket rain gauge?

A: Through the rain tipping bucket measurement, a tipping bucket represents 0.5mm rainfall, reed tube on and off signal output.

3. How to install the rain gauge?

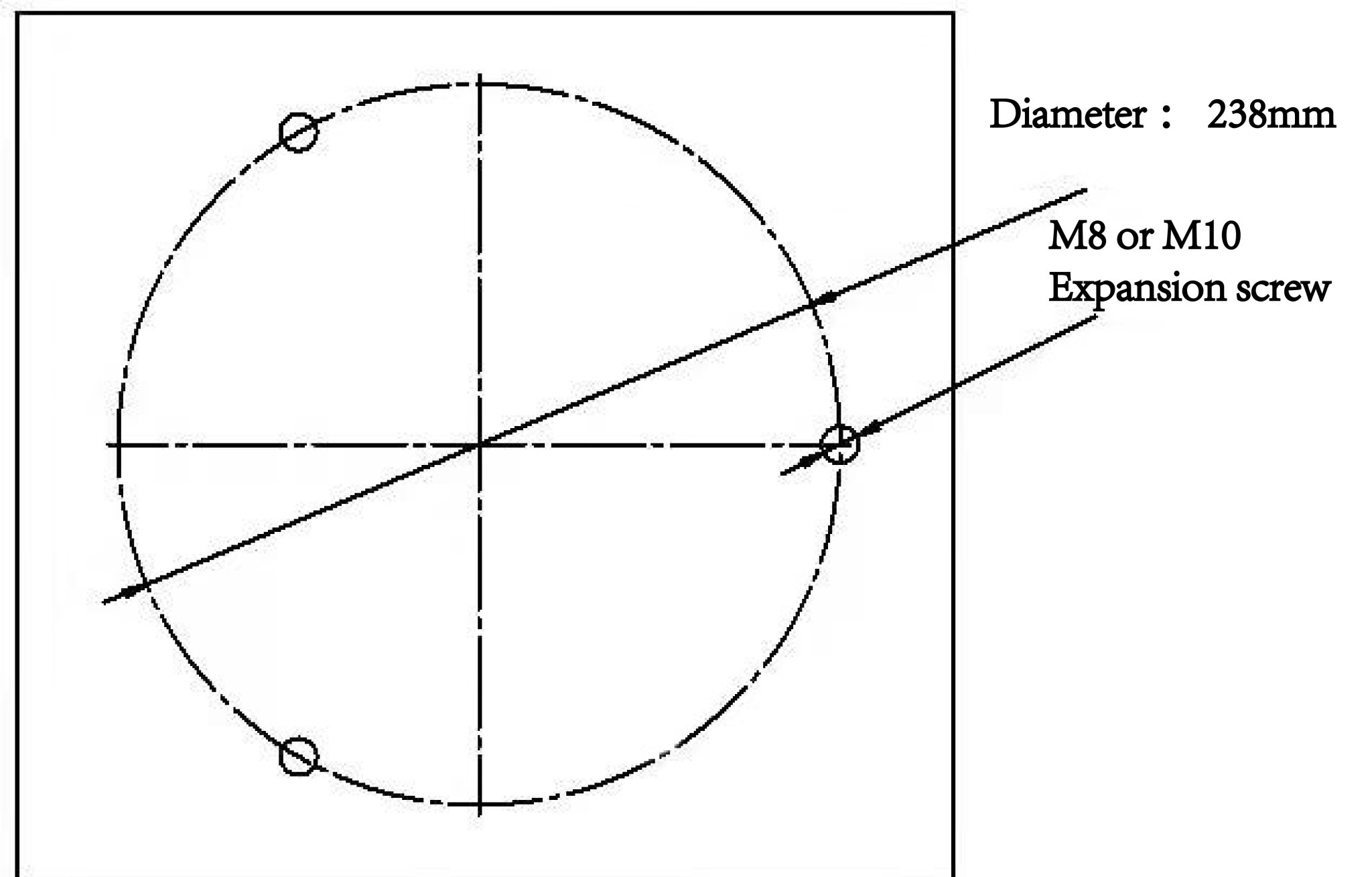

A: Can be installed in the field or the roof, find a cement plane through the expansion screw fixed, if there is no plane can be erected.

4. Can the rain gauge be reported remotely?

A: No, the rain gauge is just a sensor, if you need to remotely report, you need to set up a telemetry terminal on site, connect the reed tube through the cable to the break signal, and then report to the server through 4G or NB.

5. Does the rain gauge need electricity? Do you need an external power supply?

A: No, the rain gauge uses a mechanical structure and does not need power supply. If the telemetry terminal is used to report data, additional power supply is required.

6. Can the rain gauge meet the national standard?

A: The equipment conforms to the national standard of "tipping bucket rain gauge" GB/T11832-2002, and has the test report of the relevant testing institutions of the Ministry of Water Resources.
