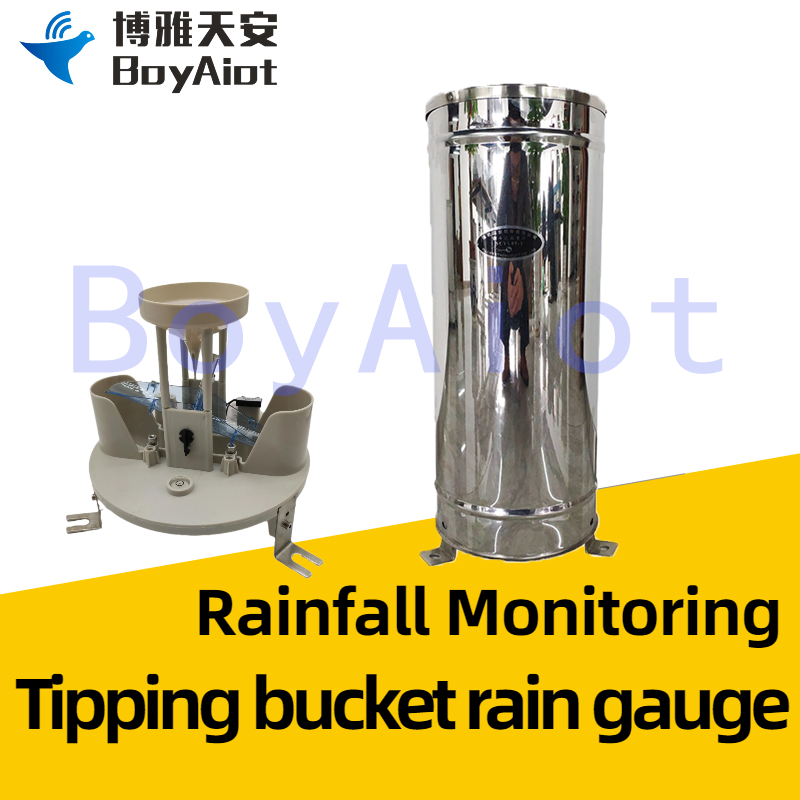

BOY-YL05-1 Tipping bucket rain gauge

BOY-YL05-1 Tipping bucket rain gauge

The invention relates to a mechanical real-time rainfall monitoring and a rainfall sensor
Product features:

1.High reliability, integrated stainless steel molding, corrosion resistance

2.Good stability, skip parts turnover sensitive

3.Original production: with industrial production license, through the Ministry of Water Resources assessment

Cellphone(Whatsapp/Wechat):
Mr. Lin: +86 13960777235
 technical consultation

▋ Product Description

    BOY-YL05-1 The tipping bucket rain gauge is a primary instrument for precipitation measurement, which is used to observe precipitation in nature. It can be widely used in meteorological stations, hydrology stations, and relevant departments to continuously measure rainfall, rainfall duration and rainfall intensity.



▋ Main Function

    Rural areas in forests and mountains are prone to flash floods. By observing rainfall changes in rural areas, providing timely rainfall data for management departments and providing convenient early warning systems for rural areas have become the key issues for decision makers to consider in disaster prevention and reduction projects.


Function

Description

Rainfall collection

Collect rainfall according to the rain trap and skip

Output mode

Reed tube on/off signal output

Third party detection

Selected into the "National Water Conservancy System Excellent Product bidding Key Recommended Catalogue"

Inspection of quality supervision, inspection and Test Center of Hydrology instrument and geotechnical engineering instrument of Ministry of Water Resources

National industrial product production license


▋ Product Characteristics

       BOY-YL05-1 tip-bucket rain gauge is developed according to the characteristics of grassroots rainfall observation and combined with many years of hydrological monitoring experience. It has the characteristics of high reliability, wide applicability and in line with national standards.


azfb

kkx

syxg

Easy to install

High reliability

Wide applicability

Portable integrated structure design, beautiful appearance, easy installation

Integrated stainless steel molding high finish, corrosion resistance, strong and durable

Data communication via 4G/NB-LOT/LoRa is supported

fhgjbz

gwdx

kglxq

Meet national standards

Good stability

Strong anti-interference

The equipment conforms to GB 11832-2002 "tipping bucket rain gauge" national standard

Mechanical structure, small friction moment, sensitive and stable component turnover

Rugged, no moving parts, no need for field calibration


▋ Product Parameter


Rainfall parameter

Caliber of rain catcher

Ф 200 + 0.60mm

Cutting edge Angle

44°

Resolution

0.5mm

Accuracy

≤±4%

Rain intensity range

0.01 ~ 4mm/min(allow through the maximum heavy rain intensity of 8mm/min)

Interface type

Pulse output

Reed tube on/off signal output

Physical characteristics

Shell

Protection level IP65, secure isolation of enclosure and system

Overall dimension

Diameter 216mm × 358mm(excluding mounting parts)

Main engine weight

Approx. 2.5kg(excluding mounting parts and packaging)

Physical characteristics

Main engine weight

0℃ to +55℃

Storage temperature

-35℃ to +70℃

Relative humidity

95%RH(no condensation cream)


▋ Measurement Method

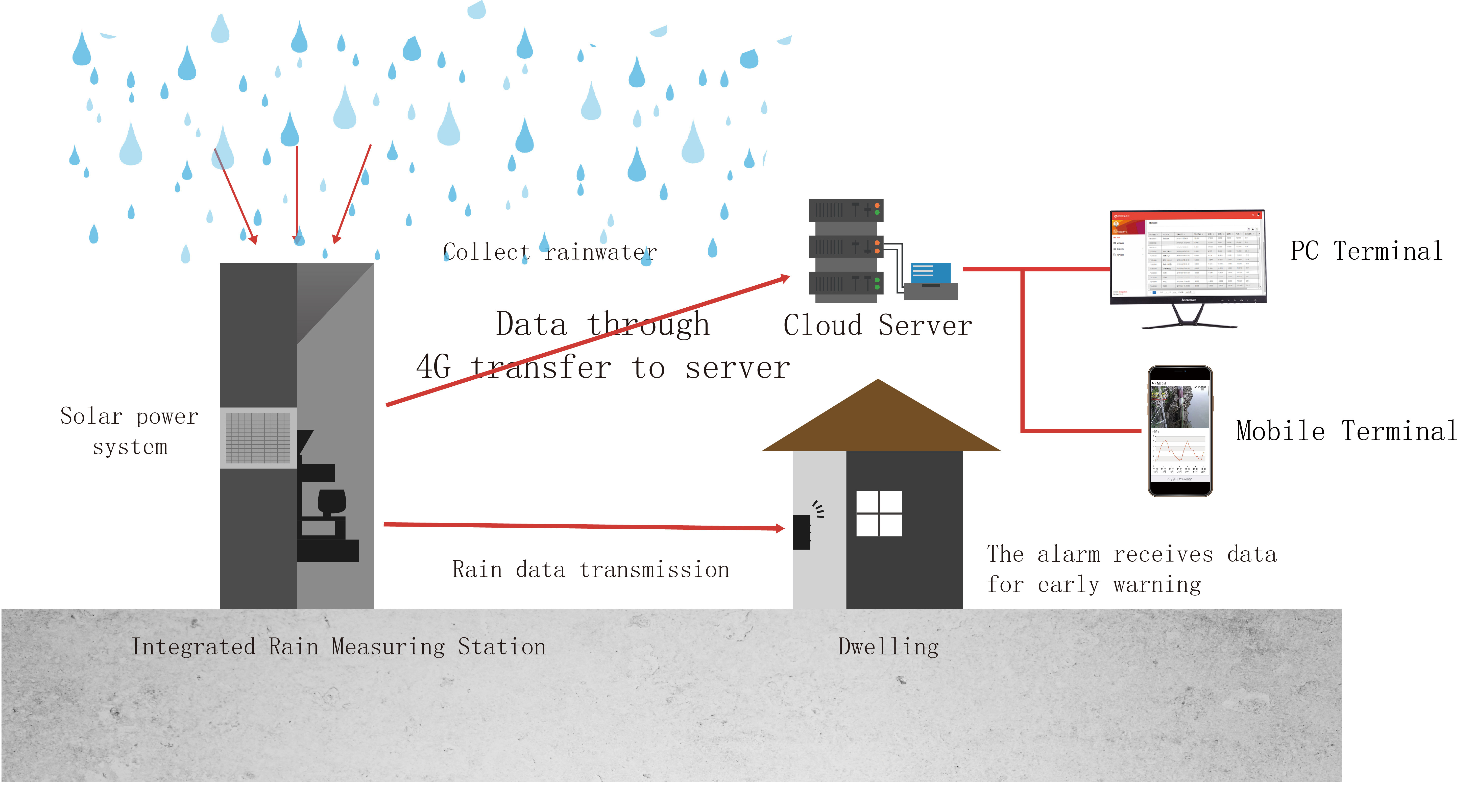

        BOY-YL05-1 tip-bucket rain gauge monitors the rainfall change in real time through the tip-bucket principle, sends the rainfall data to the nearby rainfall alarm through wired/ultra-short wave, and reports it to the cloud server through 4G/NB-IoT and other communication methods, providing data support for the command and decision of industry users, and improves the hydrological monitoring capability.

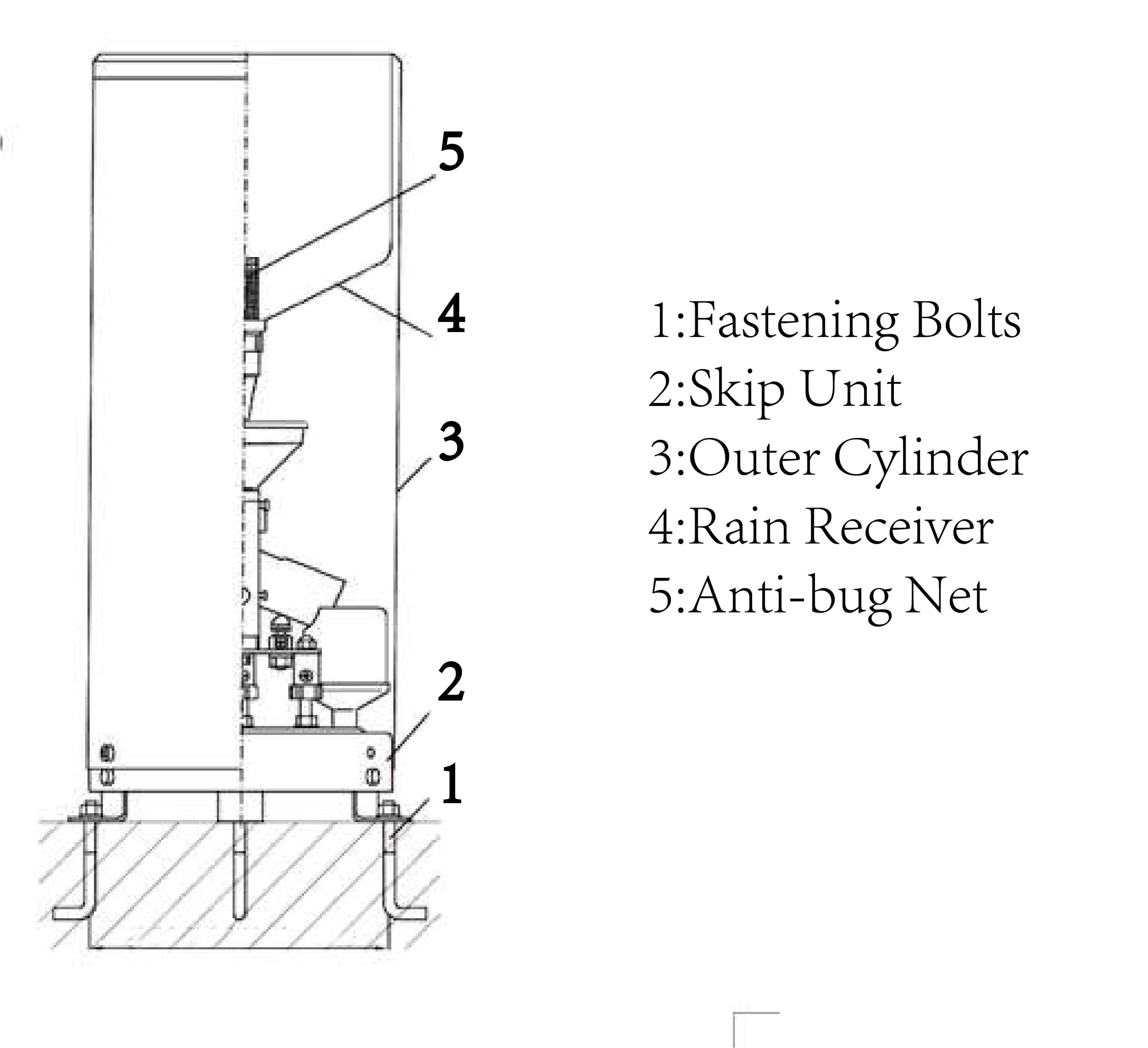

▋ Product Size



▋ Application

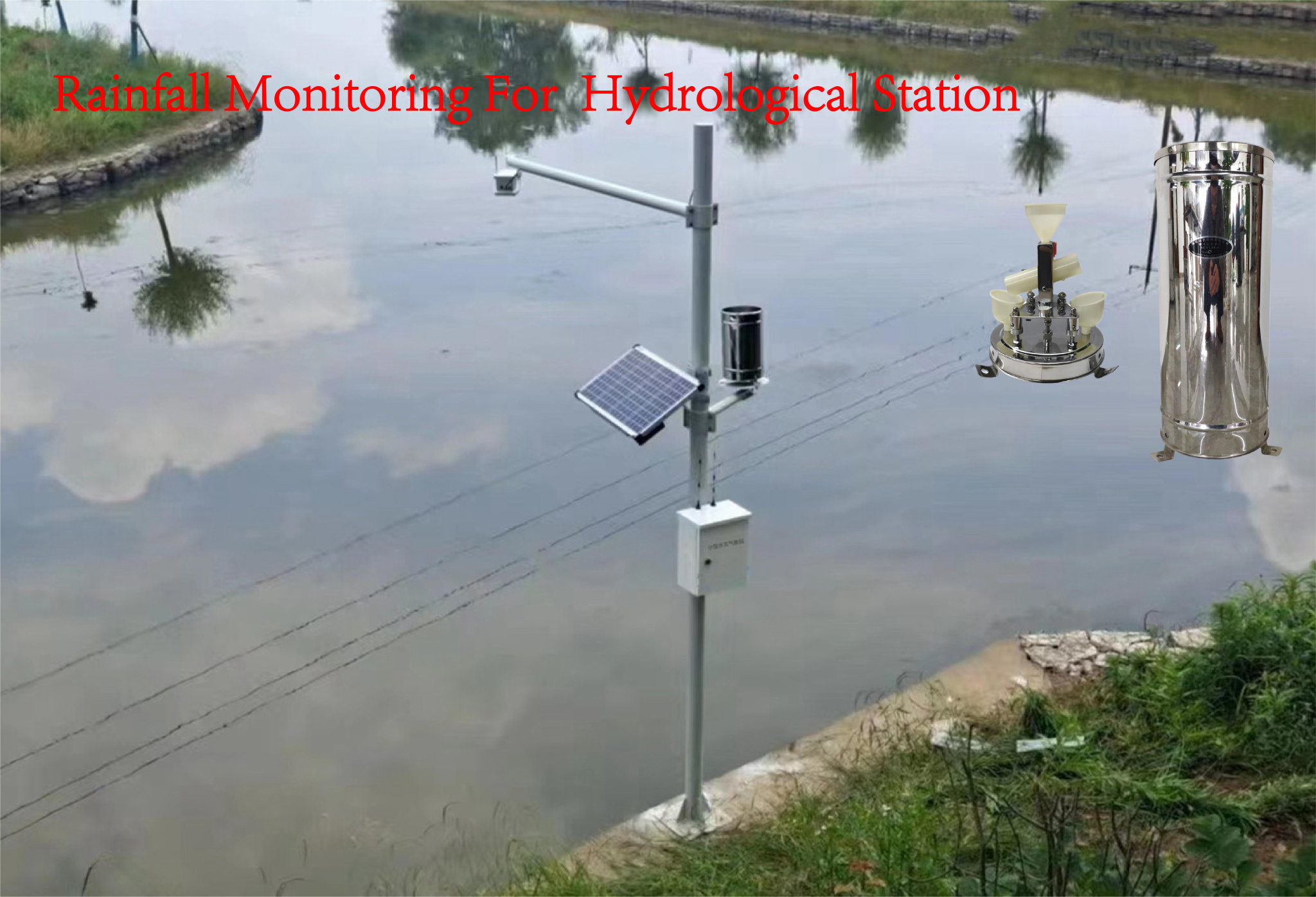

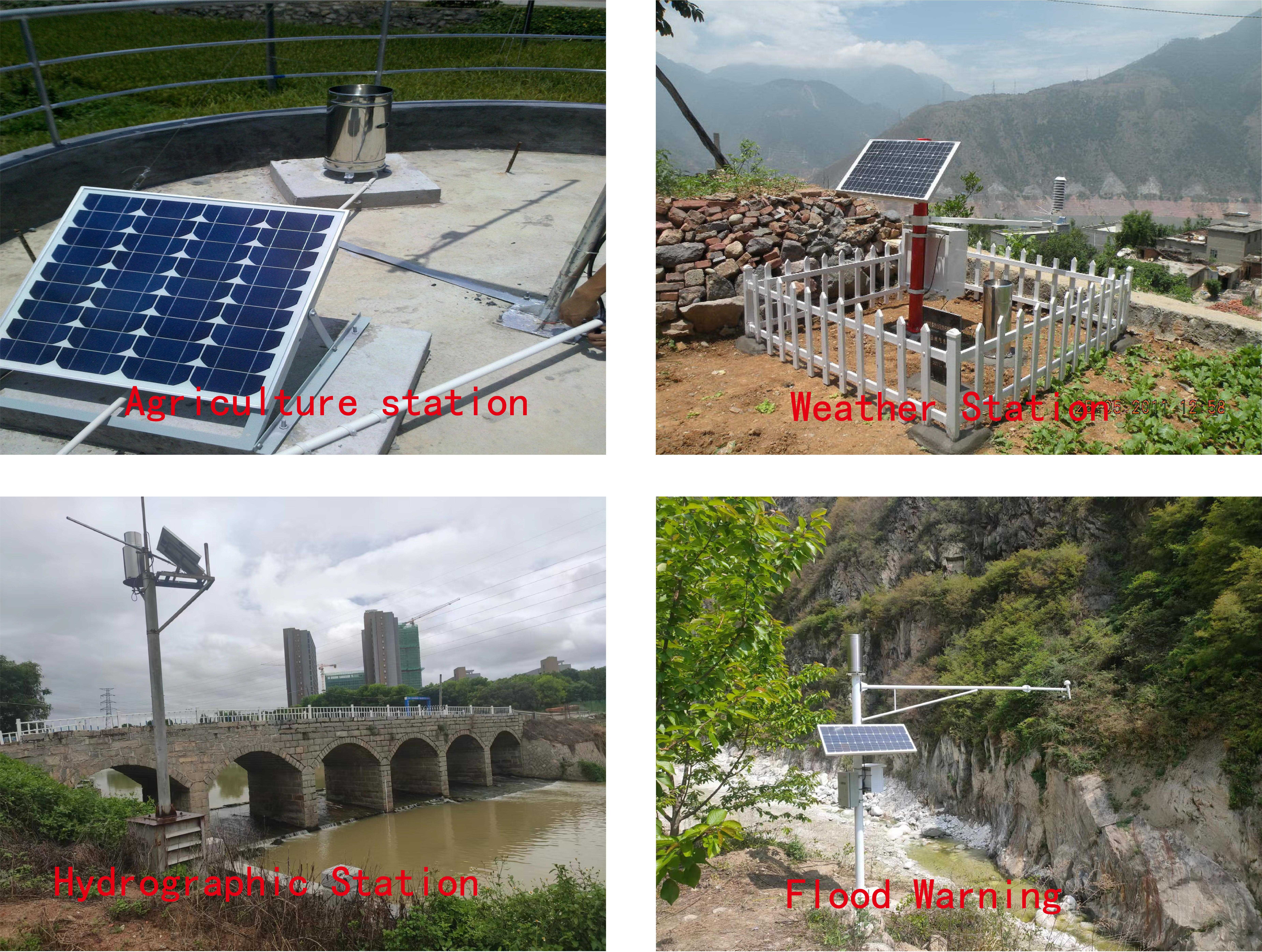

       BOY-YL05-1 tipping bucket rain gauge can realize rainfall monitoring by installing poles or mounds, and report to cloud server through external telemetry terminal, which solves the problem of automatic early warning of hydrological rainfall monitoring. It is suitable for weather station, hydrology station, mountain flood warning, geological monitoring and other real-time rainfall monitoring scenarios.



▋ FAQ

1. What material is the rain gauge made of?

The rain gauge outer barrel, rain receiver, chassis and other components are made of high-quality stainless steel, and the tipping bucket is made of PVC material.

2. What is the principle of tipping bucket rain gauge?

Through the rain tipping bucket measurement, a tipping bucket represents 0.5mm rainfall, reed tube on and off signal output.

3. Can the device report data remotely?

No, the rain gauge is just a sensor, if you need to remotely report, you need to set up a telemetry terminal on site, the terminal is connected to the reed tube through the cable to break the signal, and then report to the server through 4G.

4. Does the rain gauge need electricity? Do you need an external power supply?

No, the rain gauge uses a mechanical structure and does not need power supply. If the telemetry terminal is used to report data, additional power supply is required.
