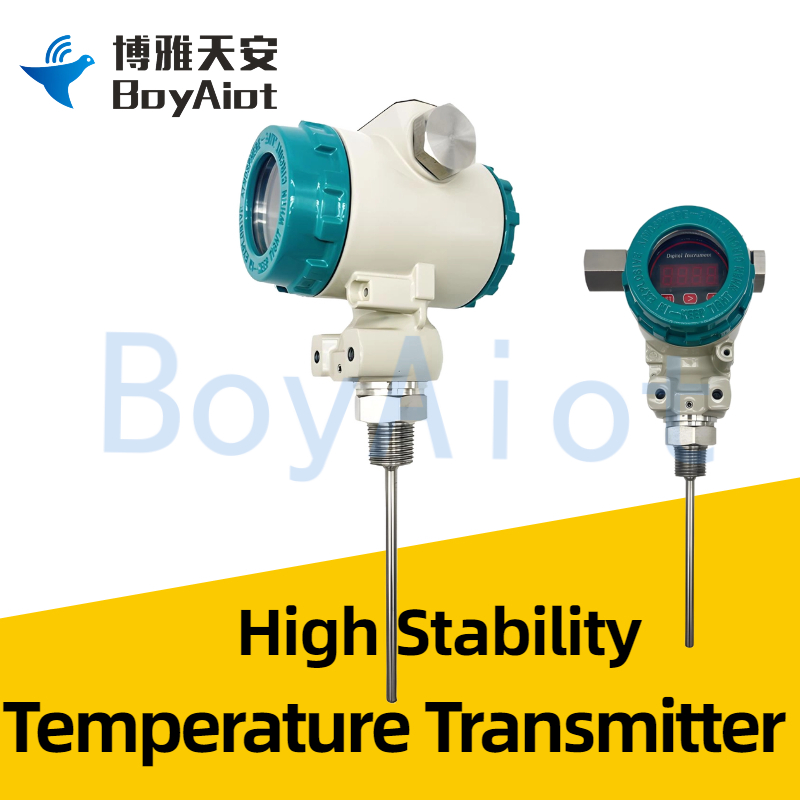

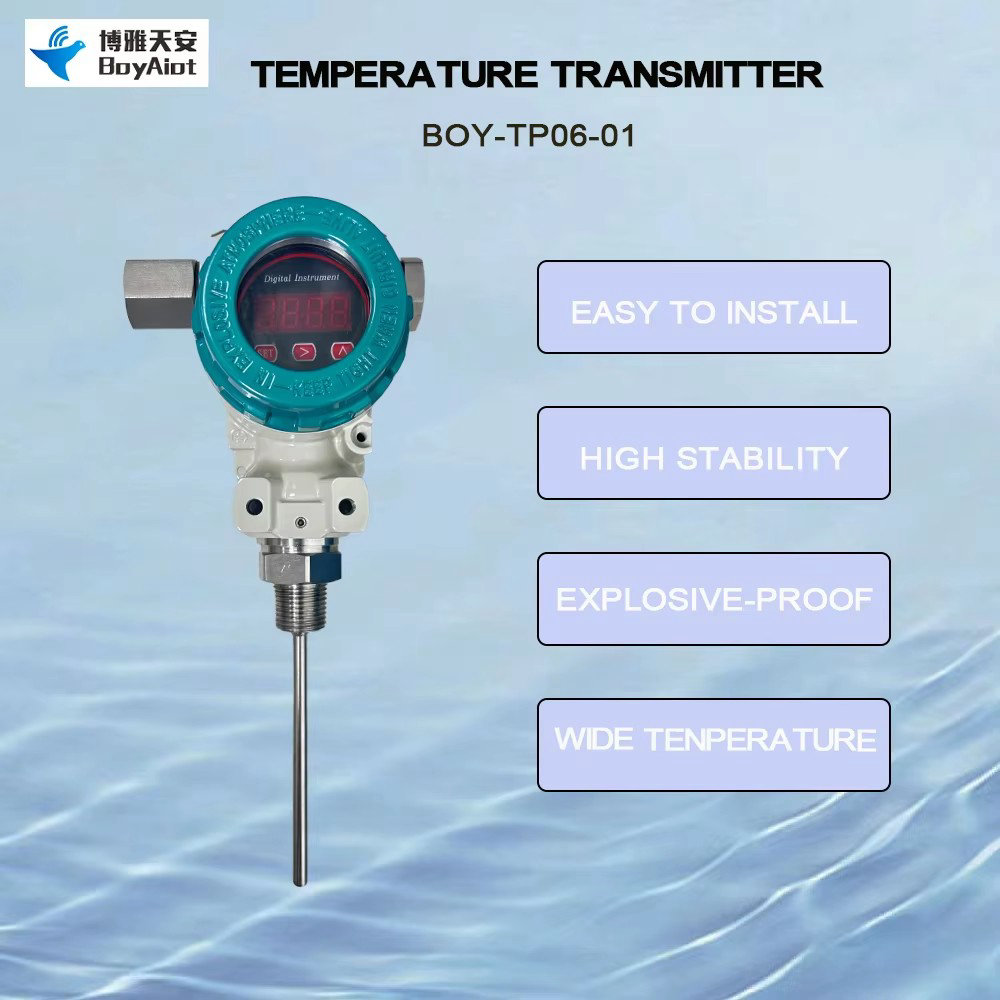

BOY-TP06-01 Temperature transmitter

BOY-TP06-01 Temperature transmitter

An instrument for the measurement of fluid temperature
Product features:

1.  Wide range, range optional, with liquid crystal display.

2.  High stability, lightning proof, shock proof, explosion proof.

3.  High cost performance, small size, beautiful appearance.

Cellphone(Whatsapp/Wechat):
Mr. Lin+86 13960777235
 technical consultation

▋ Product Description

       BOY-TP06-01 temperature transmitter adopts imported sensor temperature sensitive element, temperature compensation by computer laser resistance adjustment, and integrated junction box design. With special terminal and digital display, easy installation, calibration and maintenance. This series of products is suitable for petroleum, water conservancy, chemical industry, metallurgy, electric power, light industry, scientific research, environmental protection and other enterprises and institutions, to achieve the measurement of fluid temperature and suitable for all kinds of occasions all-weather environment and a variety of corrosive fluids.




▋ Product Characteristics

  • Multiple range options
  • Digital, liquid crystal temperature display
  • Easy range debugging
  • Reverse polarity protection and current limiting protection
  • Lightning and shock resistant
  • Intrinsically safe and explosion proof
  • Small size, beautiful appearance, high cost performance
  • High precision, high stability and high reliability


▋ Product Parameter


Parameter
Index
Measuring range
-50~400℃
Output signal
4~20mA/RS485
Long-term stability
≤0.1% /year
Overload capacity
150%
Accuracy leve
0.5%F.S
Supply voltage
18~36VDC
Relative humidity
≤80%
Display mode
5-bit LCD
Display range
-19999~99999
Mounting thread
M27*2 (optional)
Interface material
SS304/316

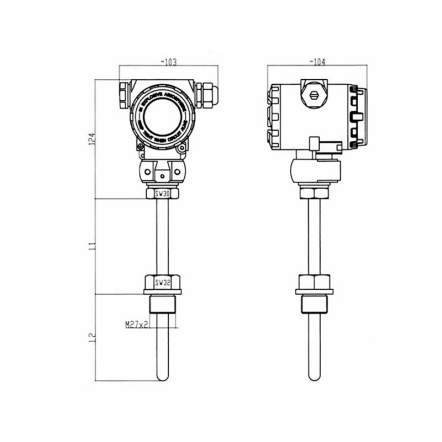

▋ Product Size

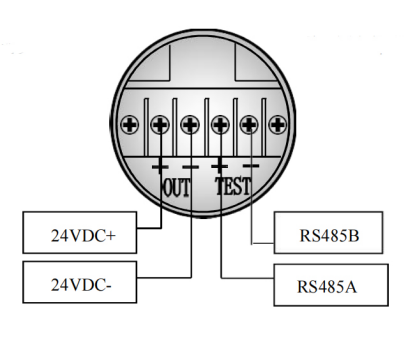

▋ Installation Method

      Shielded twisted-pair signal cables are recommended. To avoid grounding loops, the shield is single-ended grounded, insulated at the pressure transmitter end and grounded at the control cabinet end.

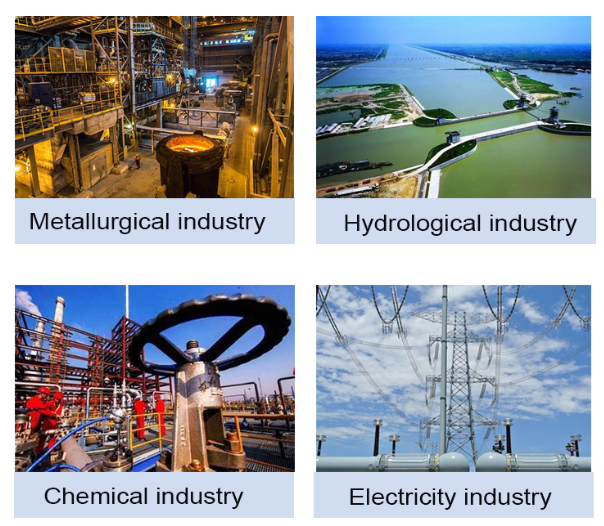

▋ Application


▋ FAQ

  • Connect cables correctly according to the figure. If the connection is reversed, there will be no signal output due to the protection measures adopted inside the transmitter. The transmitter can work with the power supply, but the output signal after 30 minutes of preheating is stable and reliable.
  • The maximum temperature that can occur in the measured system shall not exceed the rated overload value.
  • This product is a precision measuring instrument, it is strictly prohibited to beat, strong clamping, disassembly.
  • Install the instrument in a ventilated, dry, non-corrosive, shady place as far as possible. If the site environment is harsh, take proper measures to protect the instrument.
  • Install the instrument in a ventilated, dry, non-corrosive, shady place as far as possible. If the site environment is harsh, take proper measures to protect the instrument.
  • Non-professional personnel should not disassemble the instrument circuit board or change other devices.
