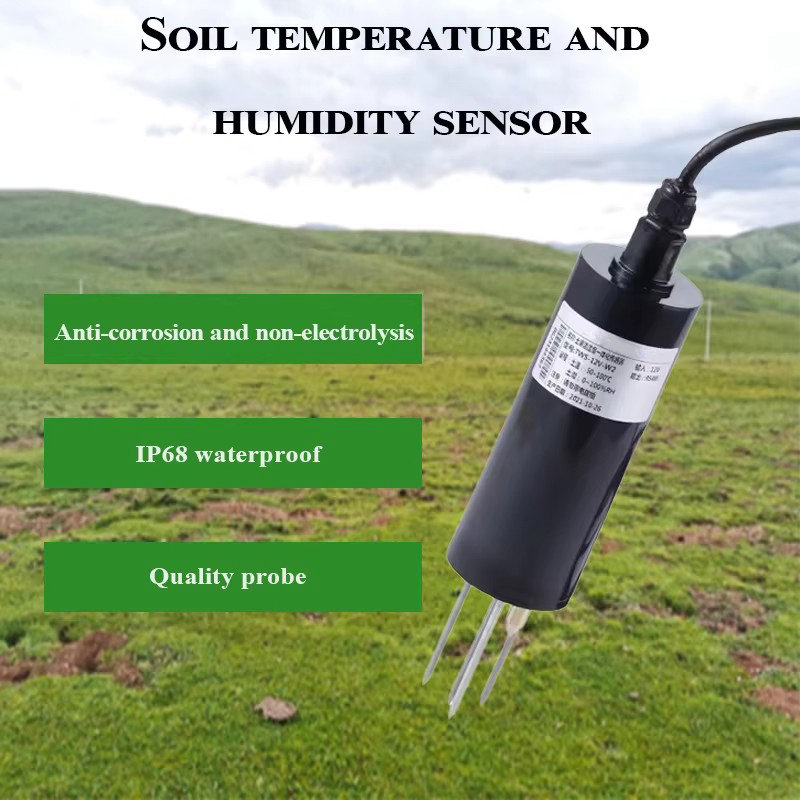

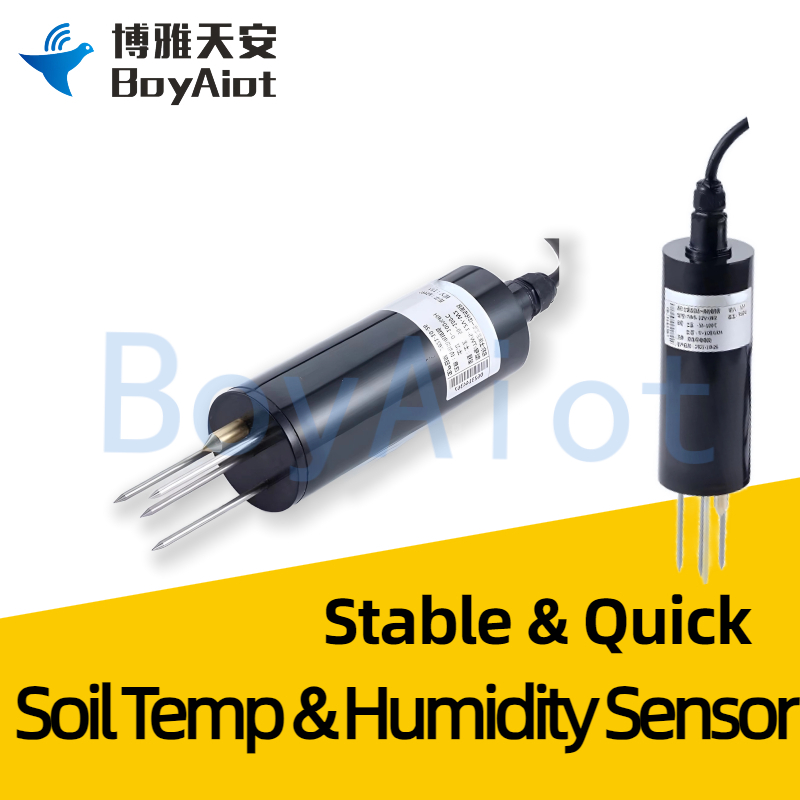

BOY-SO07 Soil Temperature and humidity sensor

BOY-SO07 Soil Temperature and humidity sensor

Product features:

1. High accuracy and sensitivity: The BOY-SO07 sensor measures accurately and sensitively.

2. Stable and fast: stable performance, rapid measurement.

3. Resistance to soil disturbance: not affected by chemical fertilizers and metal ions.

Cellphone(Whatsapp/Wechat):
Mr. Lin: +86 13960777235
 technical consultation

▋ Product Description

        BOY-SO07 Soil Temperature and humidity sensor is a high precision, high sensitivity soil moisture measurement instrument. The electromagnetic wave pulse emitted by the sensor is transmitted to the probe through the coaxial cable, and then enters the soil medium to measure the apparent dielectric constant of the soil, so as to obtain the true moisture content of the soil. It has the characteristics of fast and accurate, stable and reliable, and is not affected by chemical fertilizers and metal ions in the soil. The instrument can be widely used in soil moisture monitoring, water-saving irrigation, greenhouse, grassland pasture, soil rapid measurement and other fields.




▋ Product Characteristics

▋ Product Parameter


Parameter
Description
Temperature measurement range
-50~100℃
Humidity measurement range
0-100%RH
Accuracy
±3%
Power supply
DC5~24V
IP level
IP level
Response time
＜1s
Measurement stability time
Measurement stability time
Measurement principle Frequency domain reflection principle (FDR principle)
Working environment
Temperature :-50°C~80°C Relative humidity :0~100%
Working environment
Working environment
Wiring mode
Voltage type :3 wire, current type :3 wire, RS-485 signal :4 wire
Signal output
Voltage :0~2.5VDC, 0~5VDC, current :4~20mA

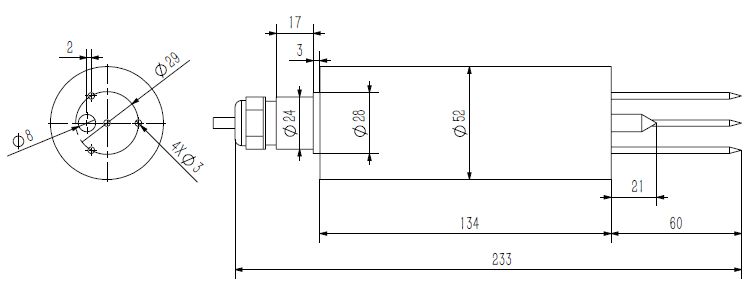

▋ Product Size



▋ Application
