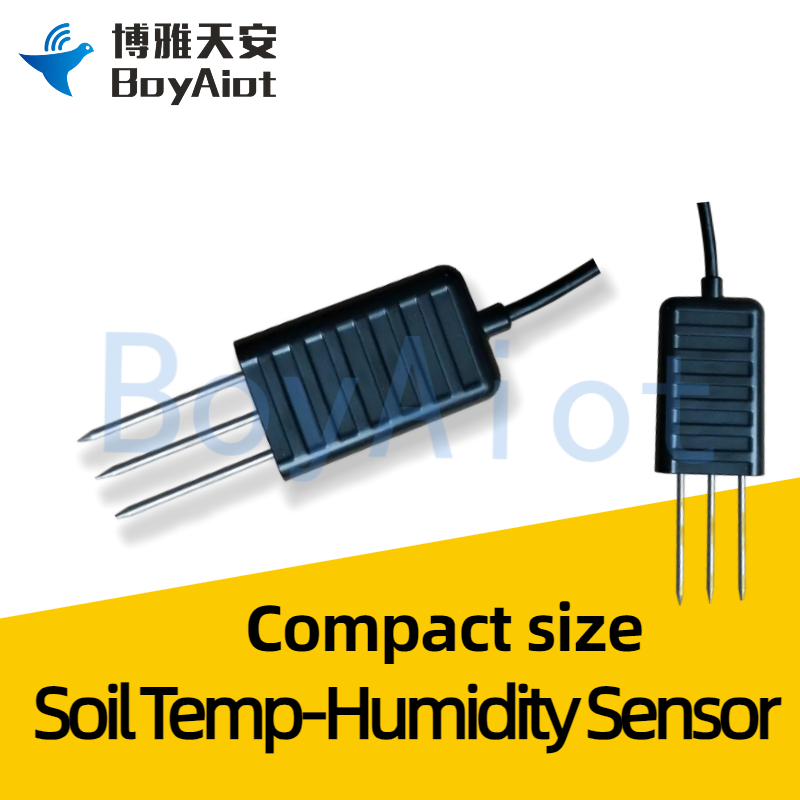

BOY-SO06 Soil Temperature Humidity Sensor

BOY-SO06 Soil Temperature Humidity Sensor

Product features:

1.  Compact size design, easy to carry, simple installation, operation and maintenance;

2.  Good sealing, can be buried in different depths of soil for a long time;

3.  High measurement accuracy, reliable performance; Fast response speed and high data transmission efficiency.

Cellphone(Whatsapp/Wechat):
Mr. Lin: +86 13960777235
 technical consultation

▋ Product Description

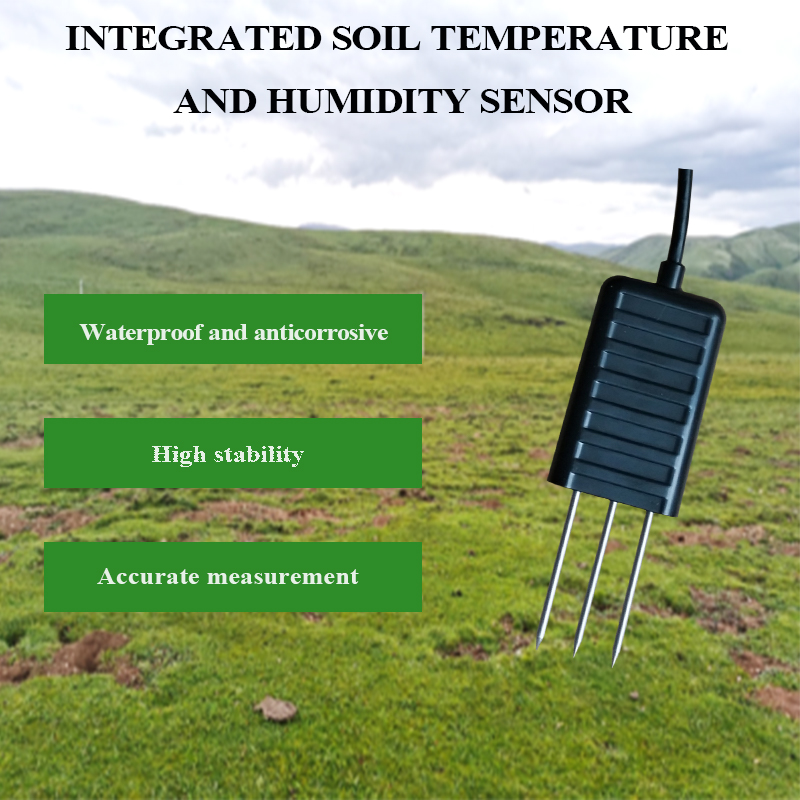

        BOY-SO06  Integrated soil temperature and humidity sensor has stable performance and high sensitivity, and can measure soil temperature and soil moisture simultaneously. By measuring the dielectric constant of soil, the true water content of various soils can be directly and stably reflected. The soil moisture sensor can measure the volume percentage of soil moisture and is a soil moisture measurement method that meets the current international standards. It is suitable for soil moisture monitoring, scientific experiment, agricultural irrigation, greenhouse, flowers and vegetables, grassland and pasture, soil rapid measurement, plant culture and other occasions.




▋ Product Parameter


Parameter
Description
Temperature measurement range
-50~100℃
Humidity measurement range
0-100%RH
Power supply voltage
DC12V
Signal output
RS485, Modbus protocol
Measurement principle
Soil moisture FDR method
Protection level
IP68 immersed in water can be used for a long time
Operating environment
-40~85 ° C
Probe material
Anti-corrosion special electrode
Sealing material
Black flame retardant epoxy resin
Installation mode
Fully embedded or probe fully inserted into the measured medium
Default cable length
5 meters, cable length can be customized according to requirements
Connection mode
Pre-installed cord end terminal
Dimensions
45*15*135mm
Electrode length
Electrode length

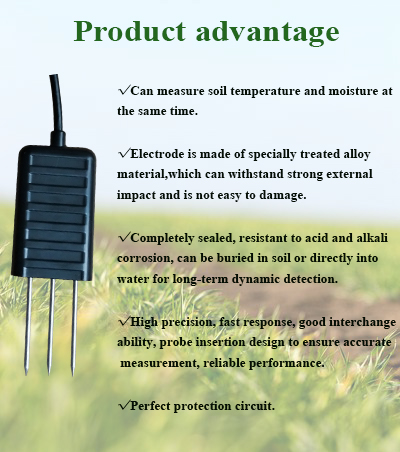

▋ Product Characteristics

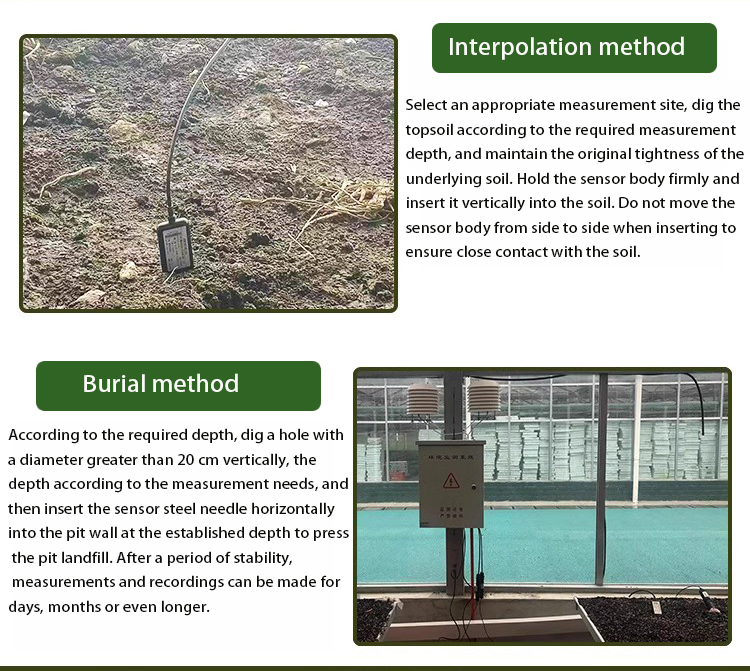

▋ Installation Method



▋ Application



▋ FAQ

1. The steel needle of the sensor is completely inserted into the soil under test. Do not shake the sensor during insertion to avoid affecting the sensor probe;

2. The sensor can be used in multi-layer observation to establish soil moisture monitoring stations;

3. When there is a hard substance in the soil, please re-select the measured point to prevent damage to the sensor probe;

4. Do not connect the probe into hard soil to avoid damage to the probe; When measuring, the measured soil density should be as uniform as possible;

5. Do not pull the cable directly when removing the sensor from the soil. After use, clean and dry the probe to keep it clean;
