BOY-RTU-307D 8AI &8DI &8DO Combination Module

BOY-RTU-307D 8AI &8DI &8DO Combination Module

Product features:

1.  Strong versatility, support access to PLC, configuration software, standard modbus protocol.

2.  High reliability, design photoelectric isolation, anti-interference lightning protection.

Cellphone(Whatsapp/Wechat):
Mr. Lin: +86 13960777235
 technical consultation

▋ Product Description

         BOY-RTU-307D supports PLC; Support Kingview, Force control, MCGS and other configuration software; Support RS232, RS485 interface, Modbus protocol touch screen, text screen; Supports all standard Modbus device online communication.



▋ Product Parameter


Parameter
Description
Serial
1 group RS232 , 1 group RS485, 8 group AI，8 group DI，8 group DO
Power supply
DC 7~35V
Power Dissipation
2W
Pilot lamp
19  indicator lights
CPU
32-bit ATMEL 72MHZ
Channel isolation
2500V Lightning protection, ESD, Overvoltage, Overcurrent protection
Protection level
 IP20
Shell material
ABS engineering plastics
Weight
300±5g
Size
155*95*39mm
Operating temperature
-40℃~+85℃

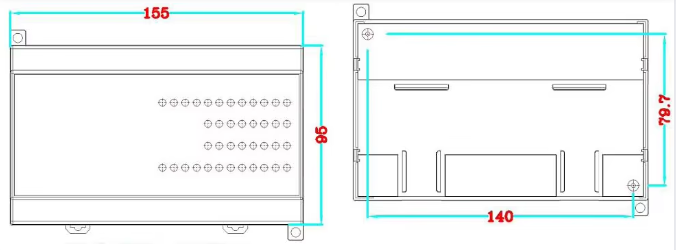

▋ Product Size


▋ Measurement Method

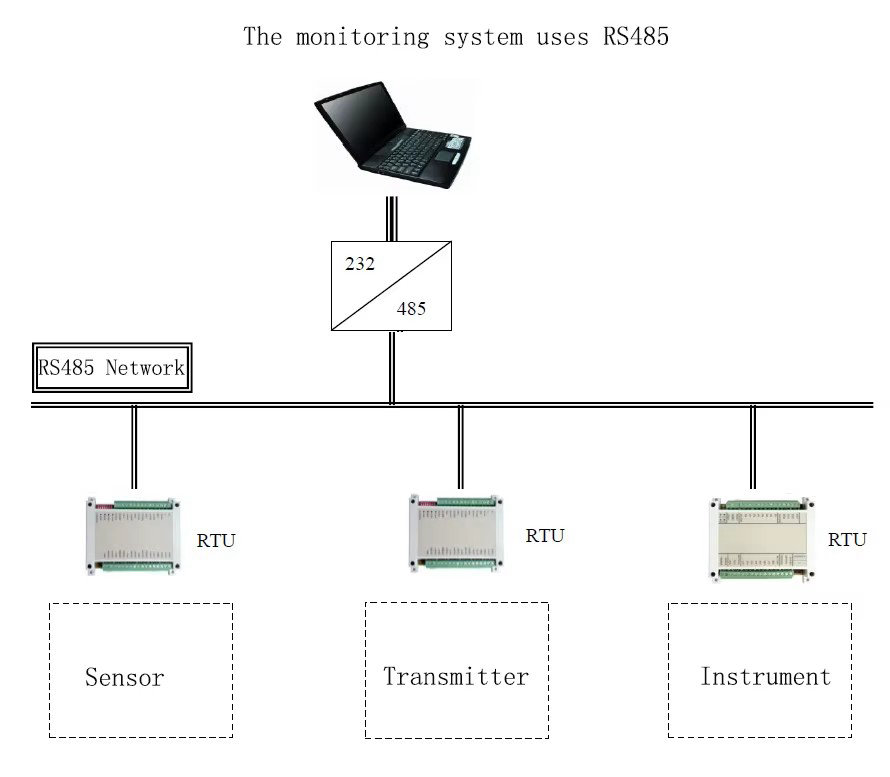

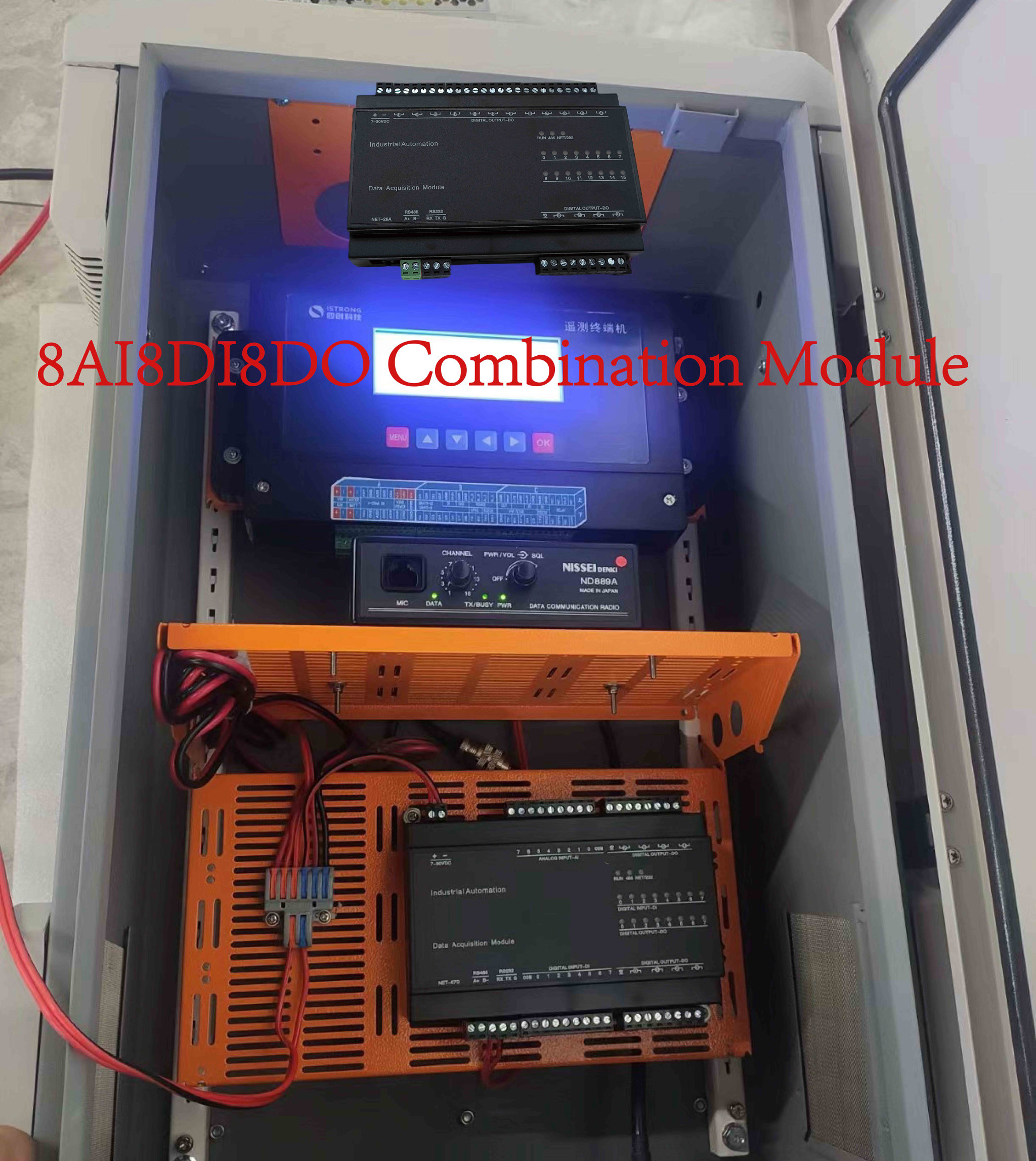

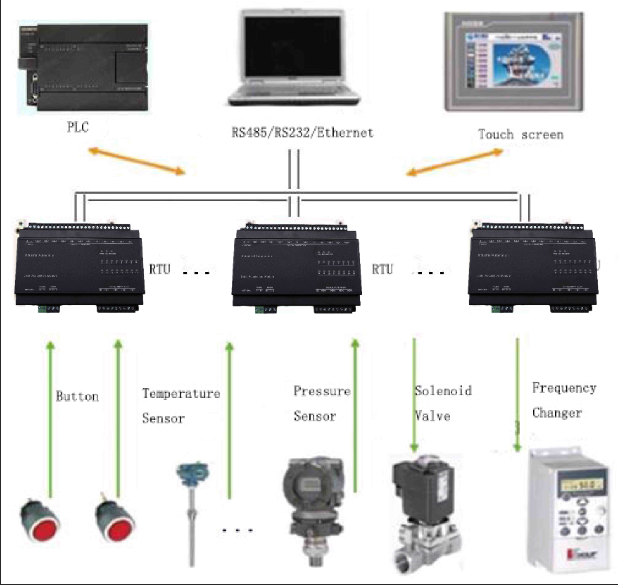

▋ Application

        The equipment is widely used in building, HVAC, fire, water supply, petrochemical, environmental protection and other industries, and is adopted by most system integrators and automation companies and research institutes, with a high character ratio, stable and reliable.
